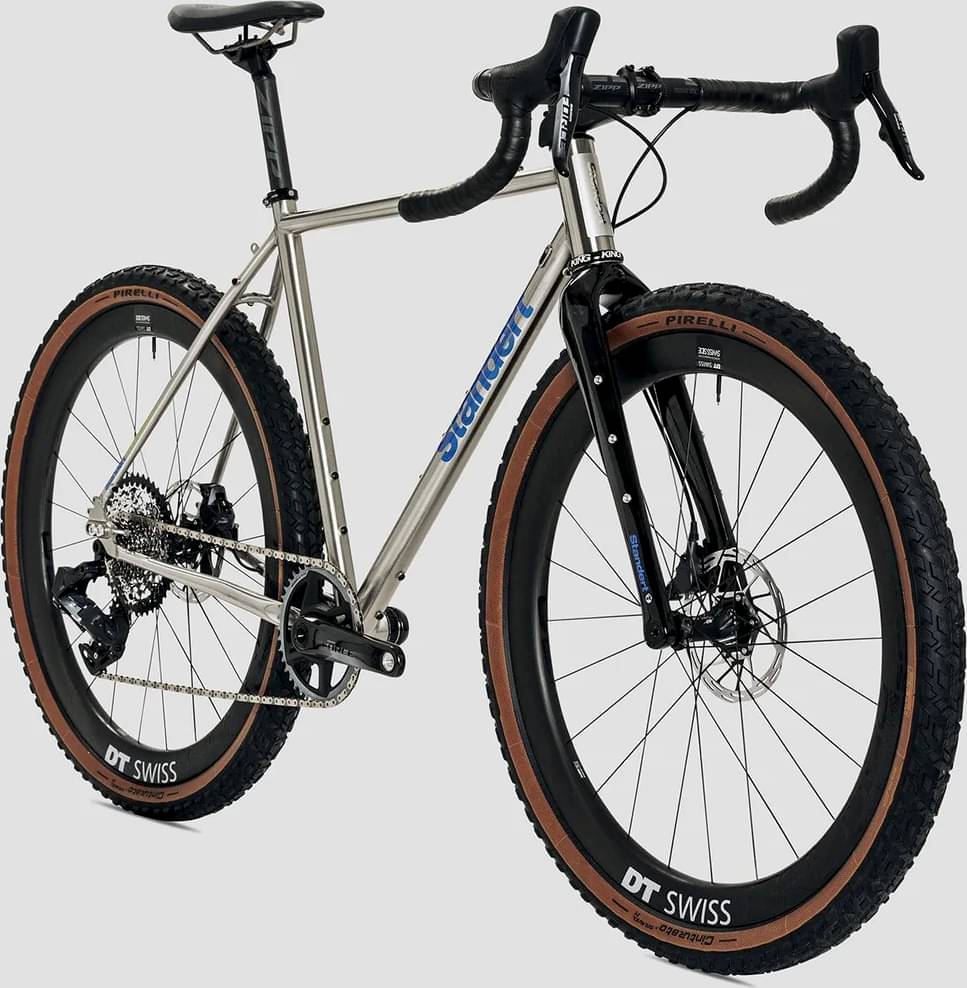

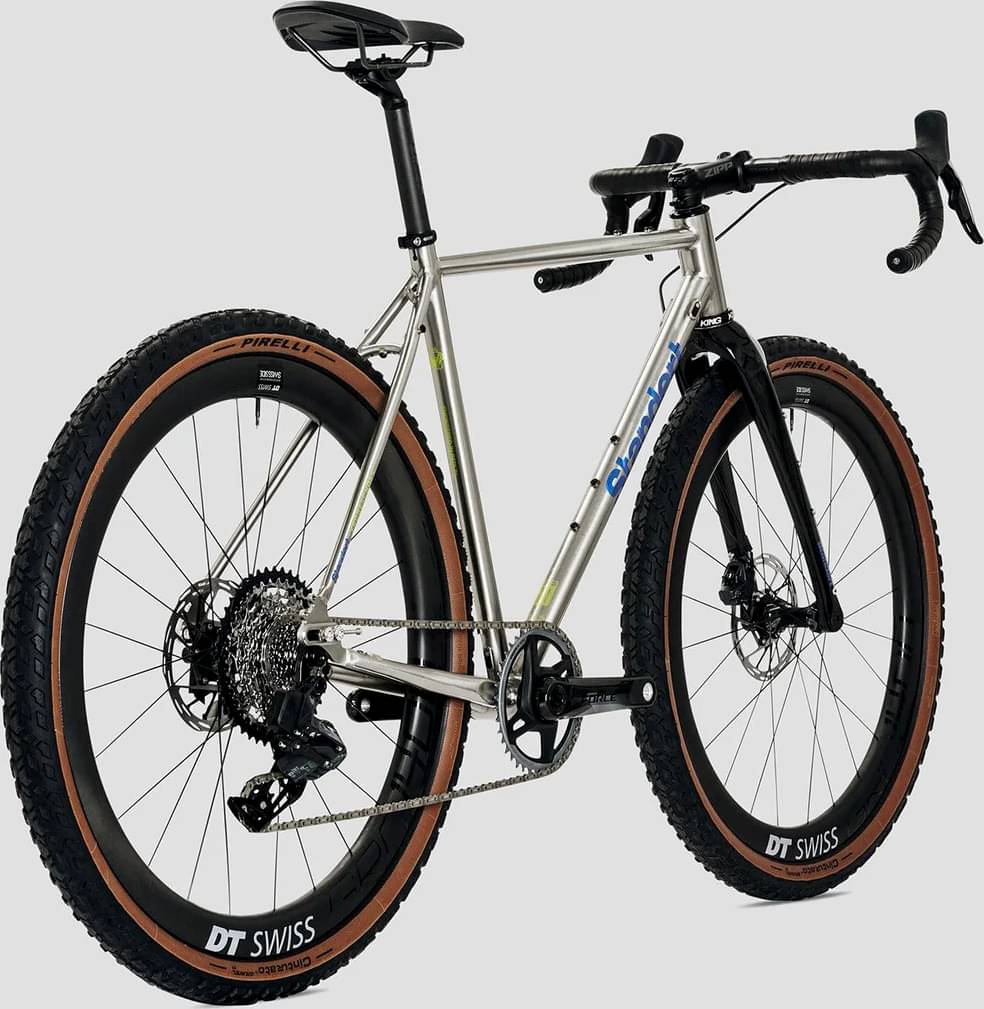

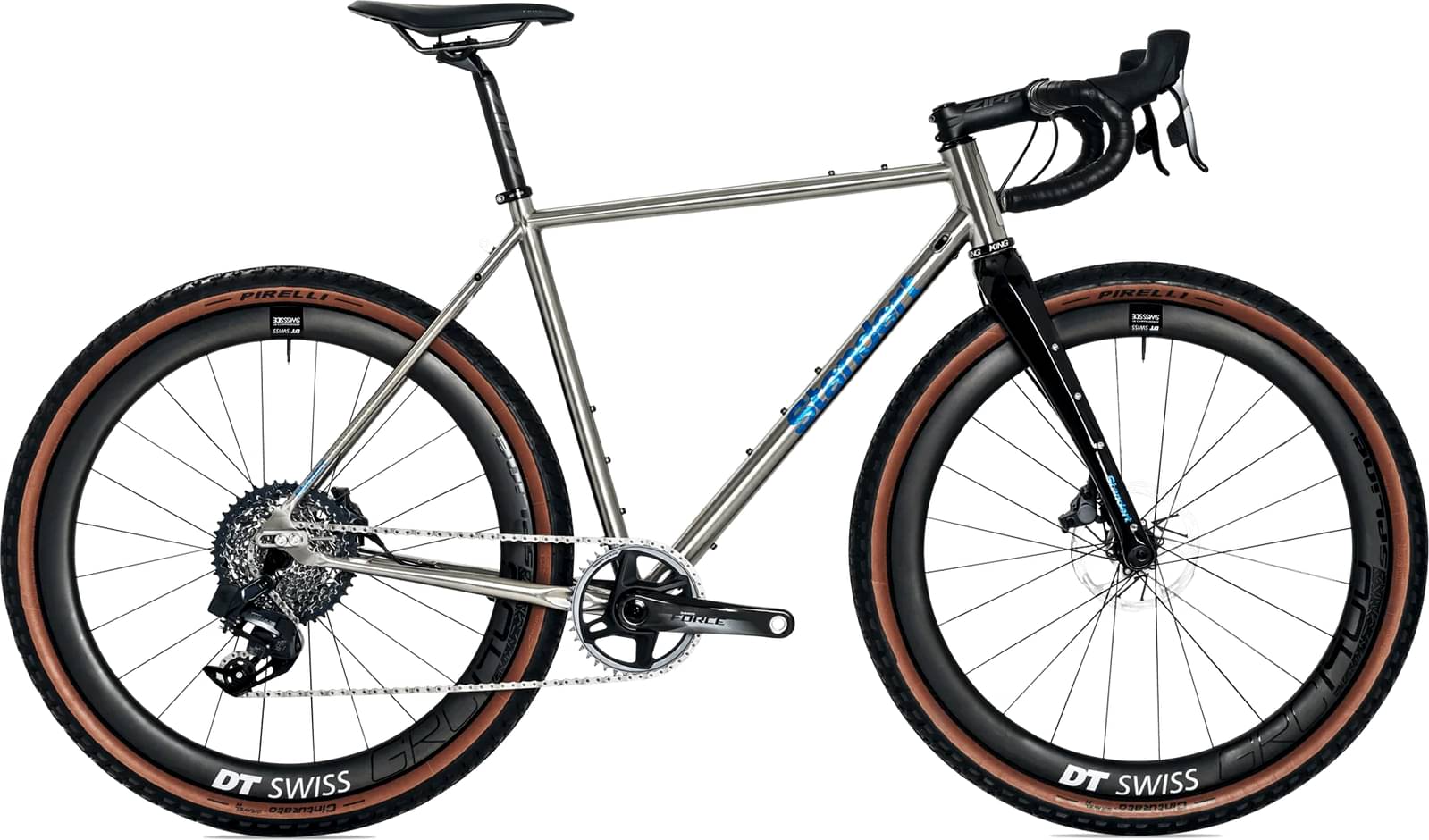

Standert Erdgeschoss Stainless Rawkim Shimano GRX 810 2×11 2024
2024 Road
Estimate price |
4,373$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
150cm - 163cm
50cm
158cm - 170cm
52cm
166cm - 177cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 192cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Erdgeschoss Stainless
Suspension Fork
Columbus Cross+ carbon 1?"-1½
Drivetrain
Rear Derailleur
SRAM Rival 1 Long Cage
Front Derailleur
N/A
Cassette
SRAM Rival PG 1130 1042
Crank
SRAM Rival 1 42t
Bottom Bracket
First T47 DUB
Chain
SRAM Rival PC 1130
Wheels
Tires
Pirelli Cinturato Gravel M 650bx50 TAN | +€0.00
Brakes
Brakes
SRAM Rival 1
Cockpit
Stem
Zipp Service Course
Handlebar
Zipp Service Course
Headset
Chris King Inset 7
Seat
Saddle
Fizik Terra Argo X3
Seatpost
Zipp Service Course
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.388 mm | 1.404 mm | 1.427 mm | 1.453 mm | 1.495 mm | 1.533 mm |
| Stack | 519 mm | 529 mm | 539 mm | 551 mm | 568 mm | 589 mm | 610 mm |
| Reach | 373 mm | 381 mm | 384 mm | 386 mm | 391 mm | 394 mm | 398 mm |
| Top Tube Length | 500 mm | 520 mm | 530 mm | 545 mm | 560 mm | 575 mm | 585 mm |
| Seat Tube Angle | 76.5 ° | 75.5 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.25 ° | 71.25 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 89 mm | 100 mm | 110 mm | 122 mm | 138 mm | 160 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 996 mm | 1008 mm | 1012 mm | 1018 mm | 1024 mm | 1034 mm | 1039 mm |
| Standover Height | 746 mm | 760 mm | 774 mm | 789 mm | 805 mm | 826 mm | 846 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 150 cm | 158 cm | 166 cm | 170 cm | 175 cm | 182 cm | 188 cm |
| Rider Max Height | 163 cm | 170 cm | 177 cm | 180 cm | 185 cm | 192 cm | 198 cm |
