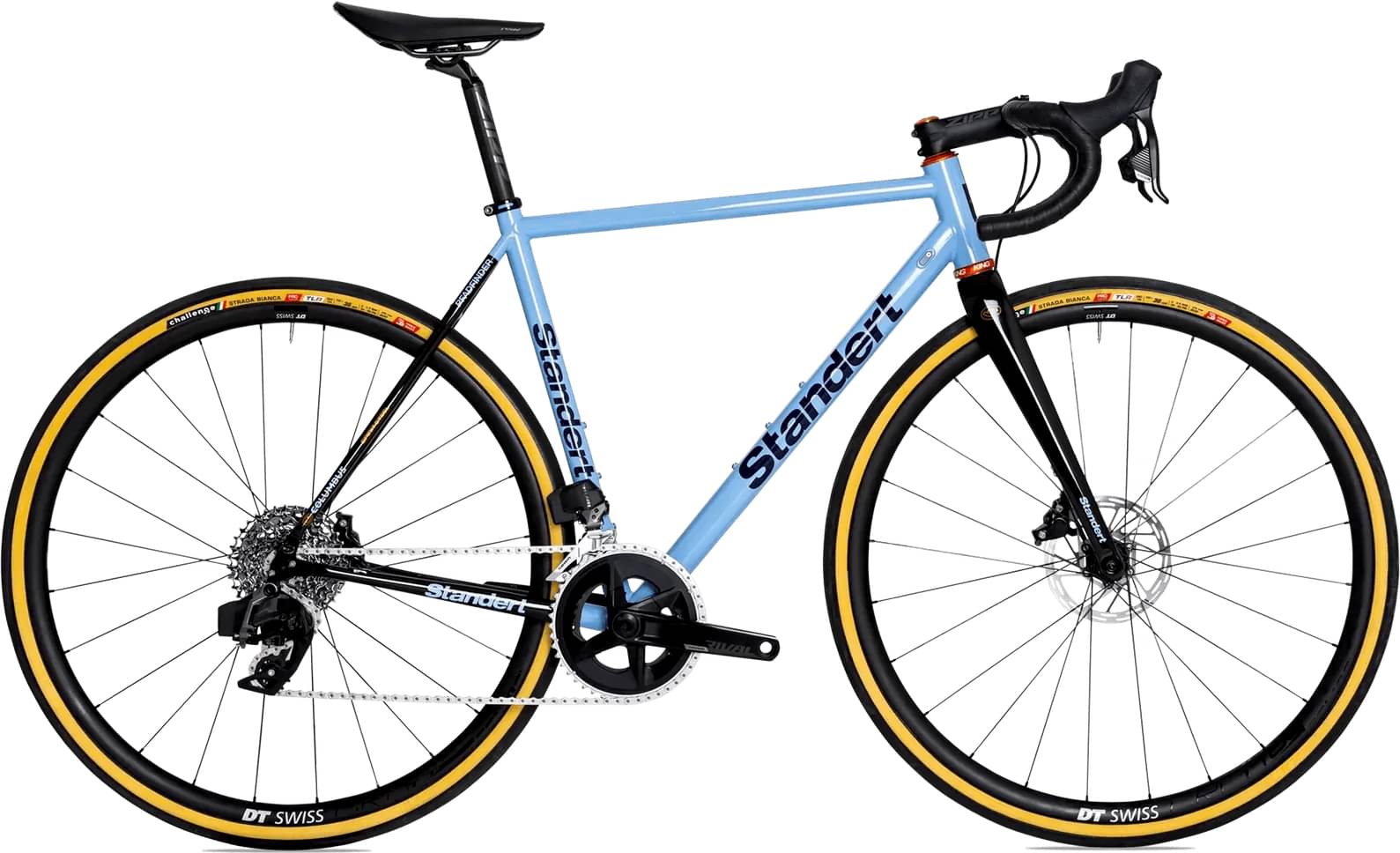

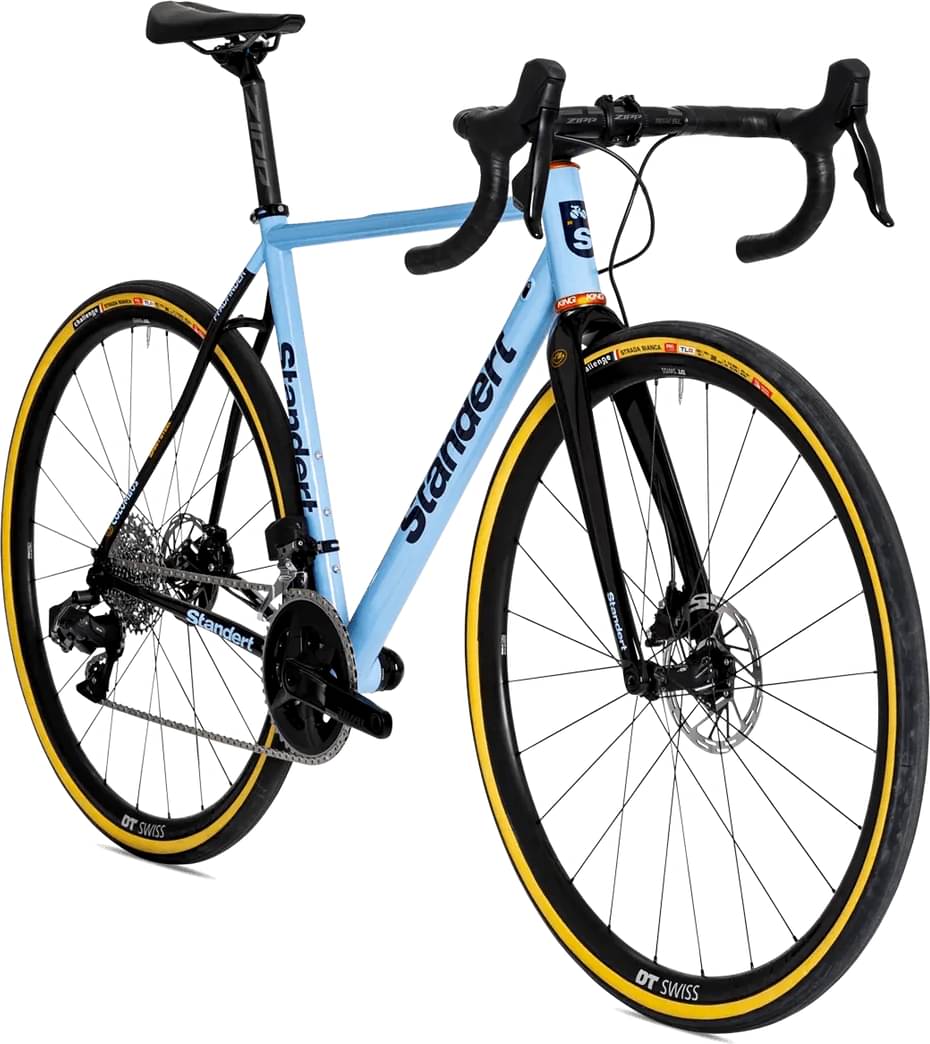

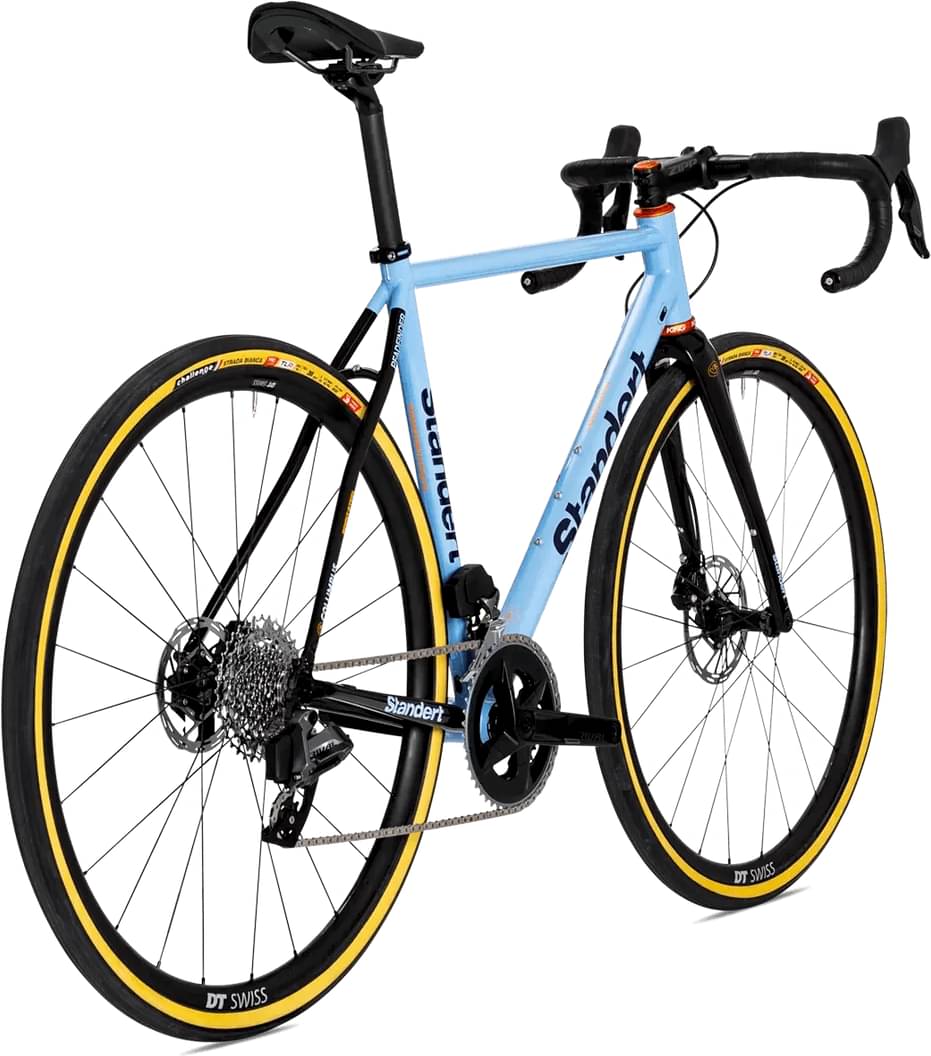

Standert Pfadfinder LTD IV Sram Rival AXS Etap POWERMETER 2024
2024 Road
Estimate price |
6,078$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
150cm - 163cm
50cm
158cm - 170cm
52cm
166cm - 177cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 192cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Pfadfinder
Suspension Fork
Columbus Futura Gravel 1 1/8" - 1 1/4" tapered full carbon
Drivetrain
Rear Derailleur
SRAM Rival AXS
Front Derailleur
SRAM Rival AXS
Cassette
SRAM Rival XG 1250 1036
Crank
SRAM Rival AXS Quarq Power Meter
Bottom Bracket
First T47
Chain
SRAM Rival AXS Flattop
Wheels
Rims
DT Swiss ER 1400 DICUT® (21mm Deep) XDR | +€0.00
Tires
Challenge Strada Bianca TLR 700x36
Brakes
Brakes
SRAM Rival AXS
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course SL
Headset
Chris King Inset 8
Seat
Saddle
Fizik Tempo Argo R3 150mm | +€0.00
Seatpost
Zipp Service Course SL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.432 mm | 1.44 mm | 1.449 mm | 1.474 mm | 1.475 mm | 1.472 mm |
| Stack | 520 mm | 530 mm | 540 mm | 555 mm | 575 mm | 590 mm | 605 mm |
| Reach | 368 mm | 370 mm | 375 mm | 383 mm | 390 mm | 400 mm | 411 mm |
| Top Tube Length | 500 mm | 514 mm | 526 mm | 543 mm | 561 mm | 575 mm | 590 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 495 mm | 510 mm | 530 mm | 550 mm | 570 mm | 585 mm |
| Head Tube Angle | 71.25 ° | 71.5 ° | 71.5 ° | 72.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 98 mm | 108 mm | 118 mm | 131 mm | 148 mm | 164 mm | 177 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 979 mm | 983 mm | 991 mm | 997 mm | 1000 mm | 1015 mm | 1030 mm |
| Standover Height | 743 mm | 758 mm | 767 mm | 789 mm | 808 mm | 819 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 158 cm | 166 cm | 170 cm | 175 cm | 182 cm | 188 cm |
| Rider Max Height | 163 cm | 170 cm | 177 cm | 180 cm | 185 cm | 192 cm | 198 cm |
