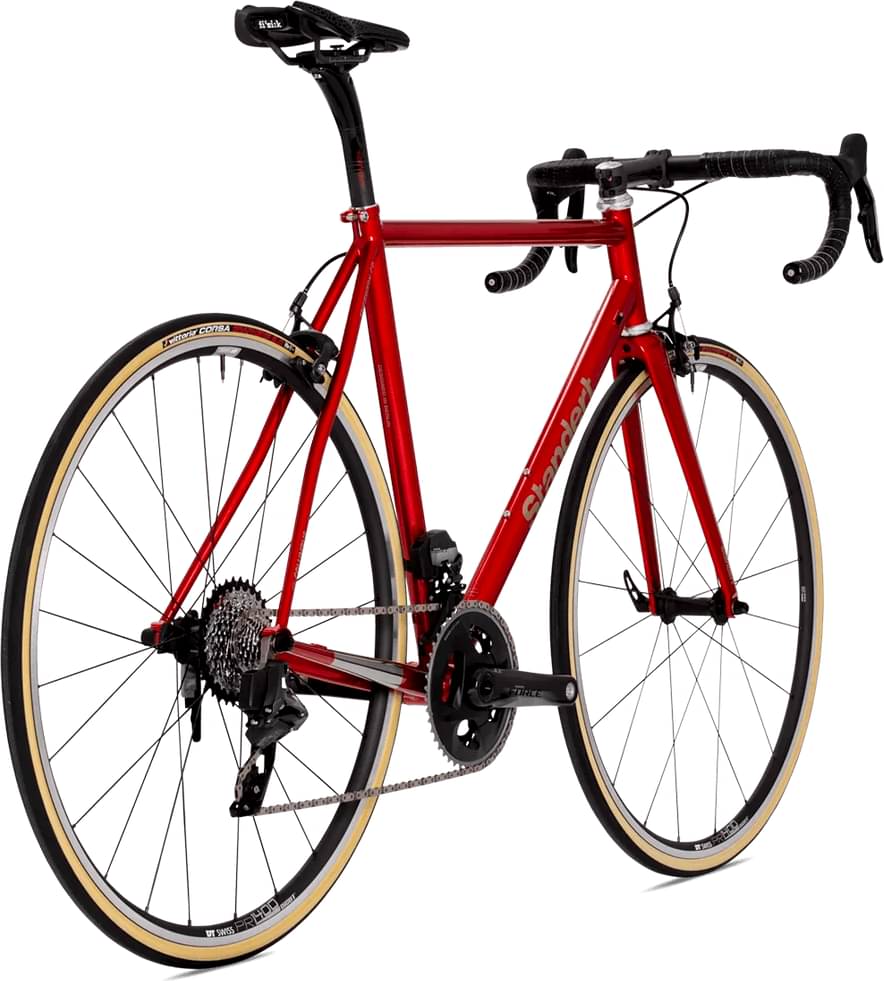

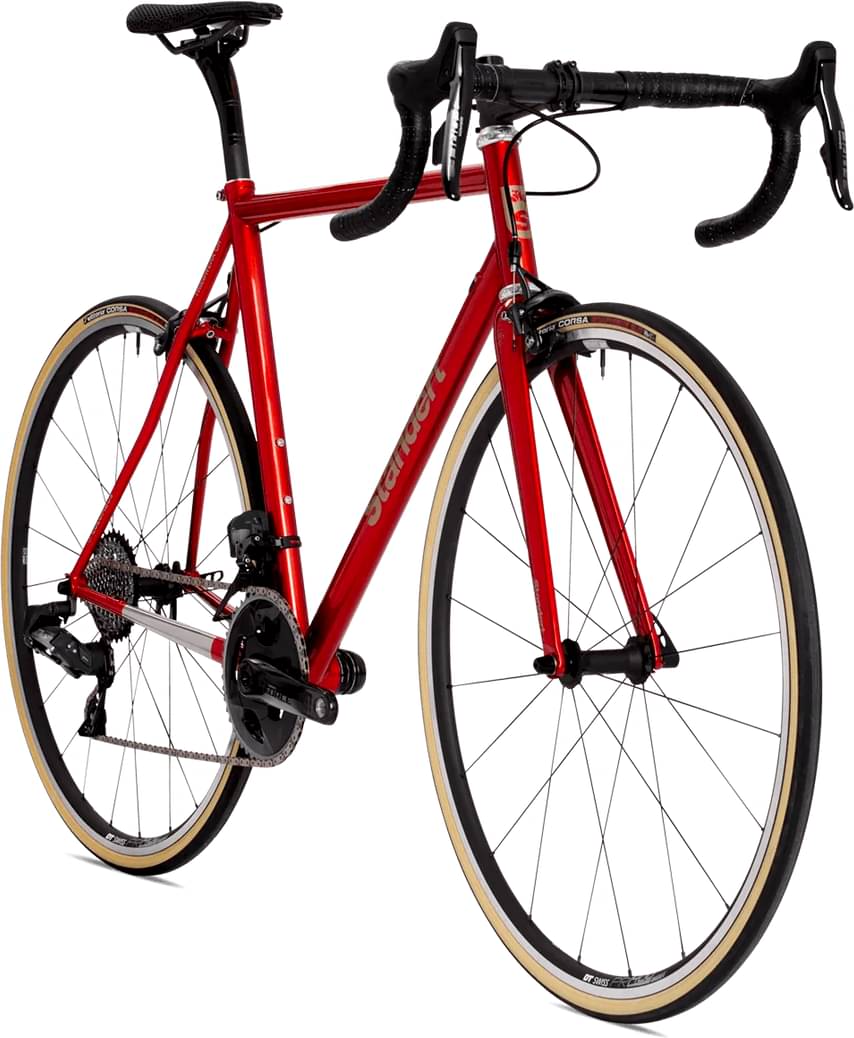

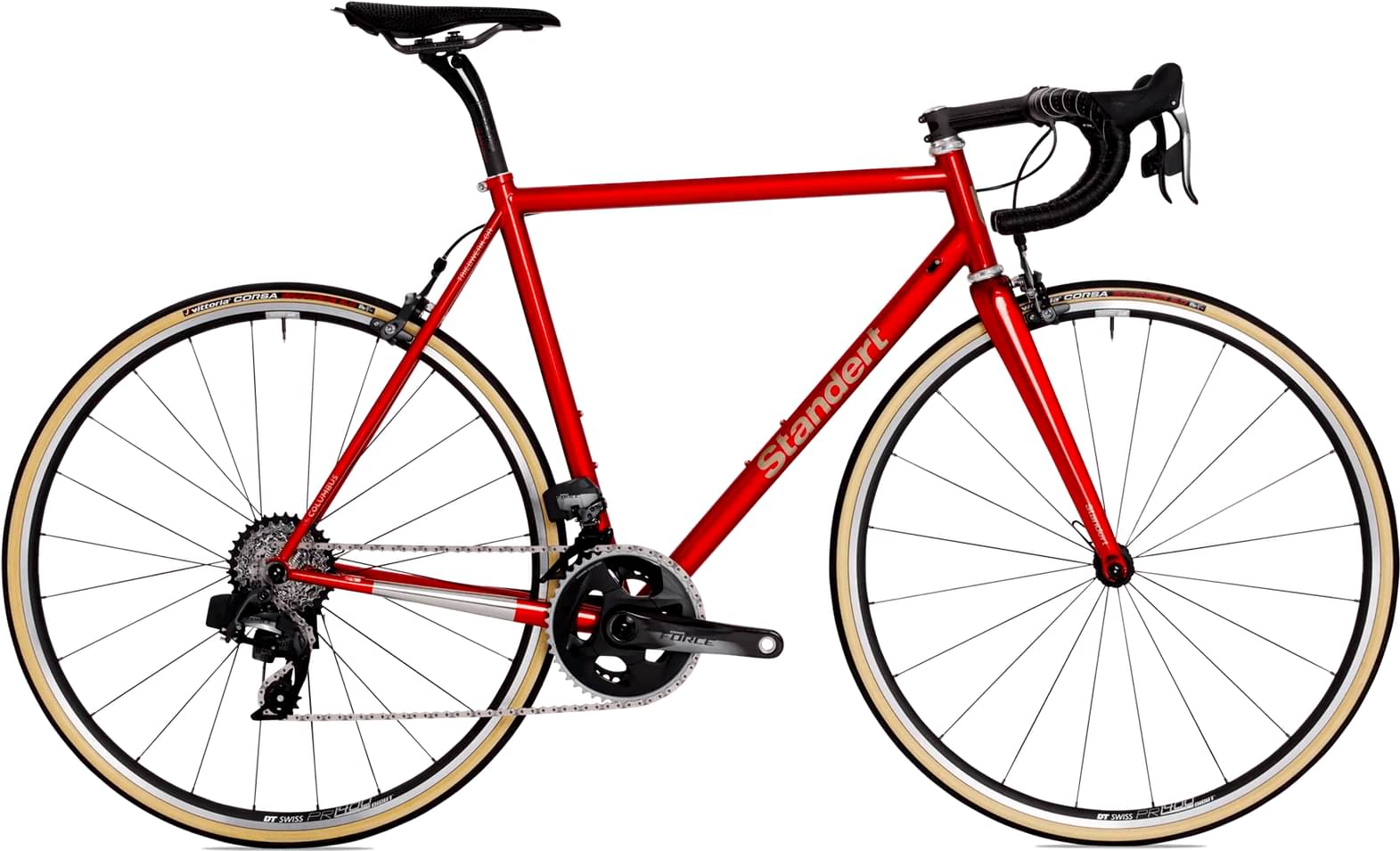

Standert Triebwerk CR Apero Sram Force eTap AXS 2024
2024 Road
Estimate price |
6,397$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Rim
Sizing
Recommended size guide.
52cm
160cm - 170cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
185cm - 195cm
60cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Triebwerk CR
Suspension Fork
Columbus Futura Caliper SL 1 1/8"
Drivetrain
Rear Derailleur
SRAM Force AXS eTap
Front Derailleur
SRAM Force AXS eTap
Shift Levers
SRAM Force AXS eTap
Cassette
SRAM Force AXS XG-1270 10-28
Crank
SRAM Force AXS 4633
Bottom Bracket
First T47 DUB
Chain
SRAM Force AXS Flattop
Wheels
Rims
DT Swiss PR 1400 Rim
Tires
Vittoria Corsa 25c
Brakes
Brakes
SRAM Force AXS
Cockpit
Stem
Deda Superleggero RS
Handlebar
Deda Superleggera RS
Headset
Chris King NoThreadSet 1 1/8"
Seat
Saddle
Fizik Antares Adaptive R1
Seatpost
Deda Superleggero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.407 mm | 1.405 mm | 1.425 mm | 1.428 mm | 1.441 mm | 1.456 mm |
| Stack | 517 mm | 529 mm | 534 mm | 553 mm | 567 mm | 582 mm | 597 mm |
| Reach | 368 mm | 376 mm | 380 mm | 388 mm | 397 mm | 404 mm | 410 mm |
| Top Tube Length | 492 mm | 508 mm | 525 mm | 542 mm | 560 mm | 570 mm | 582 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 510 mm | 535 mm | 555 mm | 570 mm | 585 mm | 600 mm |
| Head Tube Angle | 71.25 ° | 72 ° | 72 ° | 73 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 109 mm | 118 mm | 127 mm | 143 mm | 157 mm | 173 mm | 188 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 975 mm | 981 mm | 987 mm | 989 mm | 1001 mm | 1013 mm | 1023 mm |
| Standover Height | 746 mm | 761 mm | 777 mm | 801 mm | 815 mm | 829 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
