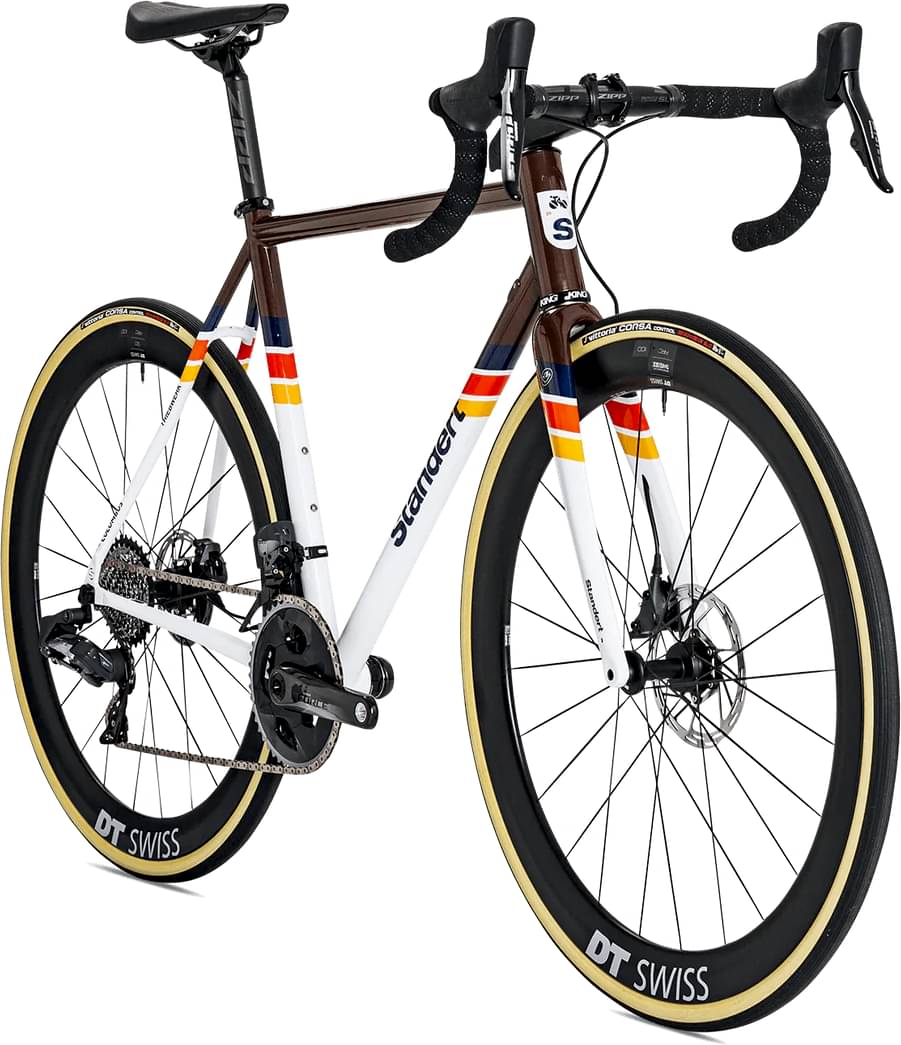

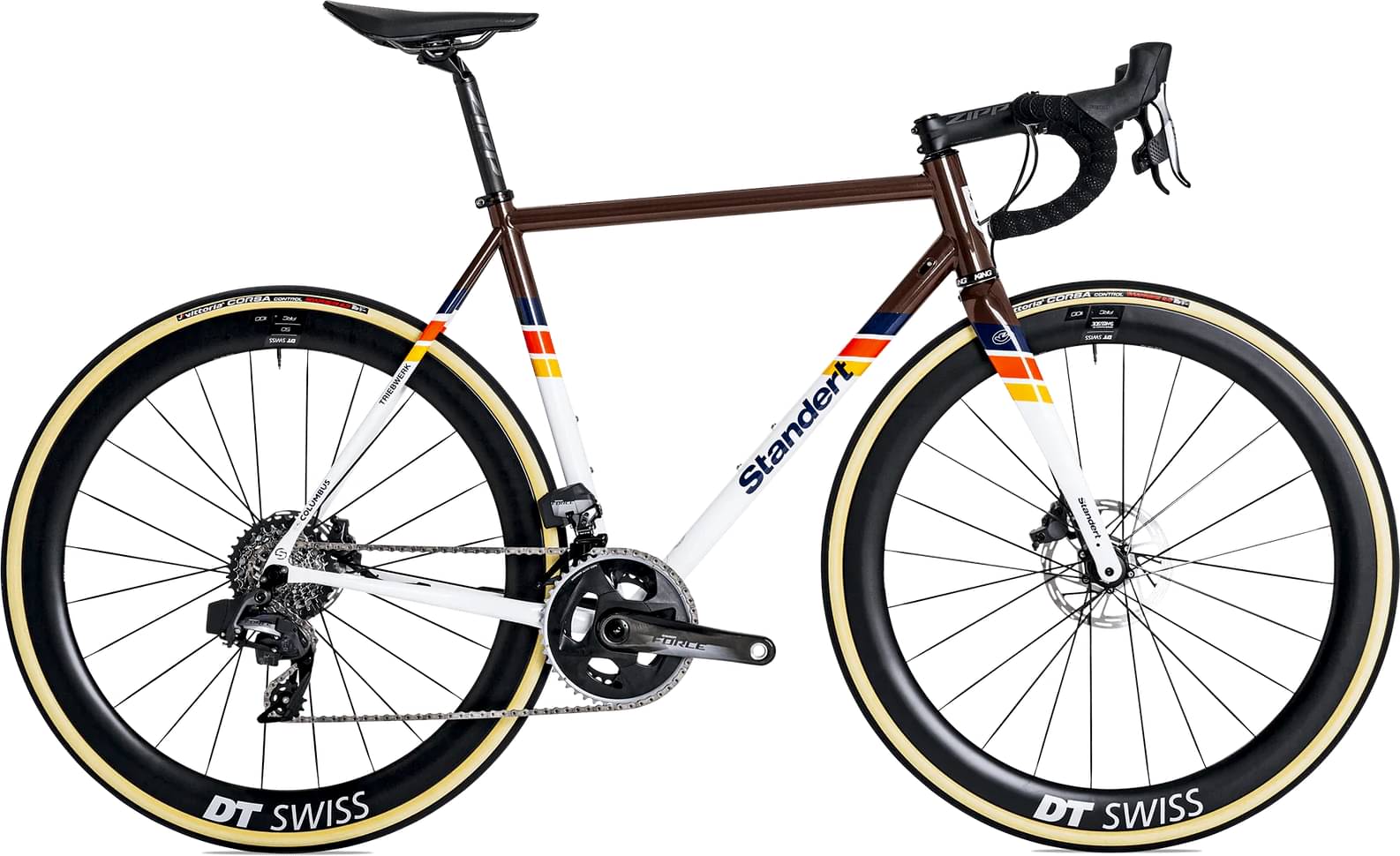

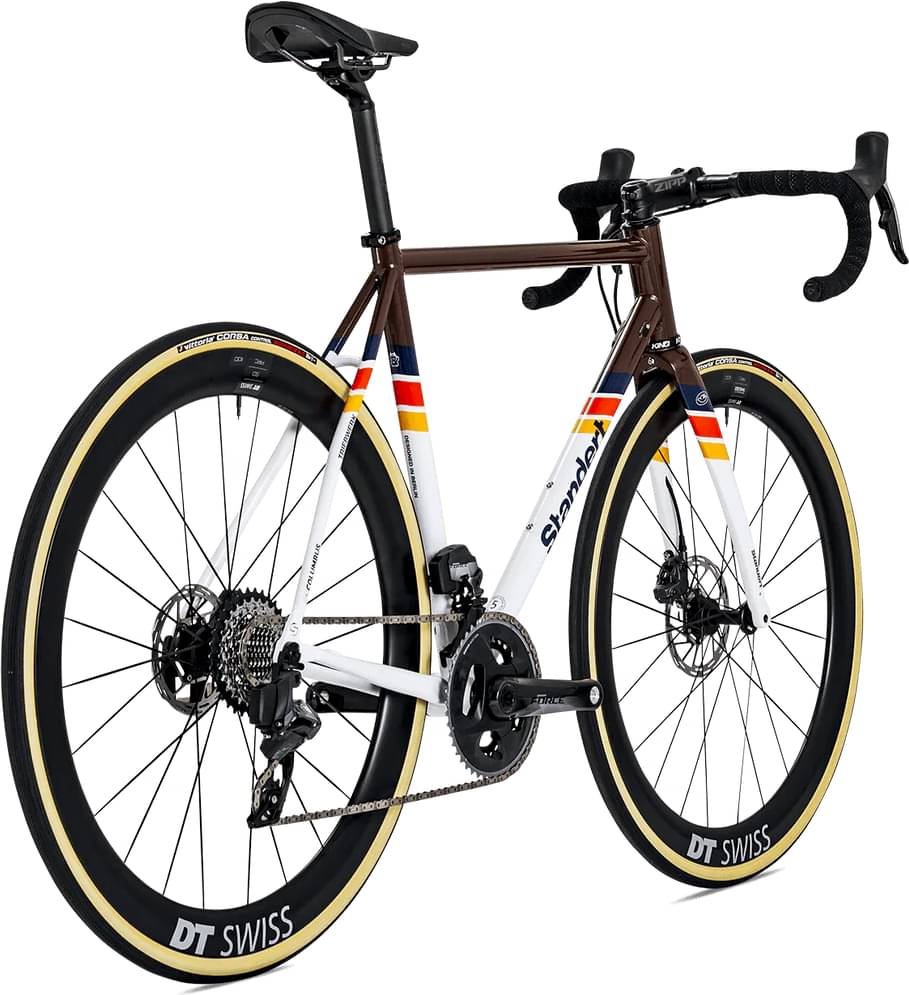

Standert Triebwerk DISC LTD Edition V Sram Force eTap AXS 2024
2024 Road
Estimate price |
5,932$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
150cm - 163cm
50cm
158cm - 170cm
52cm
166cm - 177cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 192cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Triebwerk Disc
Suspension Fork
Columbus Futura Disc 1 1/4"
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150
Front Derailleur
Shimano 105 Di2 R7150
Cassette
Shimamo R7100 1134
Crank
Shimano 105 R7100 5034
Bottom Bracket
First T47
Chain
Shimano R7100
Wheels
Rims
DT Swiss C 1800 (23mm Deep) | +€0.00
Tires
Schwalbe Pro One 28c | +€0.00
Brakes
Brakes
Shimano 105 Di2 R7170
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course SL-70 Ergo
Headset
Chris King Inset 8
Seat
Saddle
Fizik Tempo Argo R3 150mm | +€0.00
Seatpost
Zipp Service Course SL Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.413 mm | 1.421 mm | 1.434 mm | 1.443 mm | 1.455 mm | 1.463 mm |
| Stack | 520 mm | 530 mm | 540 mm | 555 mm | 570 mm | 585 mm | 600 mm |
| Reach | 370 mm | 375 mm | 380 mm | 387 mm | 395 mm | 402 mm | 410 mm |
| Top Tube Length | 498 mm | 509 mm | 526 mm | 542 mm | 559 mm | 570 mm | 582 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 490 mm | 515 mm | 540 mm | 555 mm | 570 mm | 575 mm |
| Head Tube Angle | 71.25 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 111 mm | 119 mm | 127 mm | 142 mm | 156 mm | 172 mm | 188 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 974 mm | 976 mm | 979 mm | 986 mm | 996 mm | 1008 mm | 1021 mm |
| Standover Height | 744 mm | 753 mm | 770 mm | 784 mm | 803 mm | 818 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 158 cm | 166 cm | 170 cm | 175 cm | 182 cm | 188 cm |
| Rider Max Height | 163 cm | 170 cm | 177 cm | 180 cm | 185 cm | 192 cm | 198 cm |
