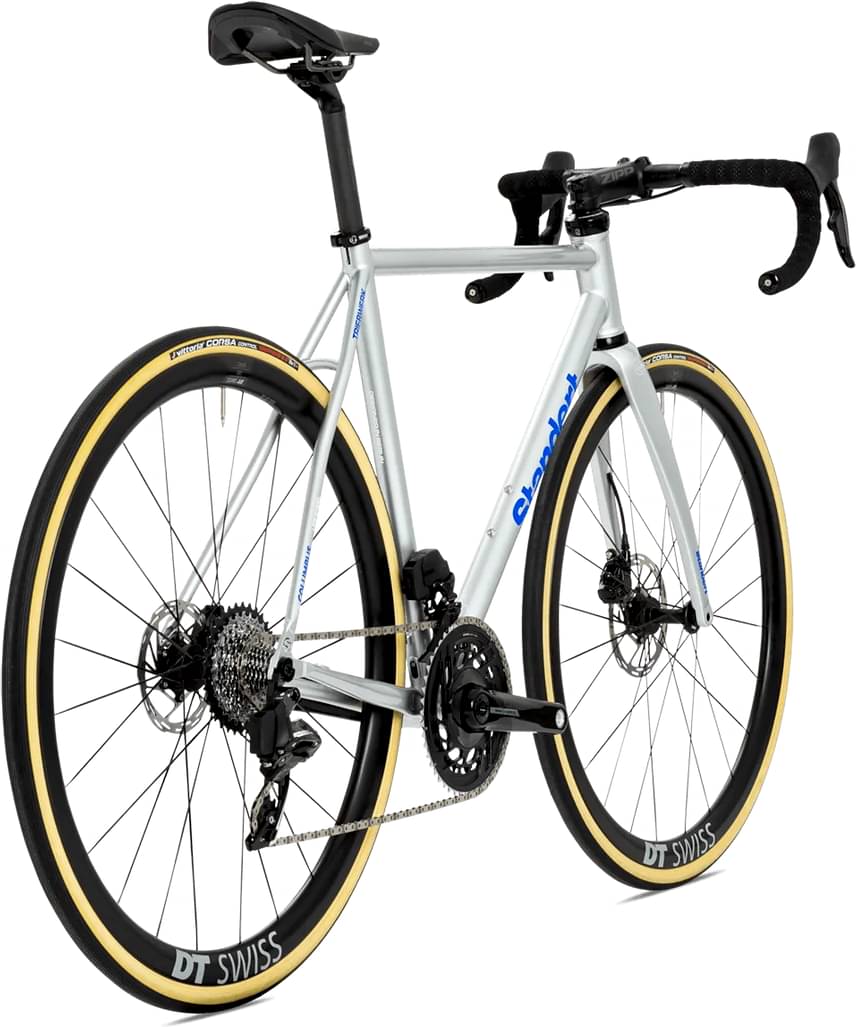

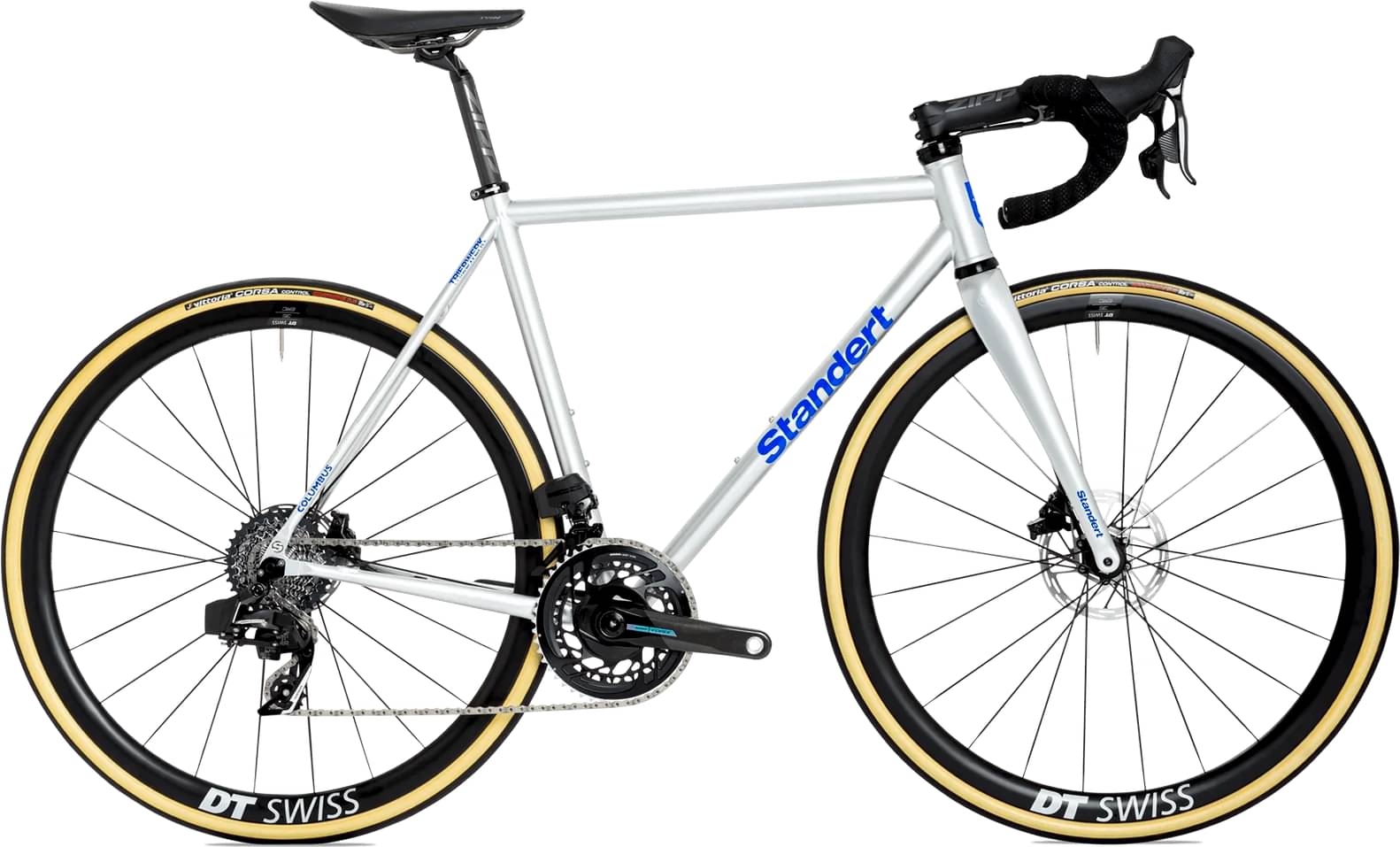

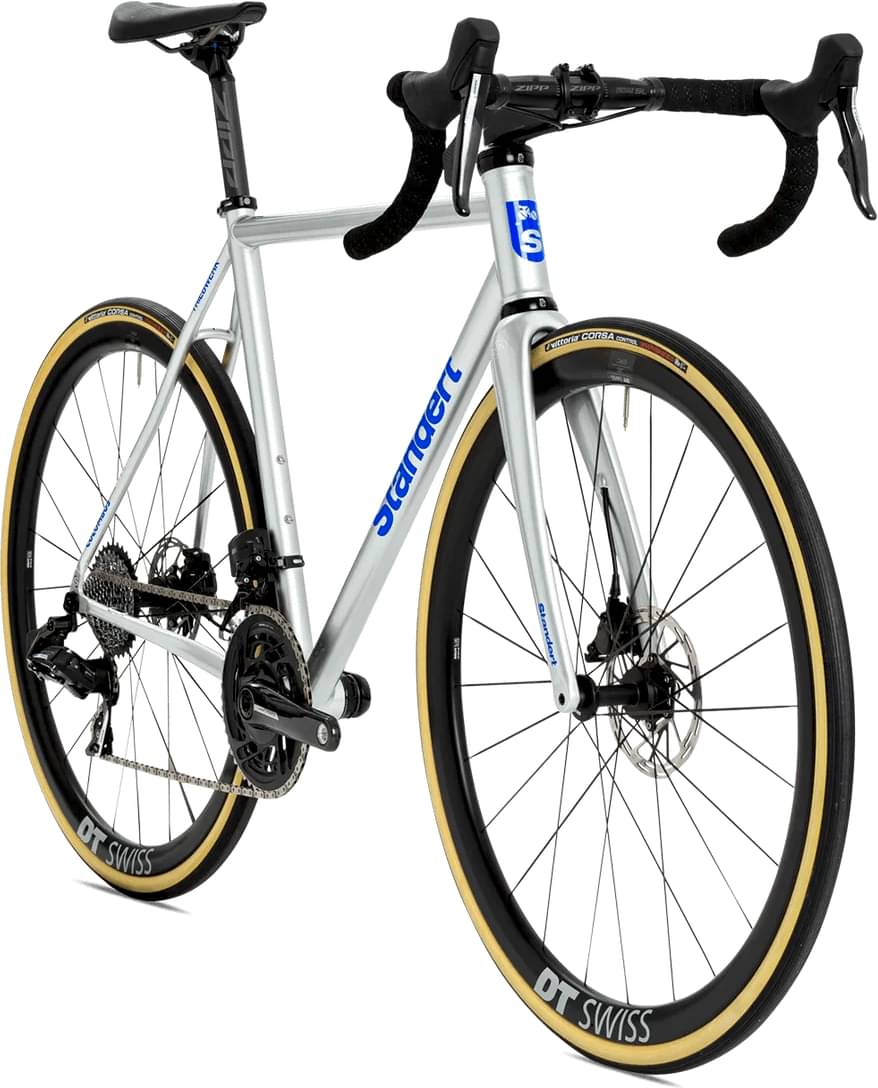

Standert Triebwerk Silver Lily Shimano Dura Ace Di2 2025
2025 Road
Estimate price |
5,641$
Weight | 9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
48cm
150cm - 163cm
50cm
158cm - 170cm
52cm
166cm - 177cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 192cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Triebwerk - Columbus steel tubing
Suspension Fork
Columbus Futura Disc 1 1/4"
Drivetrain
Rear Derailleur
Shimano Ultegra R8150
Front Derailleur
Shimano Ultegra R8150
Cassette
Shimano R8100 11-34
Crank
Shimano Ultegra R8100 50-34
Bottom Bracket
Standert T47
Chain
Shimano CN8100
Wheels
Tires
Challenge Strada Pro Clincher 30c Tan Wall | +€0.00
Brakes
Brakes
Shimano Ultegra R8170
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course SL-70 Ergo
Headset
Standert Integrated
Seat
Saddle
Fizik Tempo Argo R3 150mm | +€0.00
Seatpost
Zipp Service Course SL Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.339 mm | 1.348 mm | 1.36 mm | 1.387 mm | 1.397 mm | 1.416 mm | 1.425 mm |
| Stack | 509 mm | 519 mm | 529 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Reach | 380 mm | 385 mm | 389 mm | 393 mm | 401 mm | 406 mm | 414 mm |
| Top Tube Length | 502 mm | 514 mm | 530 mm | 544 mm | 560 mm | 570 mm | 582 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 490 mm | 515 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Head Tube Angle | 71.25 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 97 mm | 105 mm | 113 mm | 128 mm | 142 mm | 158 mm | 174 mm |
| Chainstay Length | 405 mm | 405 mm | 408 mm | 410 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 976 mm | 977 mm | 983 mm | 989 mm | 997 mm | 1009 mm | 1021 mm |
| Standover Height | 737 mm | 747 mm | 763 mm | 782 mm | 797 mm | 811 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 158 cm | 166 cm | 170 cm | 175 cm | 182 cm | 188 cm |
| Rider Max Height | 163 cm | 170 cm | 177 cm | 180 cm | 185 cm | 192 cm | 198 cm |
