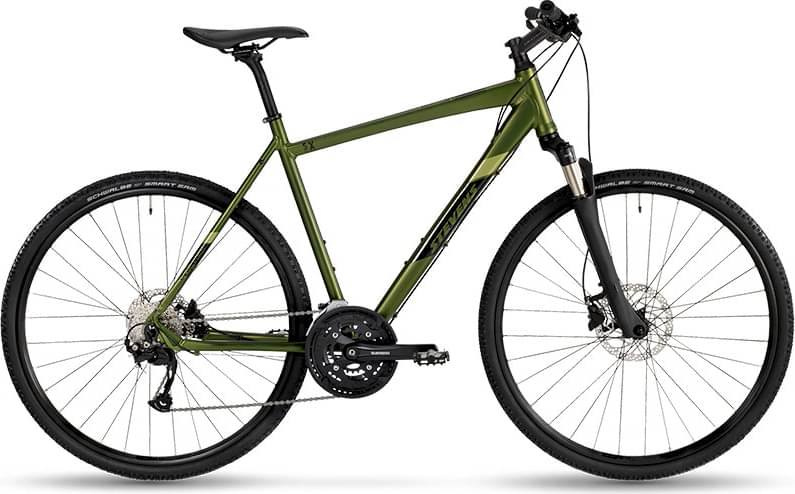

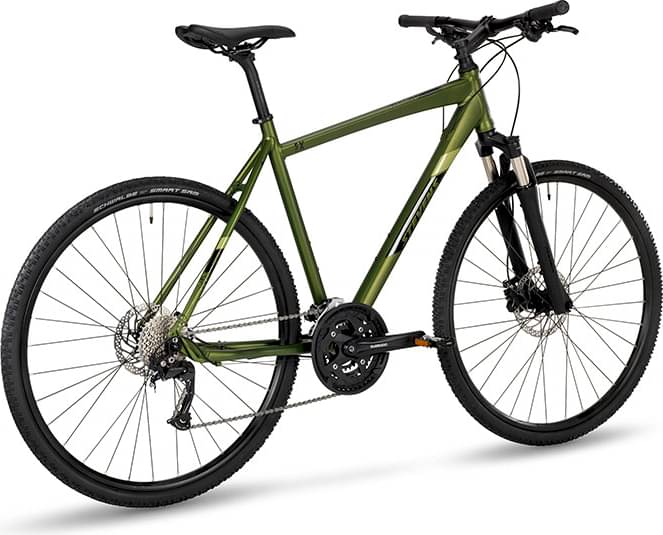

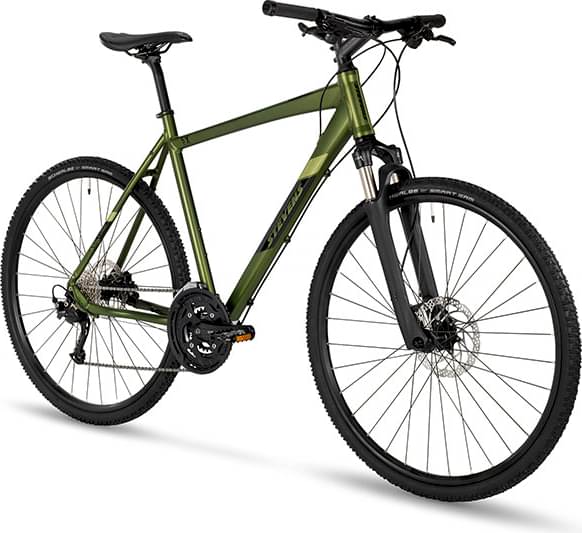

Stevens 5X HT 2025
2025 Urban
Estimate price |
988$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Alivio, SunRace M9 -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Sunrace RDM91, 8/9-speed, Total capacity: 40 T
Front Derailleur
Sunrace FDM924, 3-speed
Shift Levers
Sunrace DLM903, 9-speed
Cassette
Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-19-21-24-28-32 T
Crank
Shimano FC-T4010-8, 48-36-26 T, BB type: BSA 73 mm / Octalink (axle length: 126 mm), Chainguard
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG53
Pedals
ATB Alu Comp Reflex
Wheels
Front Hub
Formula CL-25, Axle: QR9x100 mm
Rear Hub
Shimano FH-M3050, Axle: QR10x135 mm
Rims
Oxygen RM-M19, ETRTO: 19 x 622
Tires
Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard
Brakes
Brakes
Tektro HD-T275, Hydraulic disc brake
Brake Levers
Tektro HD-T275, 3 finger
Cockpit
Stem
Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen Driver, Width: 640 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.534 mm | 1.552 mm | 1.589 mm | 1.628 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 620 mm | 618 mm | 630 mm | 620 mm | 620 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 79 mm | 75 mm | 86 mm | 94 mm |
| Stack | 565 mm | 595 mm | 616 mm | 637 mm | 656 mm |
| Reach | 394 mm | 388 mm | 397 mm | 401 mm | 403 mm |
| Top Tube Length | 567 mm | 577 mm | 590 mm | 605 mm | 615 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 421 mm | 456 mm | 487 mm | 517 mm | 547 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1059 mm | 1057 mm | 1069 mm | 1059 mm | 1059 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 757 mm | 794 mm | 819 mm | 845 mm | 870 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
