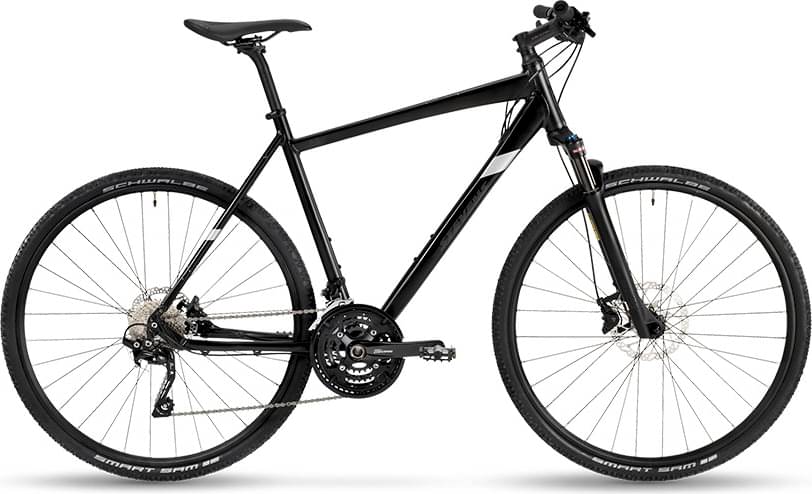

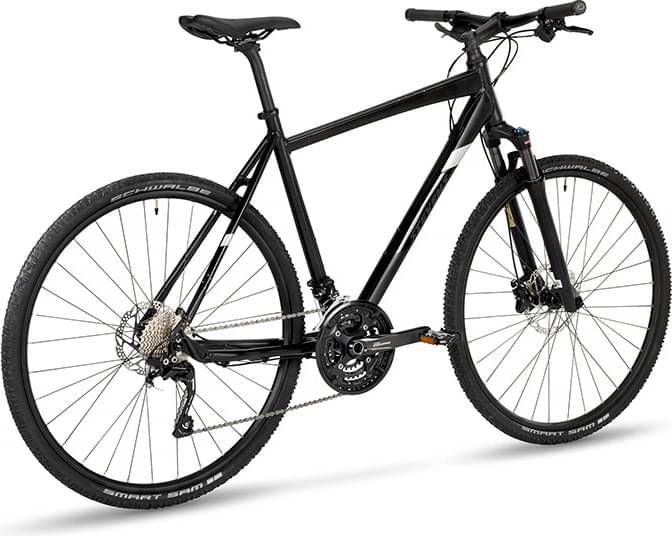

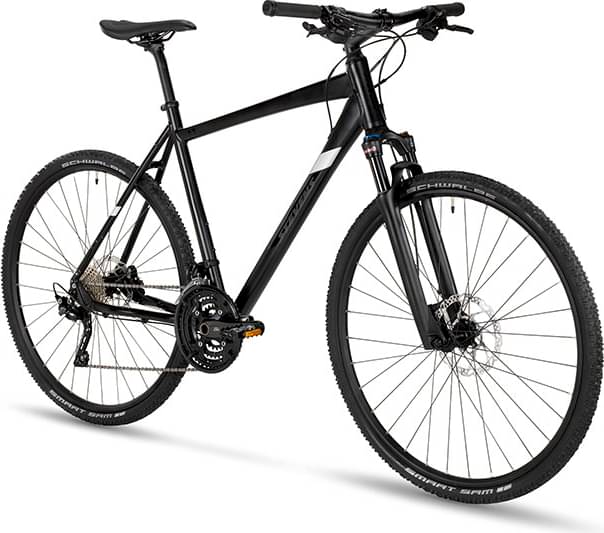

Stevens 6X HT 2025
2025 Urban
Estimate price |
1,162$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NRX D
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Fender + rack mounts
Suspension Fork
SR Suntour NRX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Trekking Shadow, RD-T6000-SGS, 10-speed, Total capacity: 47 T
Front Derailleur
Shimano Deore Trekking, FD-T6000-H3L, 3-speed
Shift Levers
Shimano Deore, SL-M6000, 3-speed
Cassette
Shimano CS-HG500, 10-speed, Combination: 11-12-14-16-18-20-22-25-28-32 T
Crank
STEVENS MPL-751, 48-36-26 T, BB type: BSA
Bottom Bracket
BSA, threaded
Chain
Shimano CN-HG54
Pedals
ATB Alu Comp Reflex
Wheels
Front Hub
Formula CL-25, Axle: QR9x100 mm
Rear Hub
Shimano FH-M3050, Axle: QR10x135 mm
Rims
Oxygen COMP-D A19, ETRTO: 19 x 622
Tires
Schwalbe Smart Sam Performance, Tire size: 42-622, ADDIX compound
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake, 2 pistons
Brake Levers
Shimano BL-MT402-3A
Cockpit
Stem
Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 6°
Handlebar
Oxygen Driver, Width: 640 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.526 mm | 1.545 mm | 1.586 mm | 1.632 mm | 1.626 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm | 301 mm | 301 mm |
| Front Center | 622 mm | 622 mm | 632 mm | 637 mm | 644 mm | 659 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 77 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Stack | 564 mm | 595 mm | 615 mm | 636 mm | 656 mm | 670 mm |
| Reach | 395 mm | 390 mm | 398 mm | 401 mm | 402 mm | 412 mm |
| Top Tube Length | 567 mm | 577 mm | 592 mm | 608 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 413 mm | 452 mm | 482 mm | 512 mm | 541 mm | 571 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 170 mm | 190 mm | 205 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1061 mm | 1061 mm | 1071 mm | 1076 mm | 1083 mm | 1098 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 763 mm | 800 mm | 826 mm | 852 mm | 877 mm | 898 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
