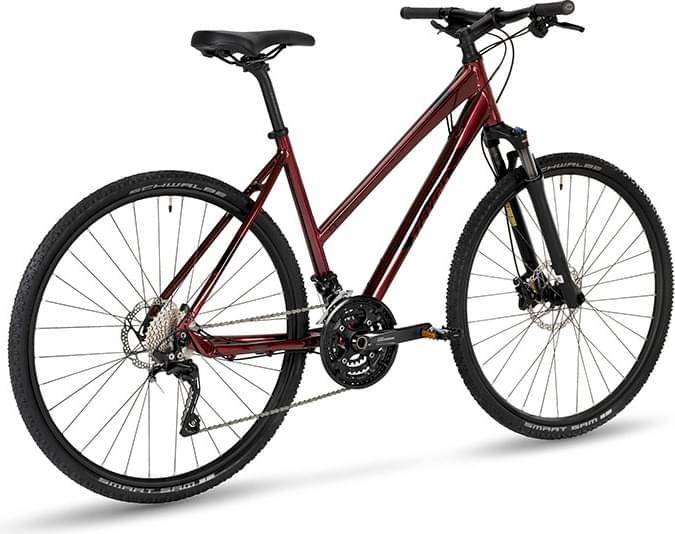

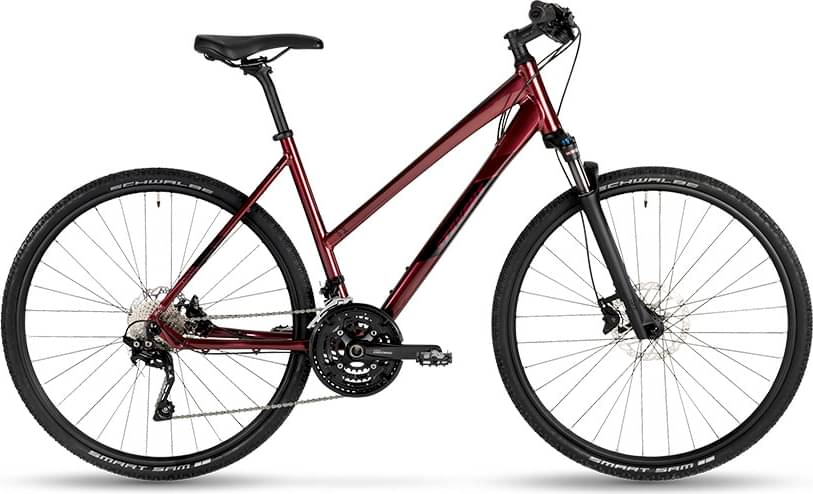

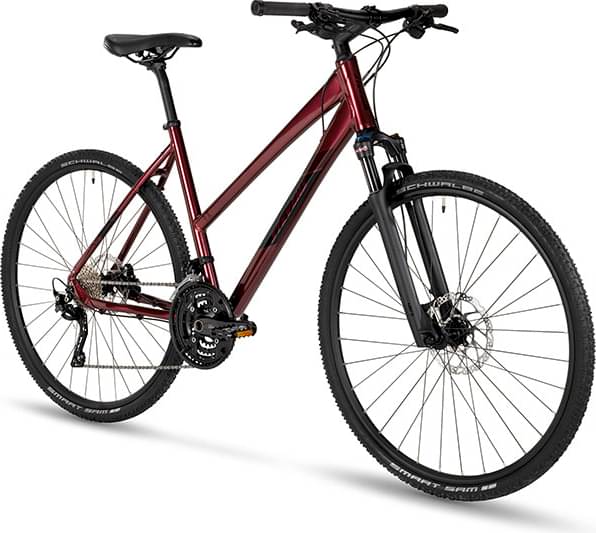

Stevens 6X LT 2025
2025 Urban
Estimate price |
1,162$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NRX D
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Fender + rack mounts
Suspension Fork
SR Suntour NRX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Trekking Shadow, RD-T6000-SGS, 10-speed, Total capacity: 47 T
Front Derailleur
Shimano Deore Trekking, FD-T6000-H3L, 3-speed
Shift Levers
Shimano Deore, SL-M6000, 3-speed
Cassette
Shimano CS-HG500, 10-speed, Combination: 11-12-14-16-18-20-22-25-28-32 T
Crank
STEVENS MPL-751, 48-36-26 T, BB type: BSA
Bottom Bracket
BSA, threaded
Chain
Shimano CN-HG54
Pedals
ATB Alu Comp Reflex
Wheels
Front Hub
Formula CL-25, Axle: QR9x100 mm
Rear Hub
Shimano FH-M3050, Axle: QR10x135 mm
Rims
Oxygen COMP-D A19, ETRTO: 19 x 622
Tires
Schwalbe Smart Sam Performance, Tire size: 42-622, ADDIX compound
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake, 2 pistons
Brake Levers
Shimano BL-MT402-3A
Cockpit
Stem
Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 6°
Handlebar
Oxygen Driver, Width: 640 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Oxygen Lynx
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.621 mm | 1.608 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm |
| Front Center | 620 mm | 631 mm | 653 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 79 mm | 78 mm |
| Stack | 592 mm | 621 mm | 640 mm |
| Reach | 383 mm | 383 mm | 398 mm |
| Top Tube Length | 564 mm | 579 mm | 600 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 259 mm | 260 mm | 275 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 160 mm | 180 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1059 mm | 1070 mm | 1092 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 675 mm | 687 mm | 700 |
| Wheels | 700 | 700 | 700 |
