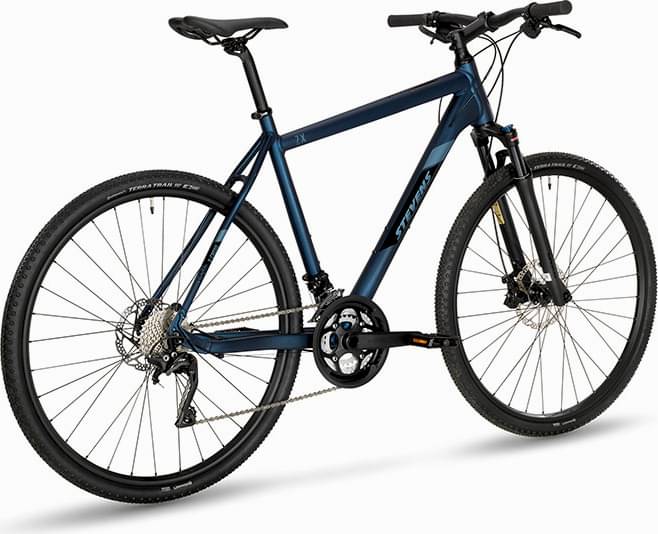

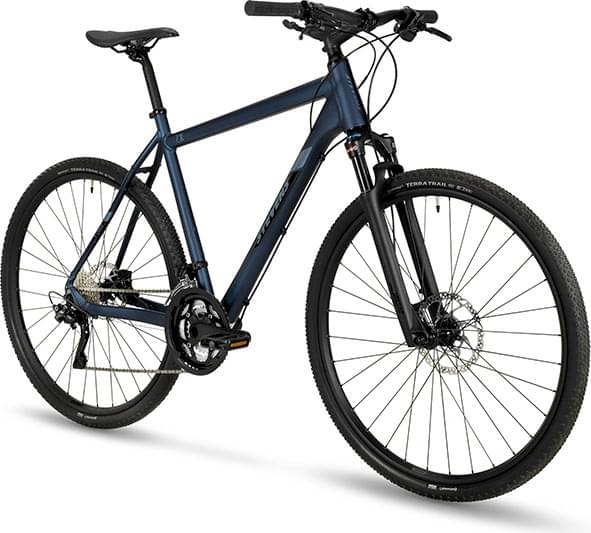

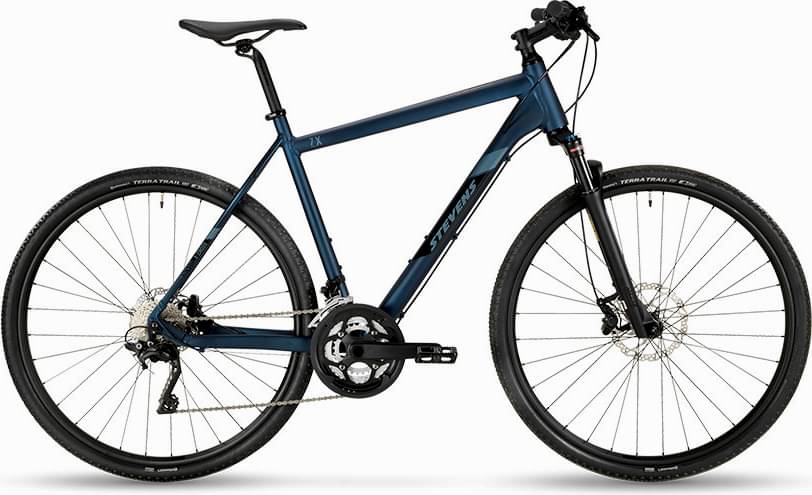

Stevens 7X HT 2025
2025 Urban
Estimate price |
1,860$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NRX D
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium SL 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Fender + rack mounts
Suspension Fork
SR Suntour NRX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6"
Drivetrain
Rear Derailleur
Shimano Deore XT Trekking Shadow, RD-T8000-SGS, 10-speed, Total capacity: 47 T
Front Derailleur
Shimano Deore Trekking, FD-T6000-H3L, 3-speed
Shift Levers
Shimano Deore, SL-M6000, 3-speed
Cassette
Shimano CS-HG500, 10-speed, Combination: 11-12-14-16-18-20-22-25-28-32 T
Crank
Oxygen Scorpo, 48-38-28 T, BB type: BSA 73 mm / 2-Piece
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG54
Pedals
ATB Alu Comp Reflex
Wheels
Front Hub
Shimano Deore XT, HB-M8000, Axle: QR9x100 mm
Rear Hub
Shimano Deore XT, FH-M8000, Axle: QR10x135 mm
Rims
Oxygen RM-23 Disc, ETRTO: 23 x 622
Tires
Continental Terra Trail, Tire size: 45-622, Foldable, PureGrip Compound, ShieldWall System
Brakes
Brakes
Shimano BR-M6000, Hydraulic disc brake
Brake Levers
Shimano BL-T6000
Cockpit
Stem
Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 6°
Handlebar
Oxygen Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen Scorpo, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.53 mm | 1.549 mm | 1.589 mm | 1.629 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 624 mm | 622 mm | 632 mm | 637 mm | 644 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 71 mm | 69 mm | 69 mm |
| Stack | 588 mm | 595 mm | 615 mm | 637 mm | 655 mm |
| Reach | 388 mm | 389 mm | 397 mm | 401 mm | 402 mm |
| Top Tube Length | 568 mm | 576 mm | 592 mm | 608 mm | 615 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 414 mm | 454 mm | 485 mm | 515 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1063 mm | 1061 mm | 1071 mm | 1076 mm | 1083 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 776 mm | 801 mm | 826 mm | 848 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
