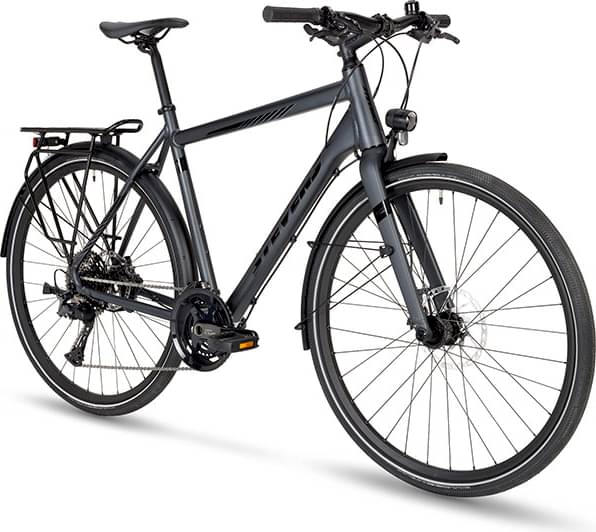

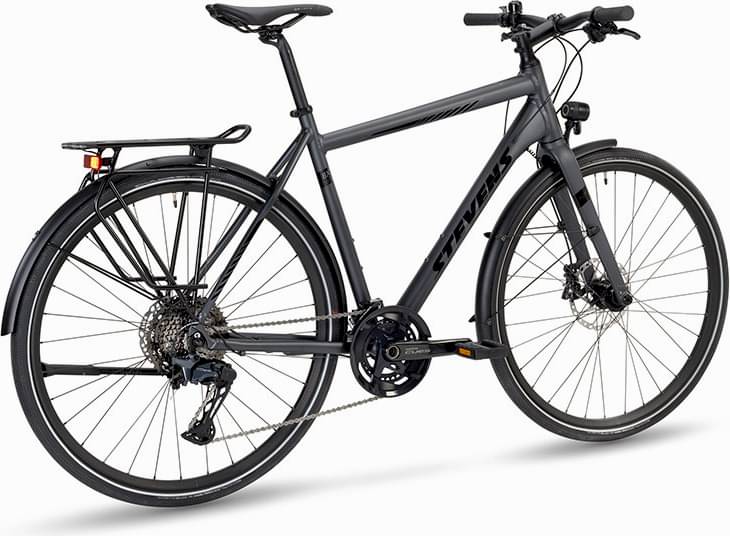

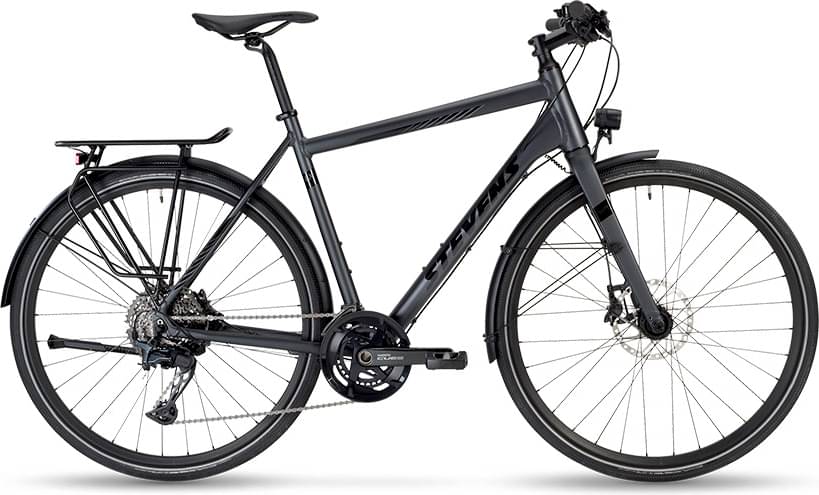

Stevens 8X Lite Tour HT 2025
2025 Urban
Estimate price |
2,558$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium SL 6061 TB, O.L.D.: 135 mm, Brake: postmount disc 6“, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Fender + rack mounts
Suspension Fork
STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 7", Fender + rack mounts
Drivetrain
Rear Derailleur
Shimano CUES U8000 Shadow+, RD-U8020-SGS, 11-speed, Total capacity: 48 T
Front Derailleur
Shimano CUES U8000, FD-U8010-LL3, 2-speed
Shift Levers
Shimano CUES U8000, SL-U8000-L, 2-speed, I-Spec II
Cassette
Shimano CS-LG700-11, 11-speed, Combination: 11-13-15-17-20-23-26-30-34-39-45 T
Crank
Shimano CUES U8000, Shimano FC-U8000-2, 46-32 T, Hollowtech II
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shimano DH-UR708-3D, Hub dynamo, Axle: QR15x100 mm
Rear Hub
Formula CL-26, Axle: QR9x135 mm
Rims
Oxygen RM-X21, ETRTO: 21 x 622
Tires
Schwalbe G-One Allround Performance, Tire size: 40-622, Foldable, RaceGuard, ADDIX Compound, Tubeless Easy, Reflective stripes
Brakes
Brakes
Shimano Deore XT, BR-M8100, Hydraulic disc brake
Brake Levers
Shimano BL-T8100
Cockpit
Stem
Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 6°
Handlebar
Oxygen Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen Scorpo, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.49 mm | 1.516 mm | 1.578 mm | 1.625 mm | 1.612 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 611 mm | 621 mm | 630 mm | 634 mm | 644 mm | 661 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm | 66 mm | 67 mm | 60 mm |
| Stack | 560 mm | 584 mm | 605 mm | 631 mm | 655 mm | 661 mm |
| Reach | 390 mm | 392 mm | 399 mm | 400 mm | 403 mm | 410 mm |
| Top Tube Length | 567 mm | 576 mm | 590 mm | 605 mm | 615 mm | 625 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm | 225 mm | 240 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1048 mm | 1058 mm | 1067 mm | 1071 mm | 1081 mm | 1098 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 747 mm | 779 mm | 804 mm | 832 mm | 859 mm | 881 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
