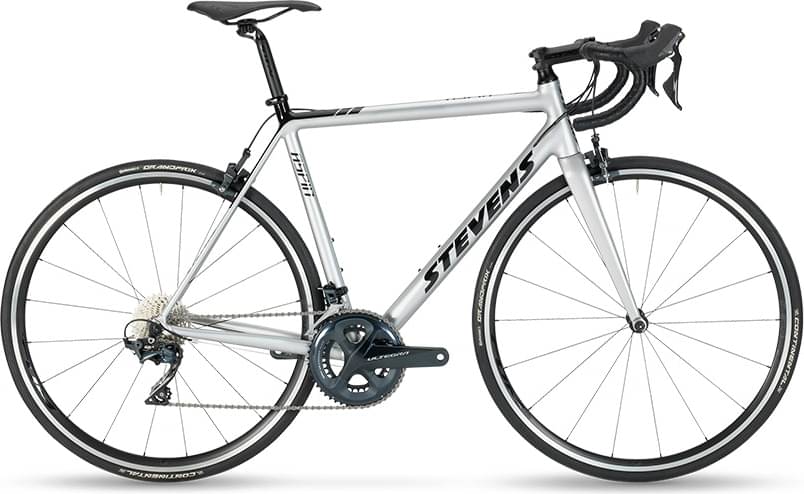

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium SL 7005 TB, O.L.D.: 130 mm, Brake: rim, BB: Pressfit BB86, Front derailleur mount: clamp, Cable routing: internal
Suspension Fork
STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/4", O.L.D.: 100 mm, Brake: rim
Drivetrain
Shift Levers
Shimano Ultegra, ST-R8000, 2-speed
Cassette
Shimano Ultegra, CS-R8000, 11-speed, Combination: 11-12-13-14-16-18-20-22-25-28-32 T
Crank
Shimano Ultegra, FC-R8000, 50-34 T, BB type: Pressfit BB86 / Hollowtech II
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano CN-HG701
Wheels
Rims
Fulcrum Racing 600, Axle: QR9x100/10x130 mm
Tires
Continental Grand Prix, Tire size: 25-622, Foldable, Black-Chili compound, PolyX Breaker
Brakes
Brakes
Shimano Ultegra, BR-R8000
Cockpit
Stem
Oxygen Scorpo Road, Handlebar clamp: 31.8 mm, Angle: -6°
Handlebar
Oxygen Scorpo Aero, Drop: 130 mm, Reach: 80 mm, Clamp: 31.8 mm
Headset
STEVENS Race Taper 1 1/8"-1 1/4", Upper bearing cup: IS42/28.6, Lower bearing cup: IS47/33
Seat
Saddle
Oxygen Cyrius
Seatpost
Oxygen Scorpo Road, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 80 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm | Measuring mode |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.419 mm | 1.419 mm | 1.398 mm | 1.446 mm | 1.482 mm | 1.51 mm | 1.514 mm | mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | mm |
| Front Center | 574 mm | 581 mm | 584 mm | 596 mm | 608 mm | 615 mm | 626 mm | 638 mm | mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | mm |
| Trail | 65 mm | 60 mm | 56 mm | 53 mm | 52 mm | 54 mm | 53 mm | 54 mm | mm |
| Stack | 529 mm | 542 mm | 549 mm | 559 mm | 584 mm | 603 mm | 622 mm | 636 mm | mm |
| Reach | 369 mm | 382 mm | 387 mm | 400 mm | 404 mm | 407 mm | 412 mm | 420 mm | mm |
| Top Tube Length | 516 mm | 537 mm | 544 mm | 560 mm | 572 mm | 580 mm | 590 mm | 602 mm | mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | ° |
| Seat Tube Length | 461 mm | 481 mm | 504 mm | 510 mm | 540 mm | 560 mm | 580 mm | 601 mm | mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | ° |
| Head Tube Length | 130 mm | 140 mm | 145 mm | 155 mm | 180 mm | 200 mm | 220 mm | 235 mm | mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | mm |
| Wheelbase | 974 mm | 981 mm | 984 mm | 996 mm | 1008 mm | 1015 mm | 1026 mm | 1038 mm | mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | mm |
| Standover Height | 716 mm | 751 mm | 766 mm | 776 mm | 803 mm | 823 mm | 842 mm | 859 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Aspin is part of the Stevens Aspin model. Stevens released 1 bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Road bikes average price
If you want an acceptable General Road bike you should know that the average price is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Stevens released this model in 2022, its price was 2123$. Doing a quick comparison, we notice that Aspin price is 10.86% higher than the average cost of a General Road bike.
Average weight for General Road bikes
On a deeper look, we notice that the average weight of a General Road bike is 9 kg (19.84 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8 kg (17.64 lbs), the Aspin model is considerably lighter than average. In short, the average General Road bike weight is 12.5% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Aspin components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Aspin bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aspin has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
