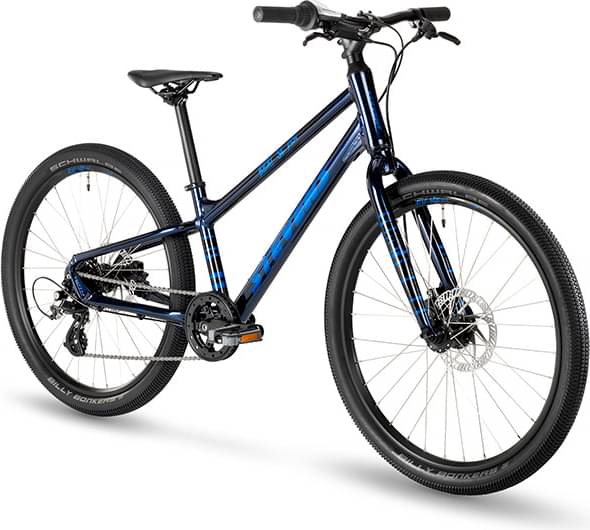

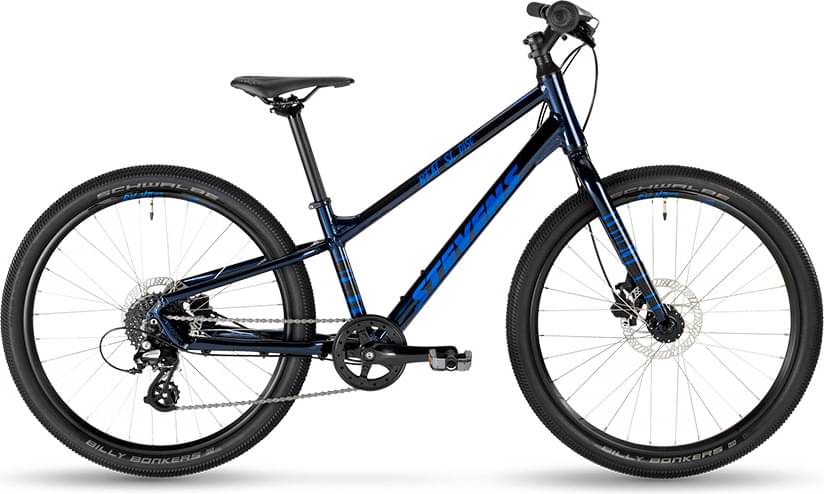

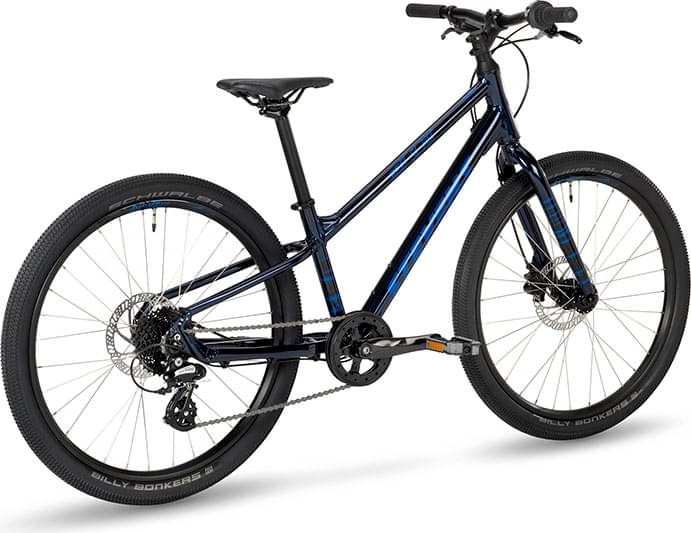

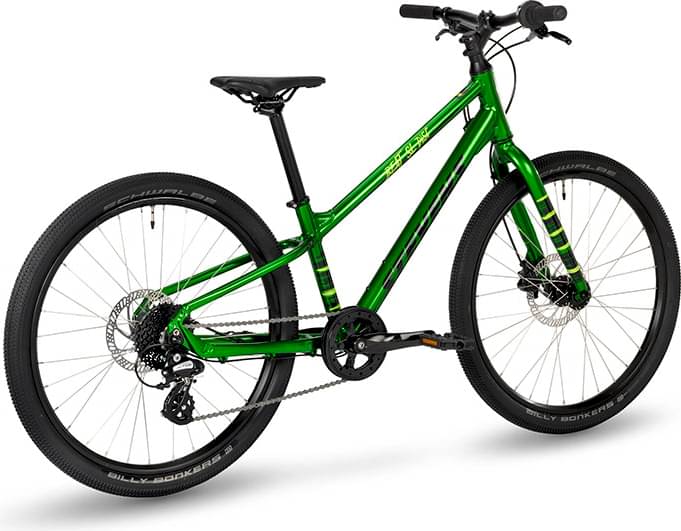

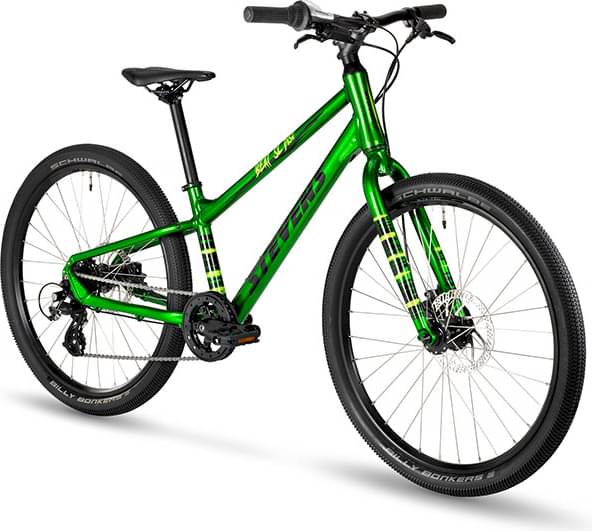

Stevens Beat SL Disc 24” 2025
2025 Youth
Estimate price |
662$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 68 mm, Cable routing: external, Rack mounts
Suspension Fork
STEVENS Alu Unicrown, Aluminium steerer, Steerer 1 1/8", O.L.D.: 100 mm, Brake: IS disc 6"
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 8-speed, Total capacity: 43 T
Shift Levers
Shimano SL-RS45-8R Revo, Revo shifter, 8-speed
Cassette
Shimano CS-HG31, 8-speed, Combination: 11-13-15-18-21-24-28-32 T
Crank
Oxygen Aluminium Pro, 32 T, BB type: BSA 68 mm / Square taper (118 mm axle length), Chainguard
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC Z8.3
Pedals
KID Reflex
Wheels
Front Hub
Formula DC-20, Axle: QR9x100 mm
Rear Hub
Formula DC-22, Axle: QR9x135 mm
Rims
Oxygen RM-M17, ETRTO: 17 x 507
Tires
Schwalbe Billy Bonkers, Tire size: 50-507, Active Line, KevlarGuard, LiteSkin
Brakes
Brakes
Tektro HD-J285, Hydraulic disc brake
Brake Levers
Tektro HD-J285, 2 finger
Cockpit
Handlebar
Oxygen Pistol, Width: 560 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 25.4 mm
Headset
STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Oxygen Sportline
Seatpost
Oxygen Aluminium, Length: 250 mm, Diameter: 27.2 mm, Insertion depth: min. 80 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 12.5" |
|---|---|
| Stack Reach Ratio | 1.513 mm |
| Bottom Bracket Height | 258 mm |
| Front Center | 577 mm |
| Rake | 45 mm |
| Stack | 522 mm |
| Reach | 345 mm |
| Top Tube Length | 515 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 241 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 145 mm |
| Chainstay Length | 410 mm |
| Wheelbase | 982 mm |
| Bottom Bracket Drop | 50 mm |
| Standover Height | 555 mm |
| Wheels | 24" |
