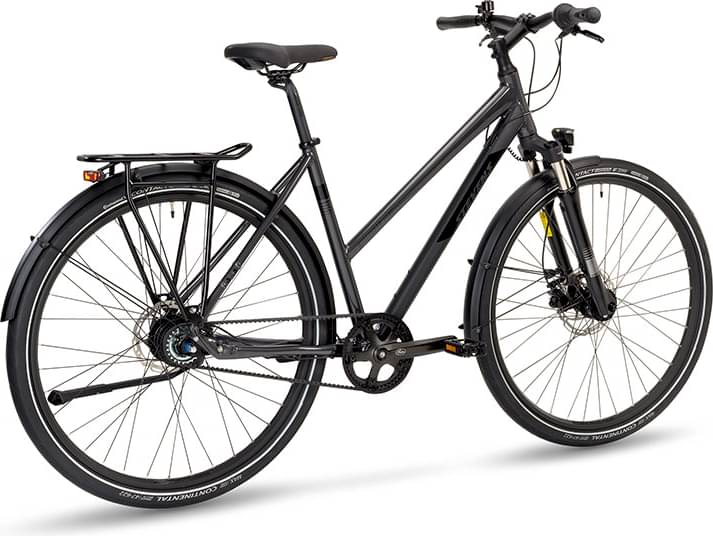

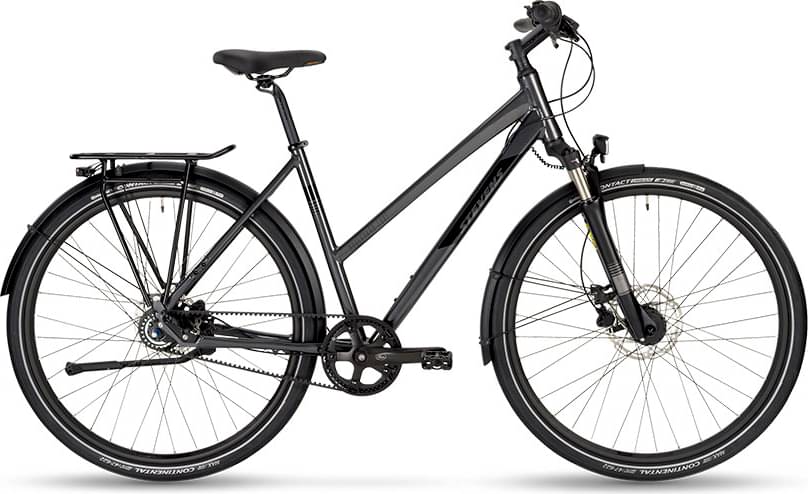

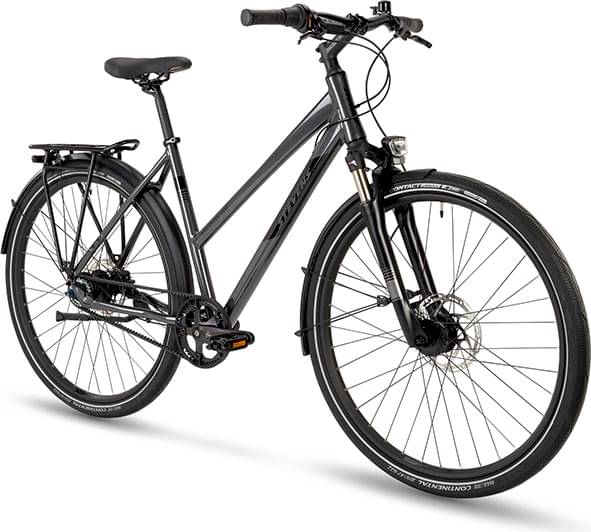

Stevens Boulevard Luxe LT 2025
2025 Urban
Estimate price |
1,744$
Weight | 16.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset Gates CDN, Nexus -
Suspension Hardtail -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: postmount disc 6", BB: BSA 68 mm, Cable routing: internal, Fender + rack mounts, Adjustable dropouts, Bolted seatstay (drive side)
Suspension Fork
SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Nexus 8, SL-C6000, 8-speed
Cassette
Gates CDC Center Track sprocket, 24 T
Crank
Gates S250 CDN, 50 T, BB type: BSA 68 mm / Square taper (117.5 mm axle length), Chainguard
Bottom Bracket
BSA, 68mm, threaded
Pedals
ATB Alu Reflex
Wheels
Front Hub
Shimano DH-3D37, Hub dynamo, Axle: QR9x100 mm threaded
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Continental Contact Urban, Tire size: 47-622, Safety Pro, PureGrip Compound, Reflective stripes
Brakes
Brakes
Tektro HD-T280, Hydraulic disc brake, 2 pistons
Brake Levers
Tektro HD-T280, 3 finger
Cockpit
Stem
Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Explora Female
Seatpost
Scorpo, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.556 mm | 1.621 mm | 1.698 mm | 1.722 mm |
| Bottom Bracket Height | 297 mm | 297 mm | 297 mm | 297 mm |
| Front Center | 624 mm | 642 mm | 651 mm | 649 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 77 mm | 82 mm | 77 mm |
| Stack | 596 mm | 624 mm | 657 mm | 675 mm |
| Reach | 383 mm | 385 mm | 387 mm | 392 mm |
| Top Tube Length | 566 mm | 578 mm | 590 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 245 mm | 237 mm | 276 mm | 276 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 125 mm | 155 mm | 190 mm | 205 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1073 mm | 1091 mm | 1100 mm | 1098 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 661 mm | 667 mm | 701 mm | 707 mm |
| Wheels | 700 | 700 | 700 | 700 |
