Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 32 Rhythm, remote lockout, Offset: 42mm (27.5"), 43mm (29")
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, HOLLOWTECH II, Length: 170mm (16"), 175mm (18"/20"/22"/24")
Bottom Bracket
Shimano, BB92 press-fit
Chain
Shimano SLX M7100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano Deore XT, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Shimano Deore XT, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
SUNringlé Helix 27 SL
Tires
27.5" front/rear: Schwalbe Nobby Nic, Evolution, Addix, folding, 29" front: Schwalbe Racing Ralph, Performance, Addix, folding, 29" rear: Schwalbe Racing Ray, Performance, Addix, folding
Brakes
Brakes
Shimano Deore XT M8100, 2-piston, Shimano RT64 CENTER LOCK rotors (180mm front, 160mm rear)
Brake Levers
Shimano Deore XT M8000
Cockpit
Stem
Oxygen Scorpo MTB, 5° rise, 31.8mm bar clamp, Length: 60mm (16"), 70mm (18"), 80mm (20"), 90mm (22"/24")
Handlebar
Oxygen Scorpo MTB, 700mm width, 7° backsweep, 11mm rise, 31.8mm clamp diameter
Headset
Stevens MTB Taper, ZS44/28.6 upper, ZS55/40 lower
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen Scorpo MTB, 380mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.4 mm | 1.38 mm | 1.35 mm | 1.39 mm |
| Bottom Bracket Height | 303 mm | 301 mm | 301 mm | 301 mm | 301 mm |
| Stack | 568 mm | 613 mm | 627 mm | 636 mm | 660 mm |
| Reach | 445 mm | 438 mm | 454 mm | 471 mm | 475 mm |
| Top Tube Length | 601 mm | 606 mm | 626 mm | 646 mm | 656 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 540 mm | 609 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 120 mm | 145 mm |
| Chainstay Length | 431 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1109 mm | 1113 mm | 1134 mm | 1155 mm | 1167 mm |
| Bottom Bracket Drop | 52 mm | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 733 mm | 778 mm | 815 mm | 838 mm | 890 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

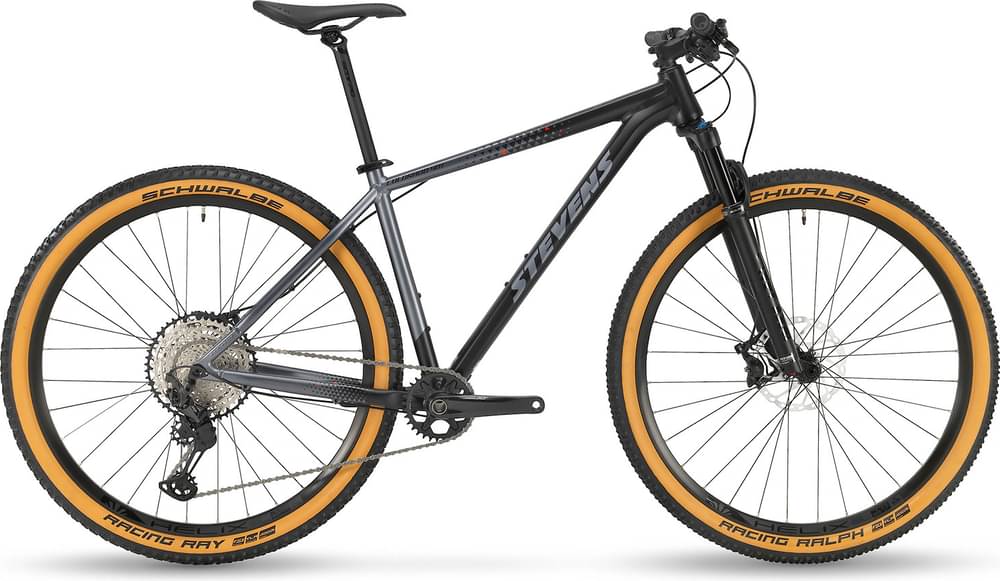

Colorado 401 belongs to the Stevens Colorado model. 3 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 11.5 kg (25.35 lbs), Stevens bike is a bit lighter than average. In other words, this model is 7.83% lighter than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Colorado 401 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
