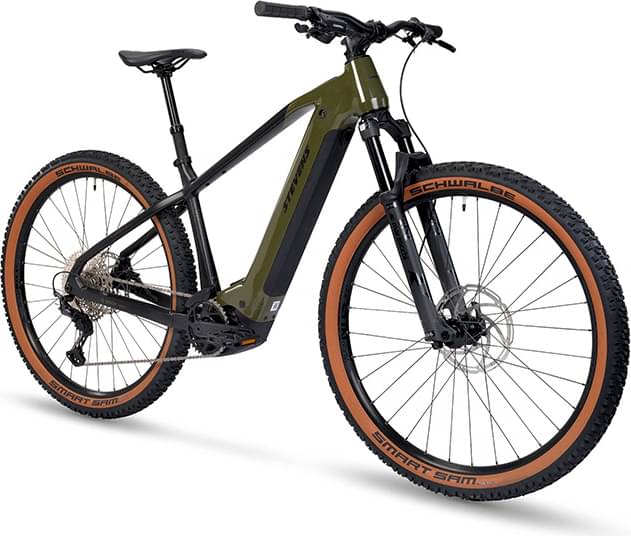

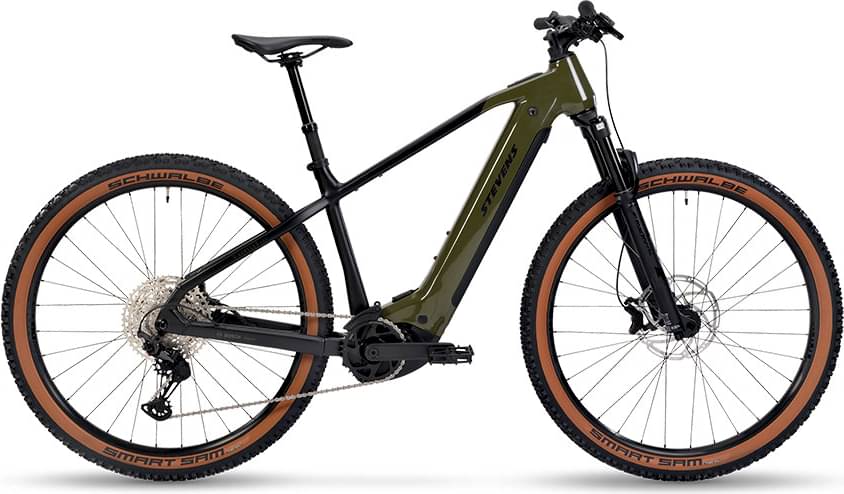

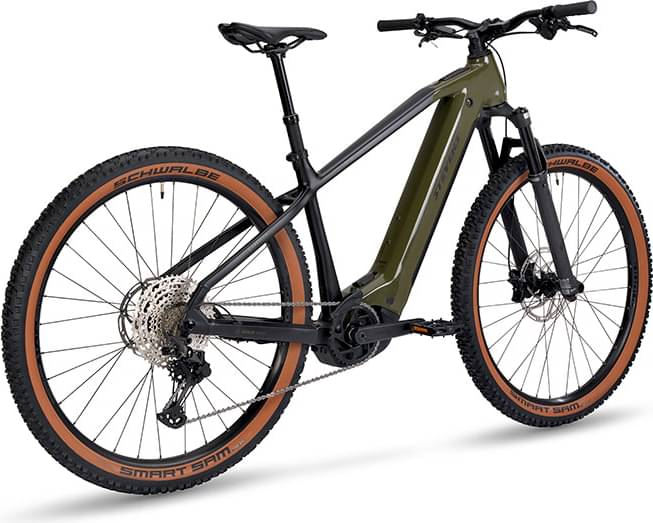

Stevens E-Agnello 8.8.1 2025
2025 E-bike
Estimate price |
5,583$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Marzocchi Bomber Z2
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 800, The smart system, Capacity: 800 Wh/22.2 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Tektro Gemini Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 DB, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal
Suspension Fork
Marzocchi Bomber Z2, Travel: 120 mm, Air suspension, Lockout, Rail Damper 2.0, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 110 mm, Brake: postmount disc 7"
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore, SL-M6100-R, 12-speed
Cassette
Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Scorpo, BB type: Bosch / ISIS
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Pedals
MTB Flatpedal Reflex
Wheels
Front Hub
Strummer CLTP, Axle: QR15x110 mm
Rear Hub
Strummer M42-3, Axle: QR12x148 mm
Rims
Sun Ringlé Düroc TR35, ETRTO: 31 x 622
Tires
Schwalbe Smart Sam Performance, Tire size: 65-622, Foldable, ADDIX Compound
Brakes
Brakes
Tektro HD-M535, Hydraulic disc brake, 4 pistons
Brake Levers
Tektro HD-M535, 2 finger
Cockpit
Stem
Scorpo, Handlebar clamp: 31.8 mm, Angle: 5°
Handlebar
Scorpo, Width: 740 mm, Backsweep: 9°, Rise: 25.0 mm, Clamp: 31.8 mm
Headset
Acros Blocklock Taper 1 1/8"-1.5", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/40
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen E-Scorpo DPR-E, Travel: 100 mm | 125 mm | 150 mm, Remote Lockout, Length: 360 mm | 410 mm | 460 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Bosch G5 Performance Line CX, The smart system, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 800, The smart system, Capacity: 800 Wh/22.2 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.506 mm | 1.48 mm | 1.459 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 711 mm | 716 mm | 739 mm | 760 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 104 mm | 100 mm | 100 mm | 100 mm |
| Stack | 652.5 mm | 654.9 mm | 668.9 mm | 682.8 mm |
| Reach | 425 mm | 435 mm | 452 mm | 468 mm |
| Top Tube Length | 600 mm | 616.5 mm | 637.4 mm | 663.8 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 364.7 mm | 367 mm | 384 mm | 412.2 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 125 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1172 mm | 1177 mm | 1200 mm | 1221 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 778 mm | 778 mm | 791 mm | 813 mm |
| Wheels | 29" | 29" | 29" | 29" |
