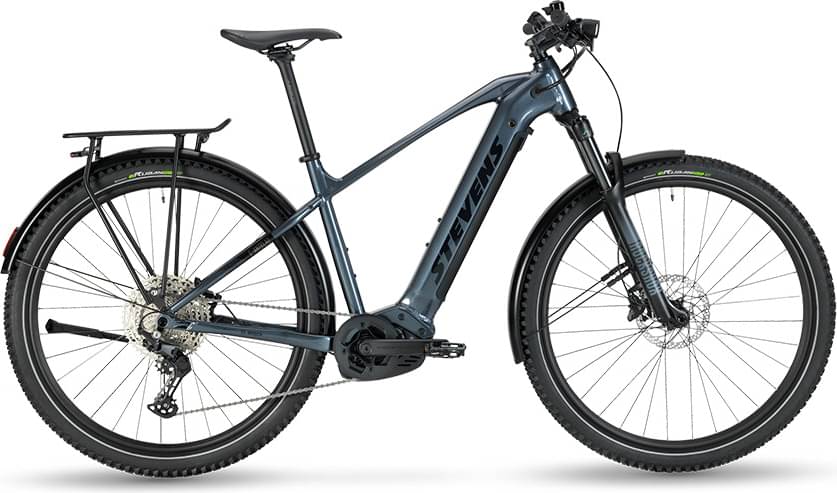

Stevens E-Antelao 2022
2022 E-bike
Estimate price |
4,885$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal
Suspension Fork
Rock Shox 35 Silver TK, Travel: 120 mm, Air suspension, Tapered Steerer 1 1/8" - 1.8'', O.L.D.: 110 mm, Brake: postmount disc 7"
Drivetrain
Shift Levers
Shimano Deore, SL-M5100-R, 11-speed
Cassette
Shimano CS-M5100, 11-speed, Combination: 11-13-15-18-21-24-28-33-39-45-51 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-HG601
Pedals
MTB Alu Flatpedal Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Continental eRuban Plus, Tire size: 58-622, Pure-Grip Compound, Reflective stripes
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake, 2 pistons
Brake Levers
Shimano BL-MT401, 2 finger, Aluminium lever
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5°
Handlebar
Oxygen Scorpo, Width: 740 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS MTB Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen E-Scorpo, Length: 400 mm, Diameter: 30.9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX Cruise, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Kiox
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" | Measuring mode |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.577 mm | 1.526 mm | 1.471 mm | 1.461 mm | mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | mm |
| Front Center | 692 mm | 712 mm | 738 mm | 753 mm | mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | mm |
| Trail | 93 mm | 97 mm | 96 mm | 96 mm | mm |
| Stack | 634 mm | 644 mm | 653 mm | 669 mm | mm |
| Reach | 402 mm | 422 mm | 444 mm | 458 mm | mm |
| Top Tube Length | 580 mm | 600 mm | 625 mm | 650 | mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74 ° | ° |
| Seat Tube Length | 351 mm | 378 mm | 412 mm | 435 mm | mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68.3 ° | ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 150 mm | mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | mm |
| Wheelbase | 1148 mm | 1168 mm | 1194 mm | 1209 mm | mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | mm |
| Standover Height | 767 mm | 784 mm | 804 mm | 824 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
E-Antelao completes the Stevens E E Antelao model. There is 1 e-bike that carries this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Stevens released this model in 2022, its price was 4458$. If we compare this with the average Trail e-bike cost we notice that the price is 32.48% more expensive.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Stevens E-Antelao it’s weighing 26 kg (57.32 lbs). At this weight, is a bit heavier than average. In conclusion, the average Trail e-bike weighs 9.7% less than E-Antelao.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Stevens E-Antelao 2022 e-bike is equipped with the RockShox 35 Silver fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on E-Antelao are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Antelao has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
