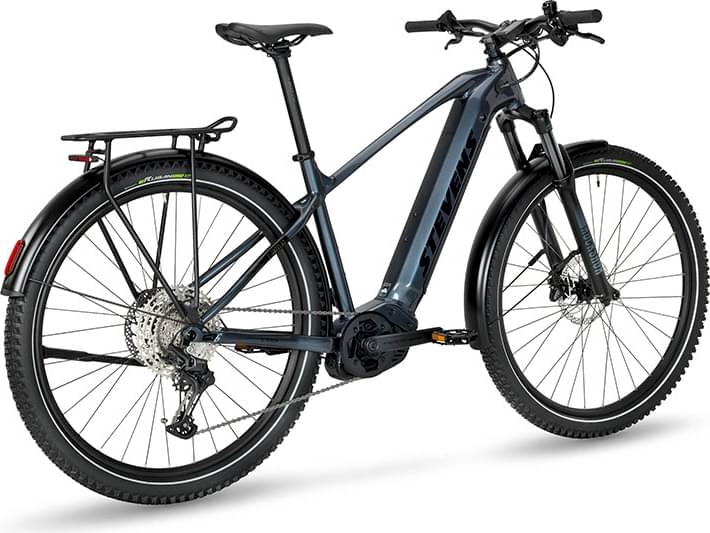

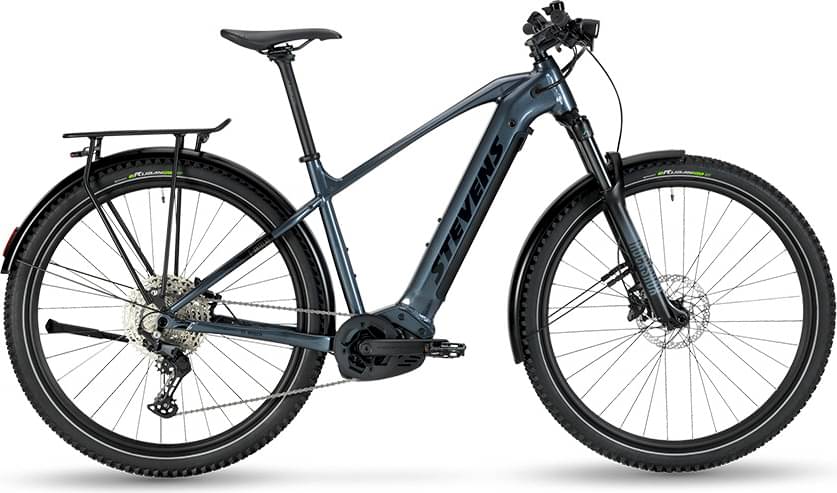

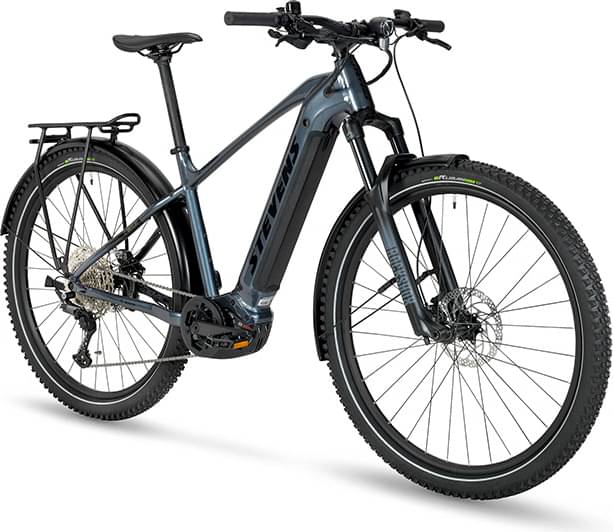

Stevens E-Antelao 2023
2023 E-bike
Estimate price |
4,816$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal
Suspension Fork
Rock Shox 35 Silver TK, Travel: 120 mm, Coil spring, Tapered Steerer 1 1/8" - 1.8'', O.L.D.: 110 mm, Brake: postmount disc 7"
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5100-SGS, 11-speed, Total capacity: 40 T
Shift Levers
Shimano Deore, SL-M5100-R, 11-speed
Cassette
Shimano CS-M5100, 11-speed, Combination: 11-13-15-18-21-24-28-33-39-45-51 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-HG601
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Shimano HB-MT400-B, Axle: QR15x110 mm
Rear Hub
Shimano FH-MT400-B, Axle: QR12x148 mm
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Continental eRuban Plus, Tire size: 58-622, Pure-Grip Compound, Reflective stripes
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake, 2 pistons
Brake Levers
Shimano BL-MT401, 2 finger, Aluminium lever

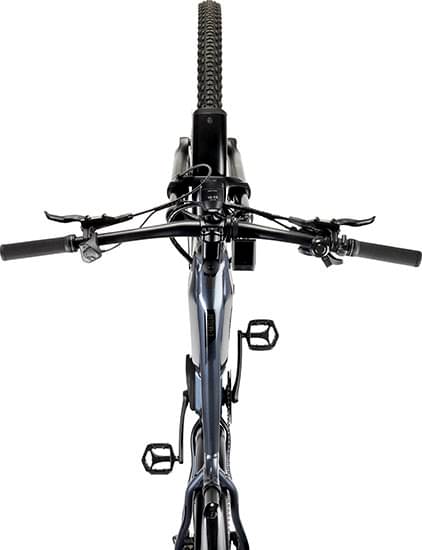

Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5°
Handlebar
Oxygen Scorpo, Width: 740 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS MTB Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen E-Scorpo, Length: 400 mm, Diameter: 30.9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 625, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.52 mm | 1.47 mm | 1.46 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 692 mm | 712 mm | 738 mm | 753 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 97 mm | 96 mm | 96 mm |
| Stack | 636 mm | 646 mm | 655 mm | 671 mm |
| Reach | 404 mm | 424 mm | 446 mm | 460 mm |
| Top Tube Length | 582 mm | 602 mm | 627 mm | 652 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74 ° |
| Seat Tube Length | 351 mm | 378 mm | 412 mm | 435 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68.3 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 150 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1150 mm | 1170 mm | 1196 mm | 1211 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 769 mm | 786 mm | 806 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Antelao completes the Stevens E E Antelao model. Stevens launched 2 e-bikes of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 4446$. Doing a quick comparison, we notice that E-Antelao price is 32.12% higher than the average cost of a Trail e-bike.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
E-Antelao weighs 26 kg (57.32 lbs) and is a bit heavier than the average. To sum up, it’s 9.7% heavier than the average weight of Trail e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox 35 Silver is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the E-Antelao model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Antelao has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
