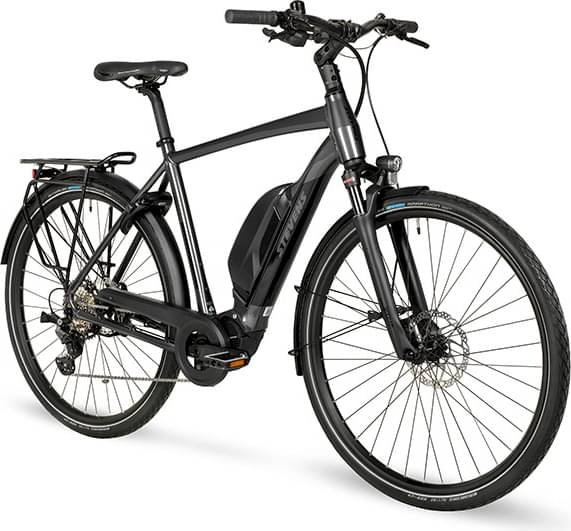

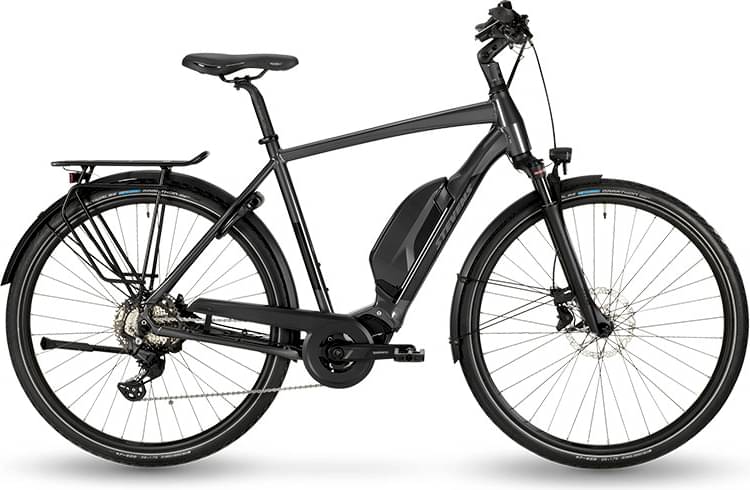

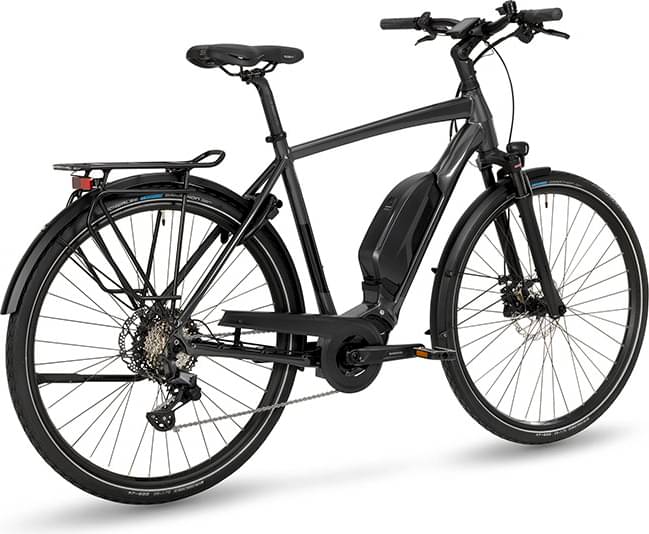

Stevens E-Bormio Luxe HT 2025
2025 E-bike
Estimate price |
3,838$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EP6 BT-EN606, Capacity: 630 Wh/17.5 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Shimano Steps, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5130-GS, 10-speed, Total capacity: 32 T
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG600-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T, LINKGLIDE
Crank
Shimano FC-EM600, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
KMC X10 EPT
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Formula CL-51, Axle: QR5x100 mm
Rear Hub
Formula CL-52, Axle: QR5x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake, 2 pistons
Brake Levers
Shimano BL-MT402-3A
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal Nuvola Gent
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Shimano EP600, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: shimano-steps.com, No of notches: 3 optimally graded driving modes plus walk assistance with support level up to 400 %, driving modes: customizable via E-Tube App
Battery
Shimano EP6 BT-EN606, Capacity: 630 Wh/17.5 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Shimano 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.576 mm | 1.588 mm | 1.575 mm | 1.607 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 629 mm | 645 mm | 648 mm | 655 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 70 mm | 66 mm |
| Stack | 605 mm | 624 mm | 630 mm | 651 mm |
| Reach | 384 mm | 393 mm | 400 mm | 405 mm |
| Top Tube Length | 575 mm | 590 mm | 604 mm | 616 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 482 mm | 512 mm | 541 mm | 572 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1093 mm | 1109 mm | 1112 mm | 1119 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 817 mm | 841 mm | 867 mm | 893 mm |
| Wheels | 700 | 700 | 700 | 700 |
