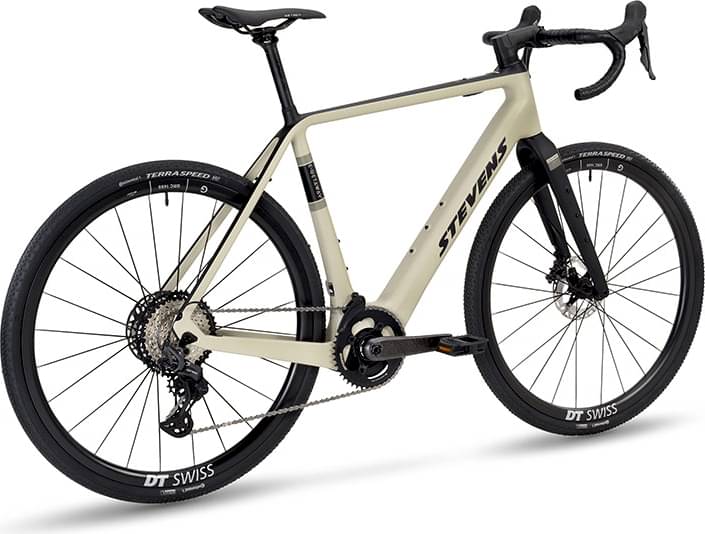

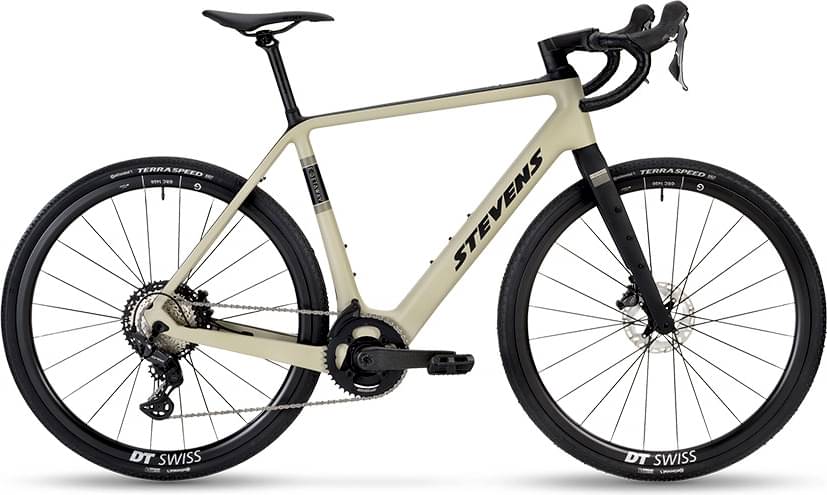

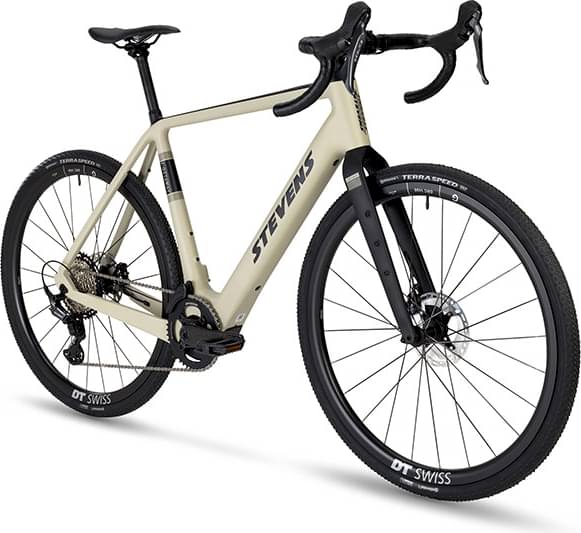

Stevens E-Getaway 2025
2025 E-bike
Estimate price |
7,444$
Weight | 12.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Motor TQ 300W 50Nm hub-drive -
Battery TQ HPR-BAT01, Kapazität: 360 Wh/6.8 Ah, Voltage: 50.4 V, Technology: Li-Ion -
Drivetrain 2 × 12 -
Brakes Shimano GRX 800 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL Fiber, O.L.D.: 142 mm, Brake: flatmount disc, Tretlager: TQ, Zugverlegung: intern, Fender + rack mounts
Suspension Fork
STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: flatmount disc
Drivetrain
Rear Derailleur
Shimano GRX 820 Shadow+, RD-RX822-GS, 12-speed, Total capacity: 35 T
Shift Levers
Shimano GRX 820 STI, ST-RX820-L, 1-speed
Cassette
Shimano Deore XT, CS-M8100-12, 12-speed, Combination: 10-12-14-16-18-21-24-28-32-36-40-45 T
Crank
FSA CK-702/IS, Hollow Carbon, BB type: ISIS
Chain
Shimano CN-M8100
Pedals
ATB Pro Reflex
Wheels
Rims
DT Swiss GRC 1400 Dicut DB 30, Axle: QR12x100 mm
Tires
Continental Terra Speed, Tire size: 40-622, Foldable, Black-Chili Compound, ProTection, Tubeless Ready
Brakes
Brakes
Shimano GRX 820, BR-RX820, Hydraulic disc brake, Flatmount standard
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: -7°
Handlebar
E-Scorpo Aero Gravel, Drop: 122 mm, Reach: 70 mm, Clamp: 31.8 mm
Headset
Acros Viper Taper 1 1/8"-1,5", Upper bearing cup: ZS52/28.6, Lower bearing cup: ZS52/40
Seat
Saddle
Oxygen Triton
Seatpost
Oxygen E-Scorpo, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
TQ HPR50, Continuous rated power: 300 W, Max. torque: 50 Nm, Breakaway at 25 km/h (15.5 mph)
Battery
TQ HPR-BAT01, Kapazität: 360 Wh/6.8 Ah, Voltage: 50.4 V, Technology: Li-Ion
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.482 mm | 1.497 mm | 1.516 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 611 mm | 621 mm | 636 mm | 646 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 69 mm | 69 mm | 66 mm |
| Stack | 567 mm | 587.5 mm | 607 mm | 627.6 mm |
| Reach | 388.4 mm | 396.3 mm | 405.4 mm | 414 mm |
| Top Tube Length | 551 mm | 576 mm | 591 mm | 606 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 465 mm | 494.3 mm | 525 mm | 556 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1041 mm | 1051 mm | 1066 mm | 1077 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 756 mm | 809 mm | 834 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 |
