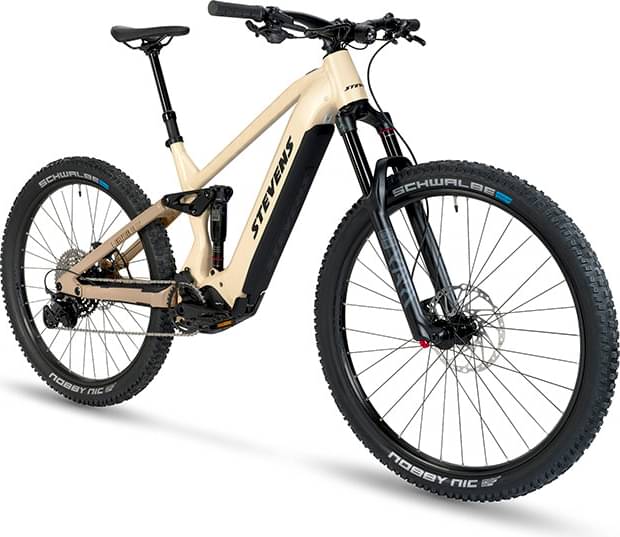

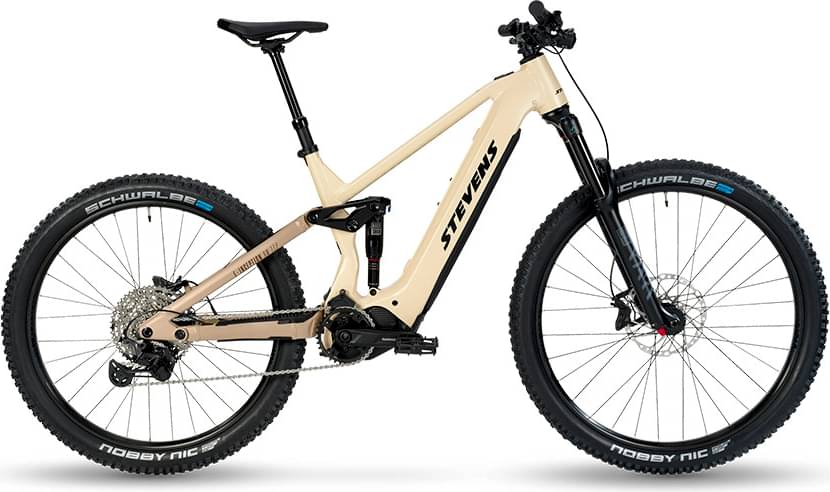

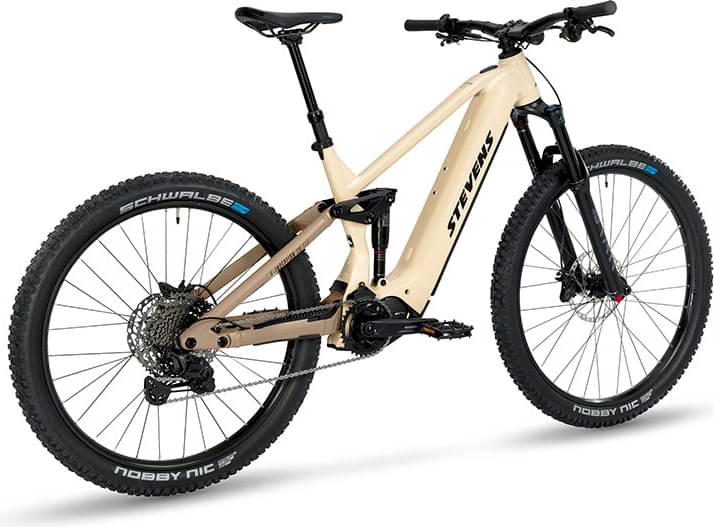

Stevens E-Inception AM 7.7.2 ACT 2025
2025 E-bike
Estimate price |
6,165$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 708, Capacity: 708 Wh/19.2 Ah, Voltage: 36.9 V, Technology: Li-Ion -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Shimano Steps, Cable routing: internal
Suspension Fork
Rock Shox Yari RC, Travel: 150 mm, Air suspension, Tapered Steerer 1 1/8" - 1.8'', O.L.D.: 110 mm, Brake: postmount disc 7"
Rear Shock
RockShox Deluxe Select+, Travel: 150 mm, Air suspension, Length: 205 mm, Shock travel: 60 mm, Mounting width: Trunnion Mount/25.0x8 mm
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8130-SGS, 11-speed, Total capacity: 39 T
Shift Levers
Shimano Deore XT, SL-M8130-R, 11-speed, I-SPEC EV
Cassette
Shimano CS-LG400-11, 11-speed, Combination: 11-13-15-17-20-23-26-30-36-43-50 T
Crank
Shimano FC-EM600, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
MTB Flatpedal Reflex
Wheels
Front Hub
Strummer CLTP, Axle: QR15x110 mm
Rear Hub
Strummer CLTP-1, Axle: QR12x148 mm
Rims
Sun Ringlé Düroc SD37, ETRTO: 31 x 622
Tires
Schwalbe Nobby Nic Evolution, Tire size: 65-622, Super Trail, Foldable, ADDIX Speed Grip compound, SnakeSkin, Tubeless Easy
Brakes
Brakes
Shimano BR-M6120, Hydraulic disc brake, 4 pistons
Brake Levers
Shimano BL-M6100, 2 finger, I-SPEC EV
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5°
Handlebar
Oxygen E-Scorpo, Width: 780 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 35 mm
Headset
Acros Blocklock Taper 1 1/8"-1.8", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46
Seat
Saddle
Fizik Terra Aidon X5
Seatpost
Oxygen E-Scorpo DPR-E, Travel: 125 mm | 150 mm | 170 mm, Remote Lockout, Length: 390 mm | 440 mm | 480 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Shimano EP801, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: shimano-steps.com, No of notches: 3 optimally graded driving modes plus walk assistance with support level up to 400 %, driving modes: customizable via E-Tube App
Battery
Darfon 708, Capacity: 708 Wh/19.2 Ah, Voltage: 36.9 V, Technology: Li-Ion
Charger
Darfon 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.451 mm | 1.416 mm | 1.4 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 747 mm | 768 mm | 795 mm | 821 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 111 mm | 110 mm | 111 mm |
| Stack | 627 mm | 637 mm | 650 | 669 mm |
| Reach | 422 mm | 439 mm | 459 mm | 478 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 75.7 ° | 75.5 ° | 75.3 ° | 75.1 ° |
| Seat Tube Length | 317 mm | 317 mm | 323 mm | 349 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1196 mm | 1217 mm | 1244 mm | 1270 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 765 mm | 765 mm | 773 mm | 816 mm |
| Wheels | 29" | 29" | 29" | 29" |
