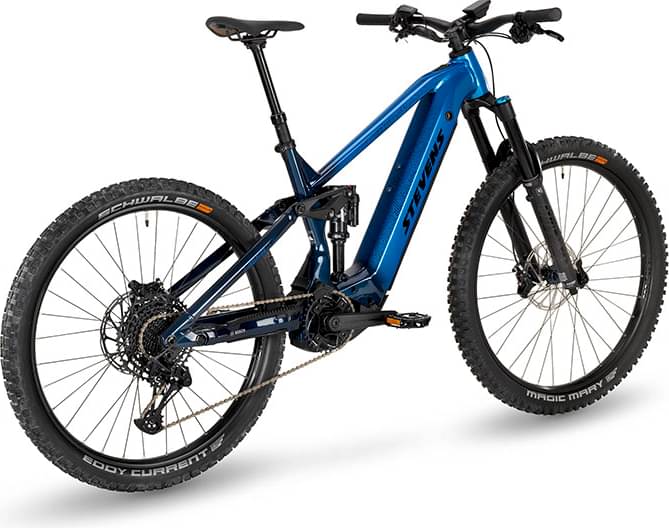

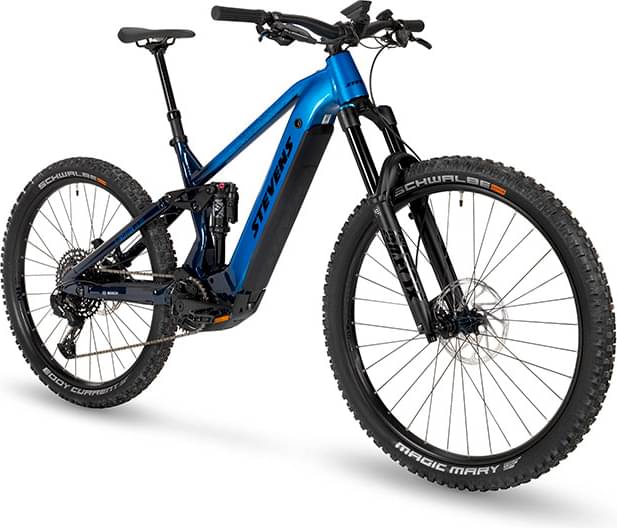

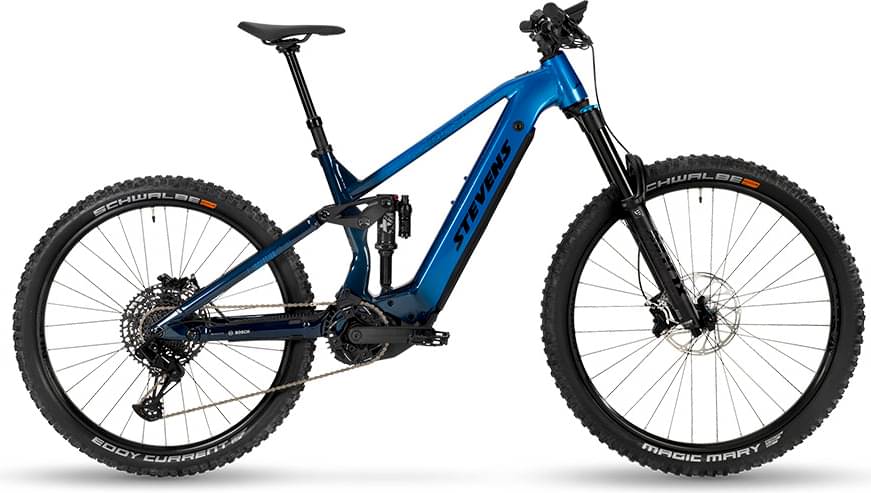

Stevens E-Inception ED 7.6.1 GTF 2024
2024 E-bike
Estimate price |
6,192$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset SX Eagle, NX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625, The smart system, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Shimano Steps, Cable routing: internal
Suspension Fork
Fox 38 Float Performance eMTB+, Travel: 170 mm, Air suspension, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 110 mm, Brake: postmount disc 7"
Drivetrain
Rear Derailleur
SRAM SX Eagle, RD-SX-1-B1, 12-speed, Cage Lock™, X-Actuation™, Total capacity: 40 T
Shift Levers
SRAM NX Eagle Trigger, SL-NX1-PA-B1, 12-speed
Cassette
SRAM PG 1230 Eagle, 12-speed, Combination: 11-13-15-17-19-22-25-28-32-36-42-50 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
SRAM SX Eagle
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Shimano SLX, M7110-B, Axle: QR15x110 mm
Rear Hub
Shimano FH-MT400-B, Axle: QR12x148 mm
Rims
Sun Ringlé Düroc SD37, ETRTO: 31 x 622
Tires
Schwalbe Magic Mary Evolution, Tire size: 65-622, Super Trail, Foldable, ADDIX Soft compound, SnakeSkin, Tubeless Easy
Brakes
Brakes
SRAM Code R, Hydraulic disc brake, 4 pistons
Brake Levers
SRAM Code R, tool-free adjustment
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5°
Handlebar
Oxygen E-Scorpo, Width: 780 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 35 mm
Headset
Acros Blocklock Taper 1 1/8"-1 1/2", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/40
Seat
Saddle
Fizik Terra Alpaca
Seatpost
Oxygen E-Scorpo DPR-E, Travel: 100 mm | 125 mm | 150 mm, Remote Lockout, Length: 340 mm | 390 mm | 440 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, The smart system, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 625, The smart system, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.389 mm | 1.344 mm | 1.332 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 778 mm | 800 mm | 826 mm | 853 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 135 mm | 135 mm | 135 mm |
| Stack | 625 mm | 635 mm | 644 mm | 662 mm |
| Reach | 440 mm | 457 mm | 479 mm | 497 mm |
| Top Tube Length | 587 mm | 607 mm | 632 mm | 658 mm |
| Seat Tube Angle | 76 ° | 75.8 ° | 75.7 ° | 75.5 ° |
| Seat Tube Length | 315 mm | 315 mm | 316 mm | 354 mm |
| Head Tube Angle | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 145 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1227 mm | 1249 mm | 1275 mm | 1302 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 765 mm | 765 mm | 765 mm | 808 mm |
| Wheels | 29" | 29" | 29" | 29" |
