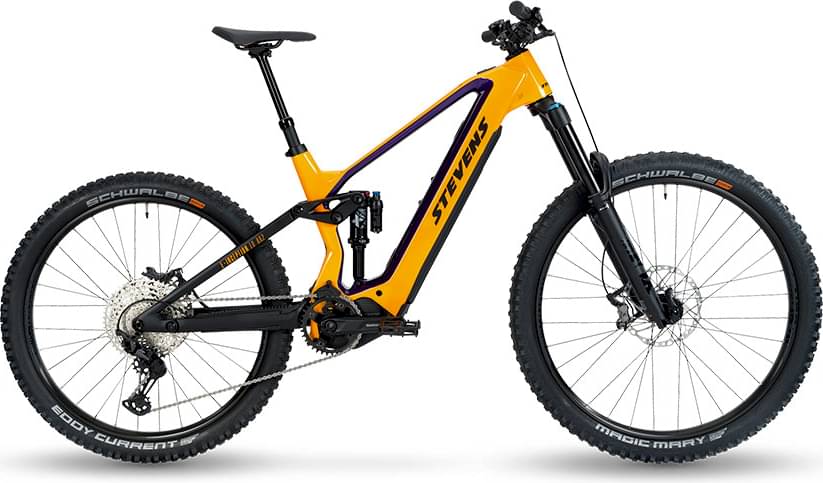

Stevens E-Inception ED 8.8.2 GTF 2025
2025 E-bike
Estimate price |
8,026$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 800, Capacity: 800 Wh/22.3 Ah, Voltage: 35.9 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL HMF, O.L.D.: 148 mm, Brake: postmount disc 7", BB: Shimano Steps, Cable routing: internal
Suspension Fork
Fox 38 Float Performance Elite eMTB+, Travel: 170 mm, Air suspension, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 110 mm, Brake: postmount disc 7"
Rear Shock
Fox Float X Performance Elite, Travel: 170 mm, Air suspension, Length: 205 mm, Shock travel: 65 mm, Mounting width: Trunnion Mount/25.0x8 mm
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore XT, SL-M8100, 12-speed
Cassette
Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Shimano FC-EM600, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-M6100
Pedals
MTB Flatpedal Reflex
Wheels
Front Hub
Strummer CLTP, Axle: QR15x110 mm
Rear Hub
Strummer M42-3, Axle: QR12x148 mm
Rims
Sun Ringlé Düroc SD37, ETRTO: 31 x 622
Tires
Schwalbe Magic Mary Evolution, Tire size: 65-622, Super Trail, Foldable, ADDIX Soft compound, SnakeSkin, Tubeless Easy
Brakes
Brakes
Shimano Deore XT, BR-MT8120, Hydraulic disc brake, 4 pistons
Brake Levers
Shimano Deore XT, BL-M8100, 2 finger
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5°
Handlebar
Oxygen E-Scorpo, Width: 780 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 35 mm
Headset
Acros Blocklock Taper 1 1/8"-1 1/2", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/40
Seat
Saddle
Fizik Terra Alpaca
Seatpost
Oxygen E-Scorpo DPR-E, Travel: 125 mm | 150 mm | 170 mm, Remote Lockout, Length: 390 mm | 440 mm | 480 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Shimano EP801, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: shimano-steps.com, No of notches: 3 optimally graded driving modes plus walk assistance with support level up to 400 %, driving modes: customizable via E-Tube App
Battery
Darfon 800, Capacity: 800 Wh/22.3 Ah, Voltage: 35.9 V, Technology: Li-Ion
Charger
Darfon 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.396 mm | 1.367 mm | 1.363 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 780 mm | 801 mm | 828 mm | 856 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 126 mm | 127 mm | 126 mm | 127 mm |
| Stack | 622 mm | 631 mm | 645 mm | 668 mm |
| Reach | 435 mm | 452 mm | 472 mm | 490 mm |
| Top Tube Length | 587 mm | 607 mm | 632 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 315 mm | 315 mm | 316 mm | 354 mm |
| Head Tube Angle | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm | 155 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1229 mm | 1250 mm | 1277 mm | 1305 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 765 mm | 765 mm | 765 mm | 808 mm |
| Wheels | 29" | 29" | 29" | 29" |
