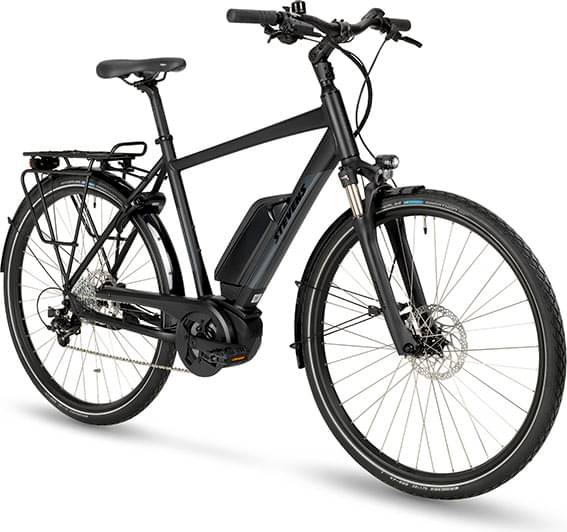

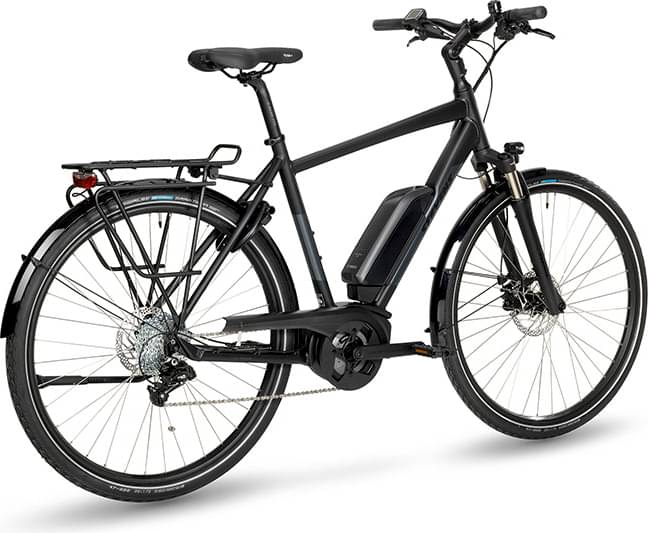

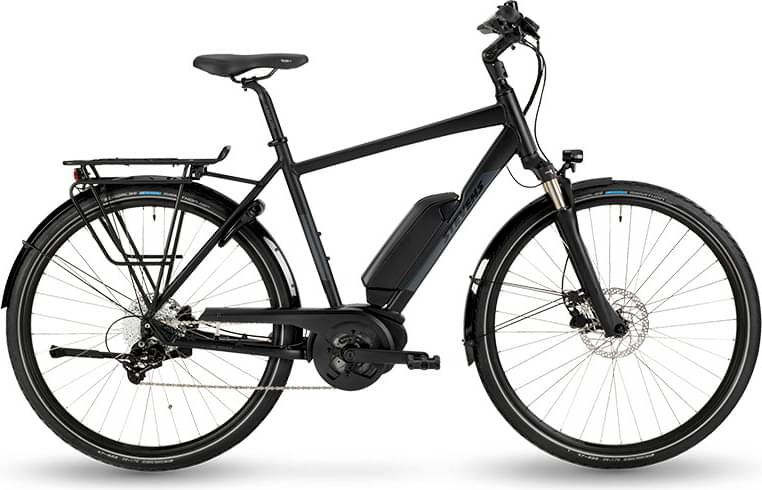

Stevens E-Molveno HT 2025
2025 E-bike
Estimate price |
2,326$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset SunRace M9 -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack 400, Capacity: 400 Wh/11.0 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Sunrace RDM93, 8/9-speed, Total capacity: 40 T
Shift Levers
Sunrace DLM903, 9-speed
Cassette
SunRace CSM90, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC X9 NPGY
Pedals
City Reflex
Wheels
Front Hub
Formula CL-51, Axle: QR5x100 mm
Rear Hub
Formula CL-52, Axle: QR5x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Tektro HD-T280, Hydraulic disc brake, 2 pistons
Brake Levers
Tektro HD-T280, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Gent
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Active Line, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-250 % plus walk assistance
Battery
Bosch PowerPack 400, Capacity: 400 Wh/11.0 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.503 mm | 1.576 mm | 1.588 mm | 1.618 mm | 1.649 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 629 mm | 629 mm | 645 mm | 649 mm | 655 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 89 mm | 82 mm | 82 mm | 76 mm | 72 mm |
| Stack | 577 mm | 605 mm | 624 mm | 647 mm | 668 mm |
| Reach | 384 mm | 384 mm | 393 mm | 400 mm | 405 mm |
| Top Tube Length | 560 mm | 575 mm | 590 mm | 604 mm | 617 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 415 mm | 456 mm | 499 mm | 516 mm | 546 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 71 ° | 71.5 ° |
| Head Tube Length | 135 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 492 mm | 492 mm | 492 mm | 492 mm | 492 mm |
| Wheelbase | 1113 mm | 1113 mm | 1129 mm | 1133 mm | 1139 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 760 mm | 795 mm | 820 mm | 846 mm | 872 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
