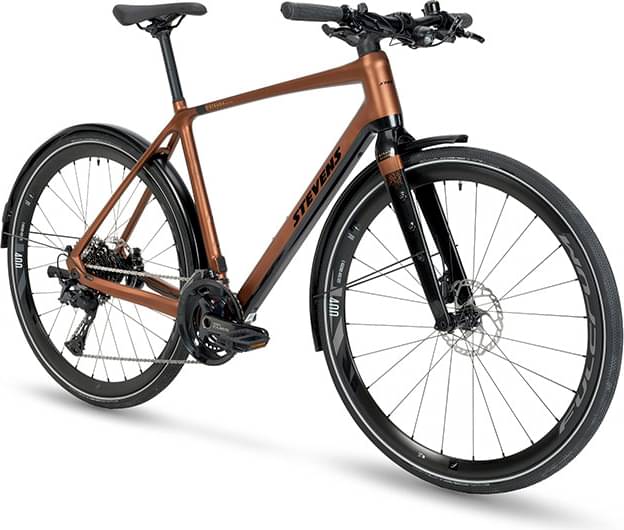

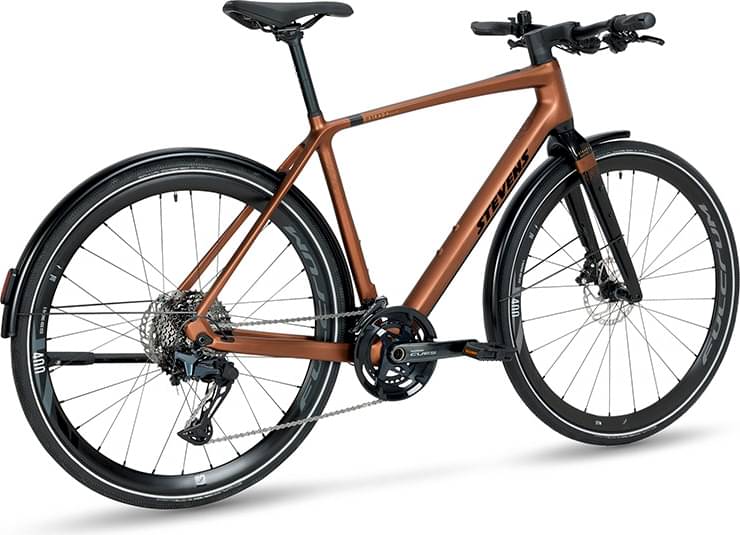

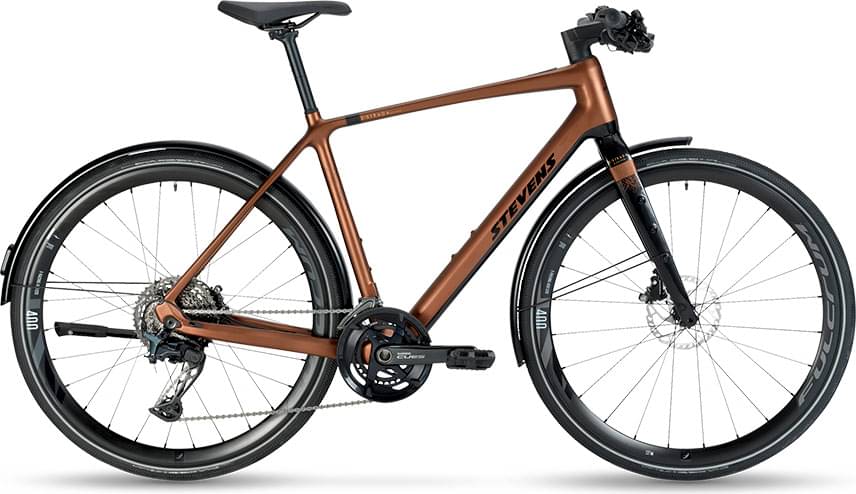

Stevens E-Strada 8.3.4 FEQ 2025
2025 E-bike
Estimate price |
5,350$
Weight | 14 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Groupset CUES -
Suspension Hardtail -
Motor MAHLE 250W 55Nm hub-drive -
Battery Mahle iX2, Kapazität: 236 Wh/6.6 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 2 × 11 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL Fiber, O.L.D.: 142 mm, Brake: Flatmount disc 6", BB: Pressfit BB86, Front derailleur mount: clamp, Cable routing: internal, Fender + rack mounts
Suspension Fork
STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: Flatmount 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano CUES U8000 Shadow+, RD-U8020-SGS, 11-speed, Total capacity: 48 T
Front Derailleur
Shimano CUES U8000, FD-U8010-LL3, 2-speed
Shift Levers
Shimano CUES U8000, SL-U8000-L, 2-speed, I-Spec II
Cassette
Shimano CS-LG700-11, 11-speed, Combination: 11-13-15-17-20-23-26-30-34-39-45 T
Crank
Shimano CUES U8000, Shimano FC-U8000-2, 46-32 T, Hollowtech II
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
ATB Pro Reflex
Wheels
Rims
Fulcrum E-Racing 400 DB, Axle: QR12x100 mm
Tires
Schwalbe G-One Allround Performance, Tire size: 40-622, Foldable, RaceGuard, ADDIX Compound, Tubeless Easy, Reflective stripes
Brakes
Brakes
Shimano BR-RS405, Hydraulic disc brake
Brake Levers
Shimano BL-RS600
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: -7°
Handlebar
Oxygen E-Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 12.7 mm, Clamp: 31.8 mm
Headset
Acros Viper Taper 1 1/8"-1,5", Upper bearing cup: ZS52/28.6, Lower bearing cup: ZS52/40
Seat
Saddle
Selle Royal Vivo Ergo Sport
Seatpost
LightSKIN LED Alloy, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm, Integrated taillight, 5 LEDs
Motor & Battery
Motor
Mahle X20 Hub Engine, Continuous rated power: 250 W, Max. torque: comparable to 55 Nm mid-drive, Breakaway at 25 km/h (15.5 mph)
Battery
Mahle iX2, Kapazität: 236 Wh/6.6 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Mahle 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.462 mm | 1.473 mm | 1.485 mm | 1.493 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 614 mm | 620 mm | 630 mm | 650 | 676 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 73 mm | 66 mm | 66 mm | 66 mm |
| Stack | 554 mm | 576 mm | 599.1 mm | 623 mm | 651 mm |
| Reach | 386 mm | 394 mm | 406.8 mm | 419.5 mm | 436 mm |
| Top Tube Length | 545 mm | 570 mm | 590 mm | 610 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 433.5 mm | 466.6 mm | 501.9 mm | 525.6 mm | 558.9 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 185 mm | 215 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1046 mm | 1052 mm | 1062 mm | 1082 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 778 mm | 806 mm | 832 mm | 858 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
