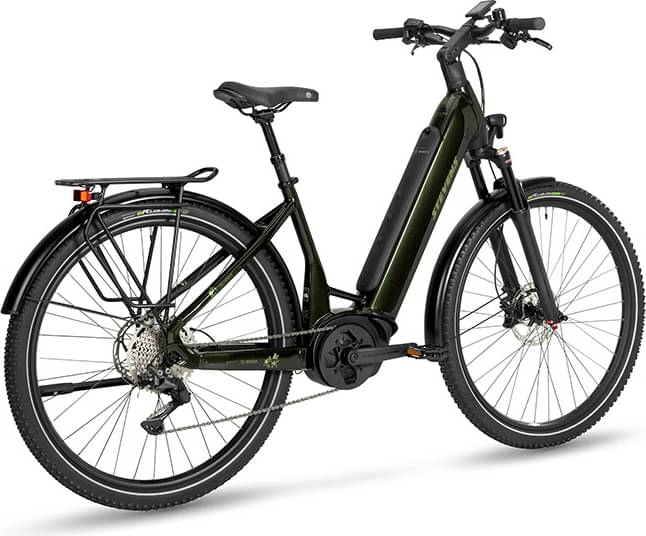

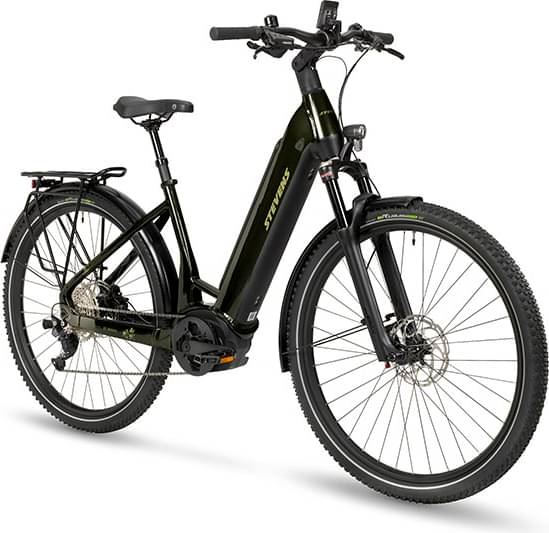

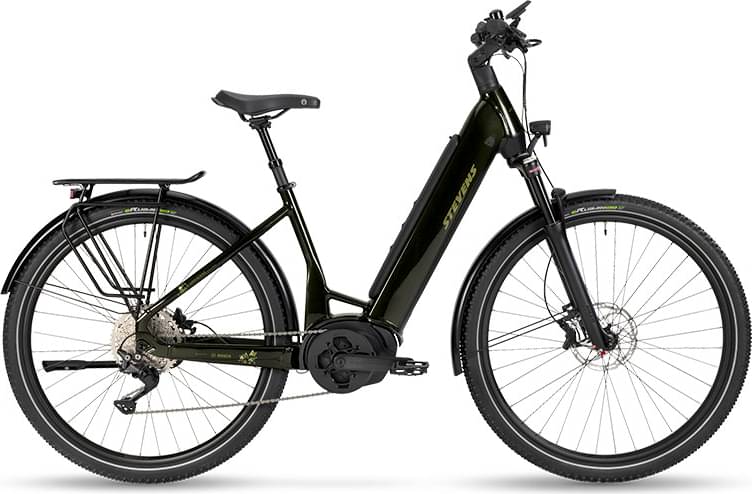

Stevens E-Universe 6.5.1 FEQ 2025
2025 E-bike
Estimate price |
4,303$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset SunRace MS, Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 10 -
Brakes Tektro Gemini Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 DB, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal
Suspension Fork
SR Suntour Mobie25-Air LOR, Travel: 100 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6"
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M5120-SGS, 10/11-speed, Total capacity: 41 T
Shift Levers
Sunrace DLMS33, 10-speed
Cassette
SunRace CSMX3, 10-speed, Combination: 11-13-15-18-21-24-28-32-37-42 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-HG54
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Shimano MT400, Axle: QR15x100 mm
Rear Hub
Strummer RTP-1, Axle: QR12x142 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Continental eRuban Plus, Tire size: 54-622, Pure-Grip Compound, Reflective stripes
Brakes
Brakes
Tektro HD-M535, Hydraulic disc brake, 4 pistons
Brake Levers
Tektro HD-M530, 2 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
Acros Blocklock Taper 1 1/8"-1.8", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46
Seat
Saddle
Selle Royal ON Male
Seatpost
Oxygen E-Scorpo DPR-S-E, Travel: 75 mm | 100 mm, Suspension Seatpost, Remote Lockout, Length: 360 mm | 410 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line, The smart system, Continuous rated power: 250 W, Max. torque: 75 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 500, Capacity: 500 Wh/13.4 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.704 mm | 1.662 mm | 1.648 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 676 mm | 688 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 89 mm | 89 mm |
| Stack | 661 mm | 683 mm | 702 mm |
| Reach | 388 mm | 411 mm | 426 mm |
| Top Tube Length | 590 mm | 620 mm | 640 mm |
| Seat Tube Angle | 72.3 ° | 72.3 ° | 72.3 ° |
| Seat Tube Length | 182 mm | 182 mm | 182 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 497 mm | 497 mm | 497 mm |
| Wheelbase | 1168 mm | 1180 mm | 1202 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 514 mm | 510 mm | 509 mm |
| Wheels | 29" | 29" | 29" |
