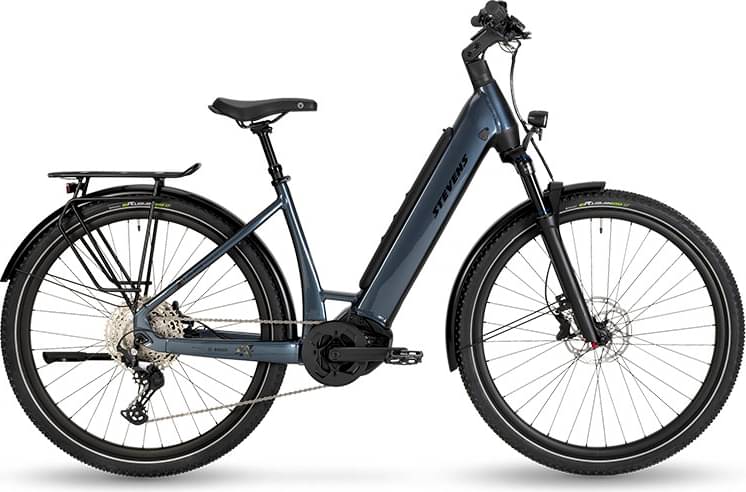

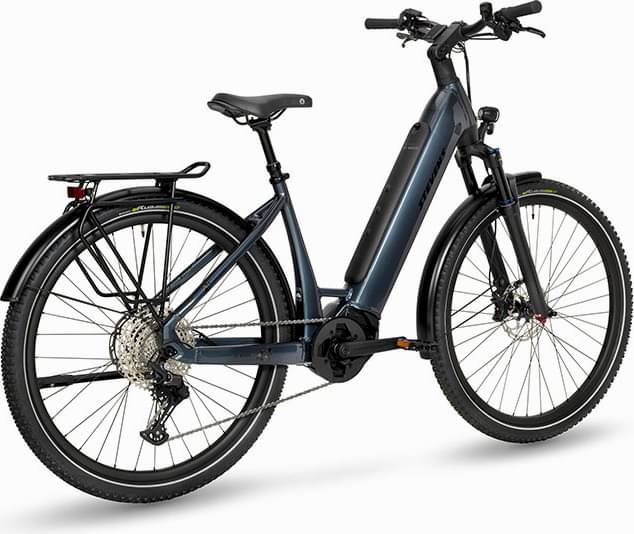

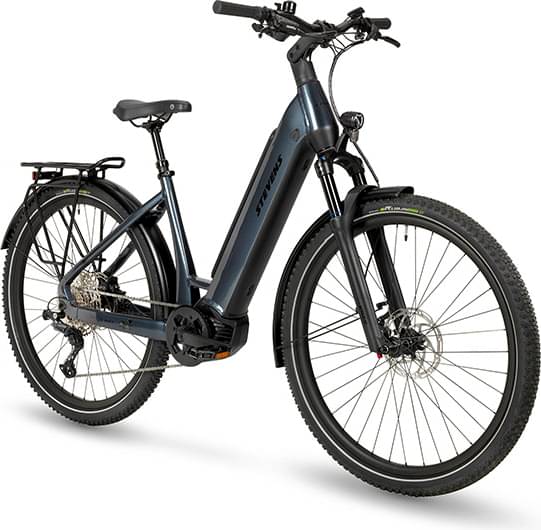

Stevens E-Universe 7.6.1 Plus FEQ 2024
2024 E-bike
Estimate price |
5,118$
Weight | 28.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625, The smart system, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 DB, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal
Suspension Fork
SR Suntour Mobie34-Air, Travel: 100 mm, Air suspension, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 7", Fender mounts
Drivetrain
Rear Derailleur
Shimano Deore Shadow+, RD-M6100-SGS, 12-speed, Total capacity: 41 T
Shift Levers
Shimano Deore, SL-M6100-IR, 12-speed, I-SPEC EV
Cassette
Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Pedals
MTB Alu Flatpedal Reflex
Wheels
Front Hub
Shimano MT410-B, Axle: QR15x110 mm
Rear Hub
Shimano MT410-B, Axle: QR12x148 mm
Rims
Oxygen RM-T25 Disc, ETRTO: 25 x 622
Tires
Continental eRuban Plus, Tire size: 54-622, Pure-Grip Compound, Reflective stripes
Brakes
Brakes
Tektro HD-M535, Hydraulic disc brake, 4 pistons
Brake Levers
Tektro HD-M535, 2 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Headset
Acros Blocklock Taper 1 1/8"-1.8", Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46
Seat
Saddle
Selle Royal ON Male
Seatpost
Oxygen E-Scorpo DPR-S-E, Travel: 75 mm | 100 mm, Suspension Seatpost, Remote Lockout, Length: 360 mm | 410 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Bosch G4 Performance Line CX, The smart system, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 625, The smart system, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.704 mm | 1.662 mm | 1.598 mm | 1.572 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 676 mm | 689 mm | 710 mm | 735 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 88 mm | 88 mm | 89 mm |
| Stack | 661 mm | 683 mm | 687 mm | 706 mm |
| Reach | 388 mm | 411 mm | 430 mm | 449 mm |
| Top Tube Length | 590 mm | 620 mm | 640 mm | 665 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 185 mm | 205 mm | 210 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1158 mm | 1171 mm | 1192 mm | 1217 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 531 mm | 525 mm | 524 mm | 522 mm |
| Wheels | 29" | 29" | 29" | 29" |
