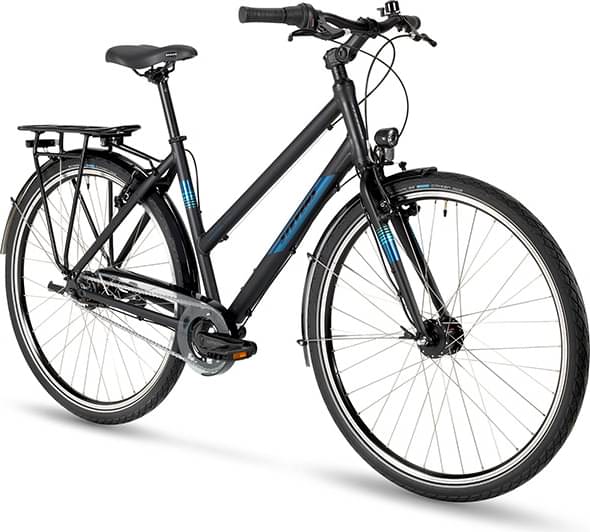

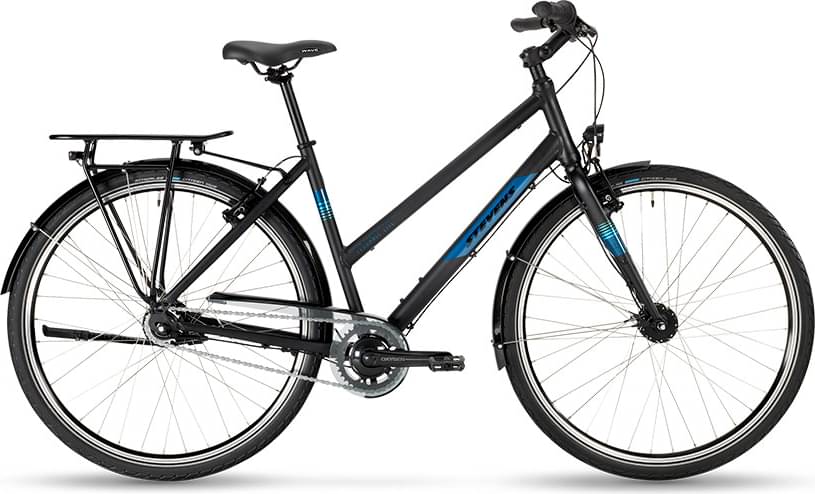

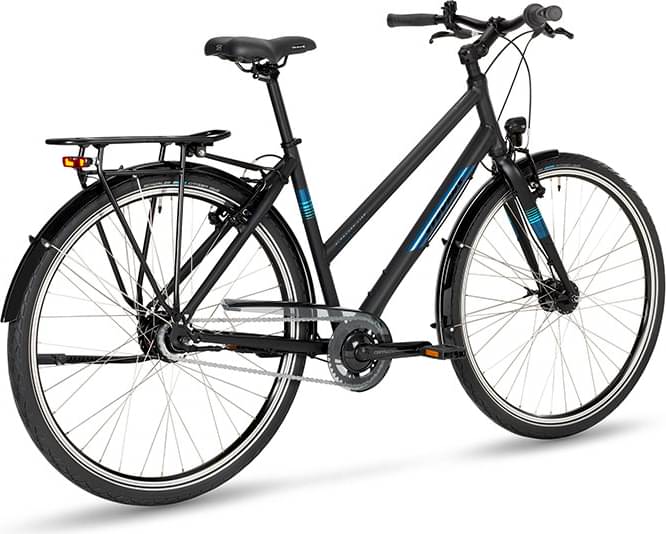

Stevens Elegance Lite LT 2025
2025 Urban
Estimate price |
1,162$
Weight | 15.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Travel Rear 132mm -
Groupset Nexus -
Suspension Full -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 132 mm, Brake: cantilever, BB: BSA 68 mm, Cable routing: external, Fender + rack mounts, Horizontal dropouts
Suspension Fork
STEVENS T-12V, Steerer 1 1/8", O.L.D.: 100 mm, Brake: Cantilever, Fender and lowrider mounts
Drivetrain
Shift Levers
Shimano Nexus 8, SL-C6000, 8-speed
Cassette
Shimano, 20 T
Crank
Oxygen Aluminium, 38 T, BB type: BSA 68 mm / Square Taper (axle length: 118 mm), Chainguard
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC Z8.1
Pedals
City Reflex
Wheels
Front Hub
Shimano Nexus, DH-C3000-3N-NT, Hub dynamo, Axle: threaded
Rims
Oxygen RM-19, ETRTO: 19 x 622
Tires
Schwalbe Citizen Active-Line, Tire size: 47-622, SBC compound, KevlarGuard, Reflective stripes
Brakes
Brakes
Tektro STB-01, V-Brake
Brake Levers
Tektro CL 330-RS, 4 finger, Aluminium lever
Cockpit
Stem
Oxygen Versa, adjustable
Handlebar
Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Headset
STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Wave Lady
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.539 mm | 1.604 mm | 1.648 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 636 mm | 651 mm | 660 mm | 647 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 77 mm | 76 mm | 73 mm | 63 mm |
| Stack | 567 mm | 605 mm | 635 mm | 651 mm |
| Reach | 393 mm | 393 mm | 396 mm | 395 mm |
| Top Tube Length | 566 mm | 578 mm | 590 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 248 mm | 249 mm | 250 mm | 250 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71.5 ° |
| Head Tube Length | 140 mm | 180 mm | 210 mm | 220 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1089 mm | 1104 mm | 1113 mm | 1100 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 642 mm | 657 mm | 668 mm | 674 mm |
| Wheels | 700 | 700 | 700 | 700 |
