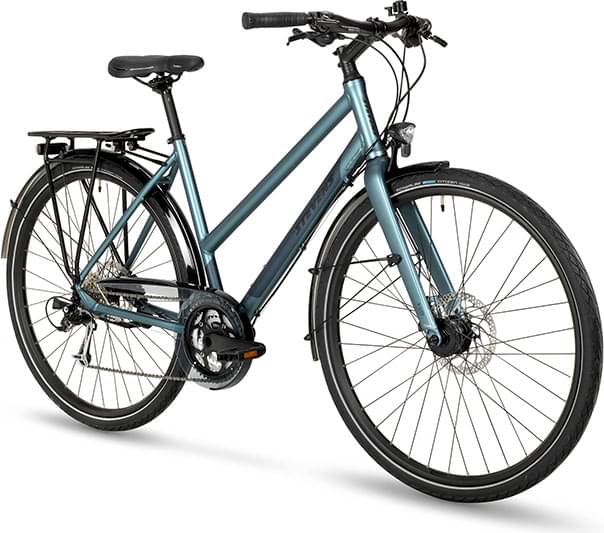

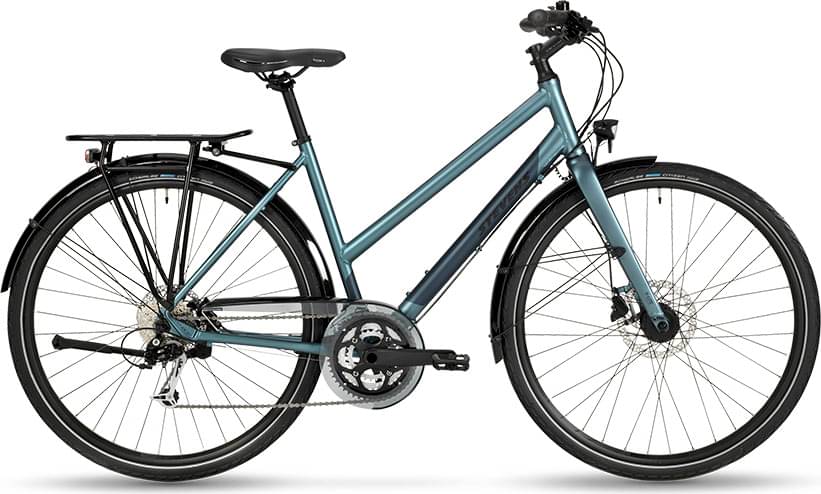

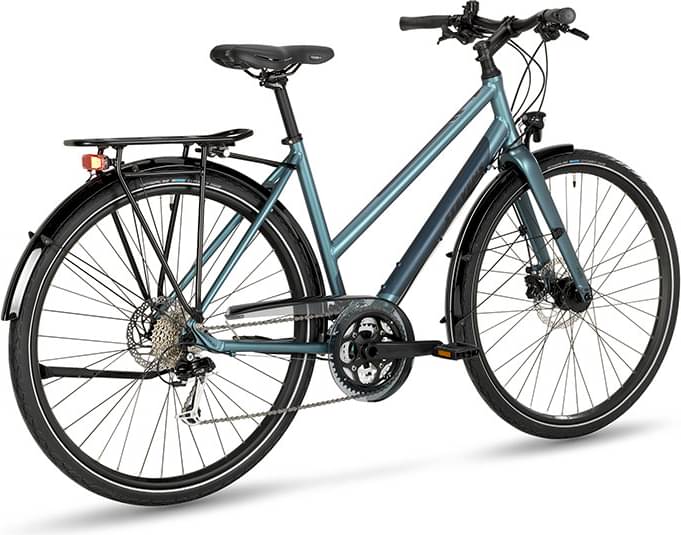

Stevens Galant Lite LT 2025
2025 Urban
Estimate price |
1,162$
Weight | 15.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset SunRace M9 -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 68 mm, Front derailleur mount: clamp, Cable routing: external, Fender + rack mounts
Suspension Fork
STEVENS S-Lite Aluminium, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 7", Fender and lowrider mounts
Drivetrain
Rear Derailleur
Sunrace RDM97, 9-speed, Total capacity: 40 T
Front Derailleur
Sunrace FDM924, 3-speed
Shift Levers
Sunrace DLM903, 9-speed
Cassette
Shimano CS-HG400, 9-speed, Combination: 11-12-14-16-18-21-24-28-32 T
Crank
Oxygen Scorpo, 48-38-28 T, BB type: BSA 73 mm
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X9 EPT
Pedals
City Reflex
Wheels
Front Hub
Shimano DH-3D37, Hub dynamo, Axle: QR9x100 mm threaded
Rear Hub
Formula CL-52, Axle: QR5x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Schwalbe Citizen Active-Line, Tire size: 47-622, SBC compound, KevlarGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.479 mm | 1.549 mm | 1.643 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm |
| Front Center | 620 mm | 635 mm | 643 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 80 mm | 75 mm |
| Stack | 571 mm | 604 mm | 639 mm |
| Reach | 386 mm | 390 mm | 389 mm |
| Top Tube Length | 566 mm | 580 mm | 591 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 248 mm | 248 mm | 250 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 140 mm | 175 mm | 210 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1069 mm | 1084 mm | 1092 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 647 mm | 659 mm | 743 mm |
| Wheels | 700 | 700 | 700 |
