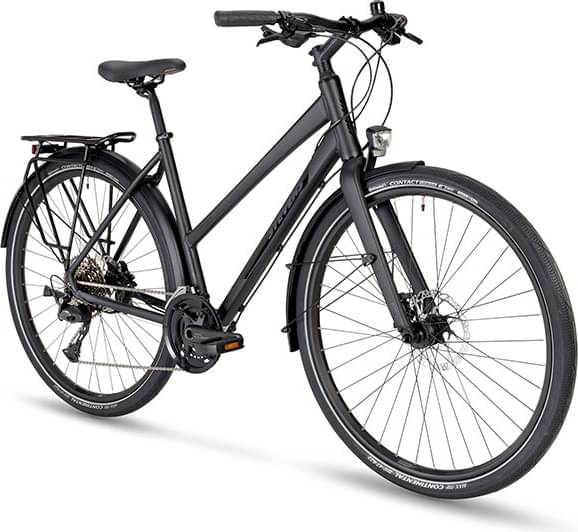

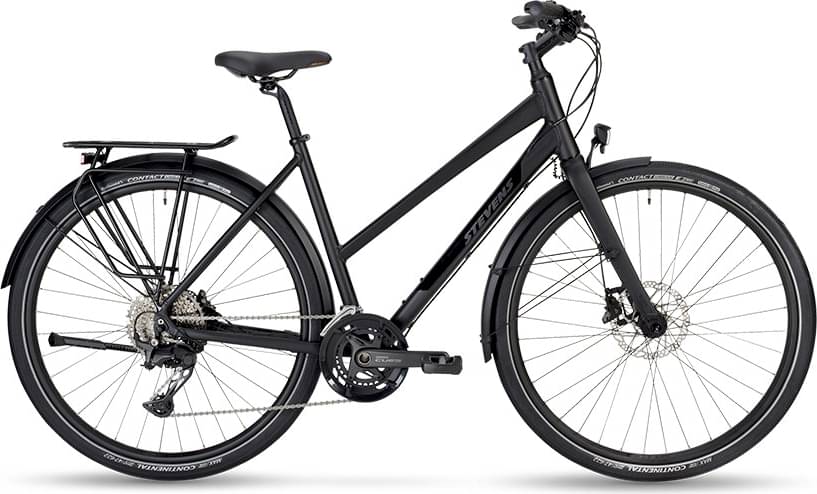

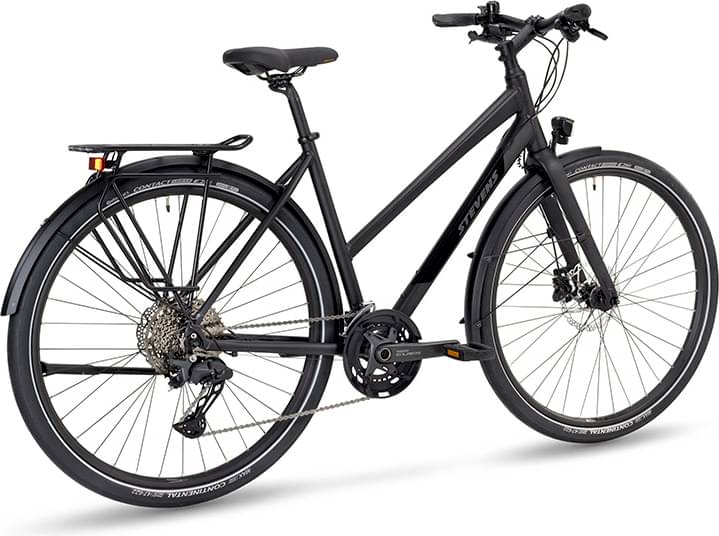

Stevens Randonneur LT 2025
2025 Urban
Estimate price |
1,744$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: postmount disc 6", BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Fender + rack mounts
Suspension Fork
STEVENS S-Lite Aluminium, Steerer 1 1/8", O.L.D.: 100 mm, Brake: Postmount disc 7", Fender and lowrider mounts
Drivetrain
Rear Derailleur
Shimano CUES U6000 Shadow, RD-U6020-11 SGS, 11-speed, Total capacity: 48 T
Front Derailleur
Shimano CUES U6000, FD-U6010-LL3, 2-speed
Shift Levers
Shimano CUES U6000, SL-U6000-L, 2-speed
Cassette
Shimano CS-LG400-11, 11-speed, Combination: 11-13-15-17-20-23-26-30-34-39-45 T
Crank
Shimano CUES U6000, Shimano FC-U6010-2, 46-32 T, Hollowtech II
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-LG500, LINKGLIDE
Pedals
ATB Alu Pro Reflex
Wheels
Front Hub
Shutter Precision PL-8, Hub dynamo, Axle: QR9x100 mm
Rear Hub
Formula CL-26, Axle: QR9x135 mm
Rims
Oxygen RM-26 Disc, ETRTO: 26 x 622
Tires
Continental Contact Urban, Tire size: 47-622, Foldable, Safety Pro, PureGrip Compound, Reflective stripes
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake, 2 pistons
Brake Levers
Shimano BL-MT402-3A
Cockpit
Stem
Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen Scorpo, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Explora Female
Seatpost
Oxygen Scorpo, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.562 mm | 1.621 mm | 1.662 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 624 mm | 638 mm | 651 mm | 640 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 68 mm |
| Stack | 571 mm | 609 mm | 637 mm | 653 mm |
| Reach | 390 mm | 390 mm | 393 mm | 393 mm |
| Top Tube Length | 565 mm | 576 mm | 590 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 242 mm | 243 mm | 272 mm | 272 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 71.5 ° |
| Head Tube Length | 140 mm | 180 mm | 210 mm | 220 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1065 mm | 1079 mm | 1092 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 619 mm | 632 mm | 661 mm | 666 mm |
| Wheels | 700 | 700 | 700 | 700 |
