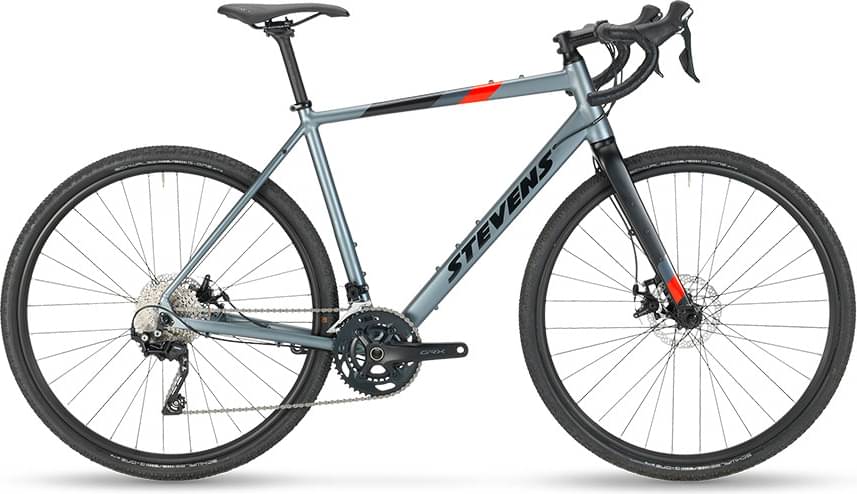

Stevens Tabor 2022
2022 Road
Estimate price |
1,395$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Rear 68mm -
Groupset Tiagra, GRX 600 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: Postmount disc 6", BB: BSA 68 mm, Front derailleur mount: clamp, Cable routing: internal, Fender + rack mounts
Suspension Fork
STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: Postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Tiagra, ST-4700, 2-speed
Cassette
Shimano CS-HG50-10, CS-HG50, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T
Crank
Shimano GRX 600, 46-30 T, BB type: BSA 68 mm / 2-Piece
Bottom Bracket
BSA, 68mm, threaded
Chain
Shimano CN-HG54
Wheels
Rims
Oxygen RM-R20, ETRTO: 19 x 622
Tires
Schwalbe G-One Bite RaceGuard, Tire size: 40-622, RaceGuard, Dual compound
Brakes
Brakes
TRP Spyre C, MD-C605C, Mechanical disc brake, Postmount standard
Cockpit
Stem
Oxygen Driver Road, Handlebar clamp: 31.8 mm, Angle: -6°
Handlebar
Oxygen E-Scorpo Aero Gravel, Drop: 122 mm, Reach: 70 mm, Clamp: 31.8 mm
Headset
STEVENS Race Taper 1 1/8"-1 1/2", Upper bearing cup: IS42/28.6, Lower bearing cup: IS52/40
Seat
Saddle
Oxygen Cyrius
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm | Measuring mode |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.45 mm | 1.471 mm | 1.482 mm | 1.504 mm | 1.517 mm | mm |
| Bottom Bracket Height | 288 mm | 288 mm | 286 mm | 285 mm | 280 mm | 280 mm | mm |
| Front Center | 605 mm | 611 mm | 621 mm | 636 mm | 646 mm | 661 mm | mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | mm |
| Trail | 80 mm | 73 mm | 69 mm | 69 mm | 66 mm | 66 mm | mm |
| Stack | 546 mm | 564 mm | 584 mm | 603 mm | 624 mm | 643 mm | mm |
| Reach | 380 mm | 389 mm | 397 mm | 407 mm | 415 mm | 424 mm | mm |
| Top Tube Length | 516 mm | 551 mm | 576 mm | 591 mm | 606 mm | 621 mm | mm |
| Seat Tube Angle | 76 ° | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 424 mm | 454 mm | 483 mm | 514 mm | 544 mm | 575 mm | mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | ° |
| Head Tube Length | 115 mm | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm | mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | mm |
| Wheelbase | 1035 mm | 1041 mm | 1051 mm | 1067 mm | 1077 mm | 1092 mm | mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | mm |
| Standover Height | 749 mm | 773 mm | 798 mm | 822 mm | 847 mm | 871 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Tabor belongs to the Stevens Tabor model. There is 1 bike that carries this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1273$. Comparing this to the average Gravel bike price, we see that the price is 93.4% lower.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 11.2 kg (24.69 lbs), Stevens bike is much heavier than average. In other words, this model is 37.76% heavier than the average Gravel bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Stevens Tabor 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens Tabor has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
