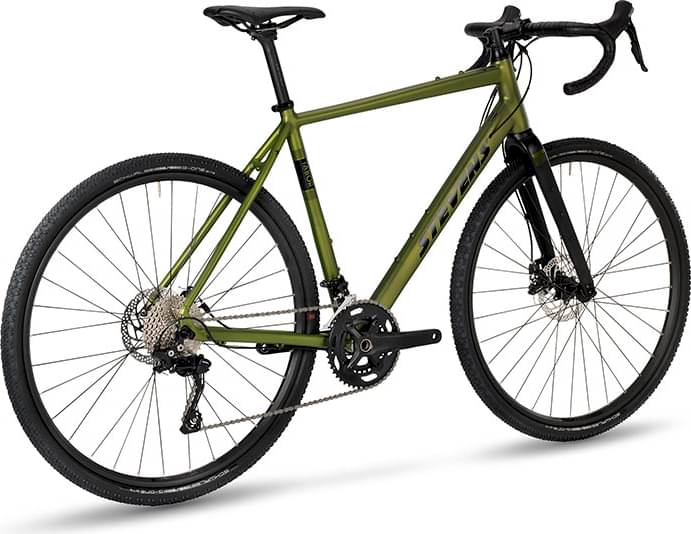

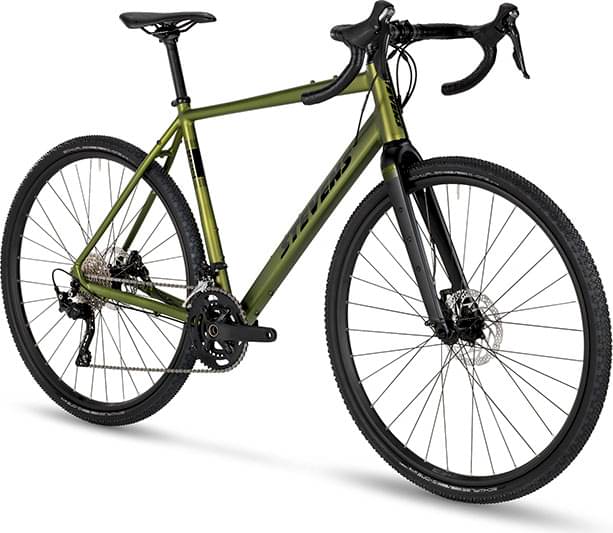

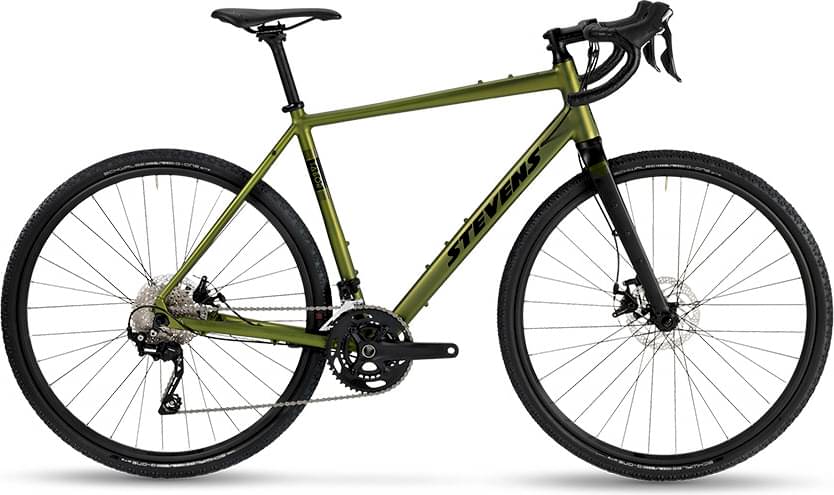

Stevens Tabor 2023
2023 Road
Estimate price |
1,433$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: Postmount disc 6", BB: BSA 68 mm, Front derailleur mount: clamp, Cable routing: internal, Fender + rack mounts
Suspension Fork
STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: Postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Shimano GRX 400 Shadow+, RD-RX400-D, 10-speed, dircet Mount, Total capacity: 41 T
Front Derailleur
Shimano GRX 400, FD-RX400-F + Adapter clamp 34,9 mm, 2-speed
Shift Levers
Shimano Tiagra, ST-4700, 2-speed
Cassette
Shimano CS-HG50-10, CS-HG50, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T
Crank
FSA Gossamer Pro, 46-30 T, BB type: BSA 68 mm / 2-Piece
Bottom Bracket
BSA, 68mm, threaded
Chain
Shimano CN-HG54
Wheels
Front Hub
Formula CL-51, Axle: QR5x100 mm
Rear Hub
Formula CL-52, Axle: QR5x135 mm
Rims
Oxygen RM-23 Disc, ETRTO: 23 x 622
Tires
Schwalbe G-One Bite RaceGuard, Tire size: 40-622, RaceGuard, Dual compound
Brakes
Brakes
TRP Spyre C, MD-C605C, Mechanical disc brake, Postmount standard
Cockpit
Stem
Oxygen Driver Road, Handlebar clamp: 31.8 mm, Angle: -6°
Handlebar
Oxygen E-Scorpo Aero Gravel, Drop: 122 mm, Reach: 70 mm, Clamp: 31.8 mm
Headset
STEVENS Race Taper 1 1/8"-1 1/2", Upper bearing cup: IS42/28.6, Lower bearing cup: IS52/40
Seat
Saddle
Oxygen Cyrius
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.46 mm | 1.47 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 286 mm | 285 mm | 280 mm | 280 mm |
| Front Center | 605 mm | 611 mm | 621 mm | 636 mm | 646 mm | 661 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 80 mm | 73 mm | 69 mm | 69 mm | 66 mm | 66 mm |
| Stack | 553 mm | 571 mm | 591 mm | 610 mm | 631 mm | 650 |
| Reach | 387 mm | 396 mm | 404 mm | 414 mm | 422 mm | 431 mm |
| Top Tube Length | 523 mm | 558 mm | 583 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 76 ° | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 424 mm | 454 mm | 483 mm | 514 mm | 544 mm | 575 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1042 mm | 1048 mm | 1058 mm | 1074 mm | 1084 mm | 1099 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 756 mm | 780 mm | 805 mm | 829 mm | 854 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Tabor is a Stevens Tabor model. Stevens launched 2 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Stevens released this model in 2023, its price was 1323$. Comparing this to the average Gravel bike price, we see that the price is 86.09% lower.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 11.4 kg (25.13 lbs), Stevens bike is much heavier than average. In conclusion, the average Gravel bike weighs 40.22% less than Tabor.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
Tabor has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Stevens Tabor 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens Tabor has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
