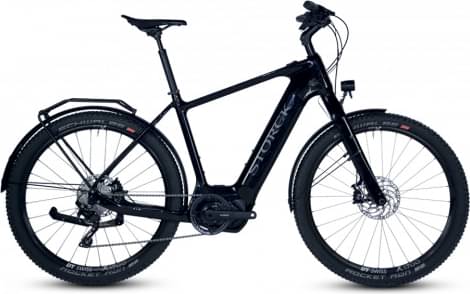

Storck Urban CTS Crossover 1×10 2024
2024 E-bike
Estimate price |
5,816$
Weight | 19.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset Deore -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT8035 504 Wh, 36 V -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Storck Urban CTS Crossover / Carbon Fiber Reinforced (CFR)/Unidirectional (UD)
Suspension Fork
Storck Urban CTS Crossover
Drivetrain
Rear Derailleur
Shimano M6000 GS
Shift Levers
Shimano M6000 10x with optical gear indicator
Cassette
Shimano HG500 11-34T
Crank
Shimano Steps E6100, 170mm (38 T)
Bottom Bracket
STEPS, press-fit
Chain
Shimano Ultegra HG54 10x
Pedals
VP-183
Wheels
Rims
Shimano/Taurus 27,5"
Tires
Schwalbe AL Grounder 27.5x2.35/60-584
Brakes
Brakes
Magura MT4 Disc 180mm/180mm
Cockpit
Stem
Ergotech Charisma 90mm, 20°
Handlebar
31.8mm Ergotec Ergo XL (width 680mm / Rise 30mm)
Grips
Ergotech Frisco 2
Headset
AIX-305 1 1/8 - 1.5"
Seat
Saddle
Storck Selle Royal Shadow
Seatpost
Ergotec SP10 31.6 / 350mm
Motor & Battery
Motor
Shimano E6100 250 W, 60 Nm
Battery
Shimano BT8035 504 Wh, 36 V
