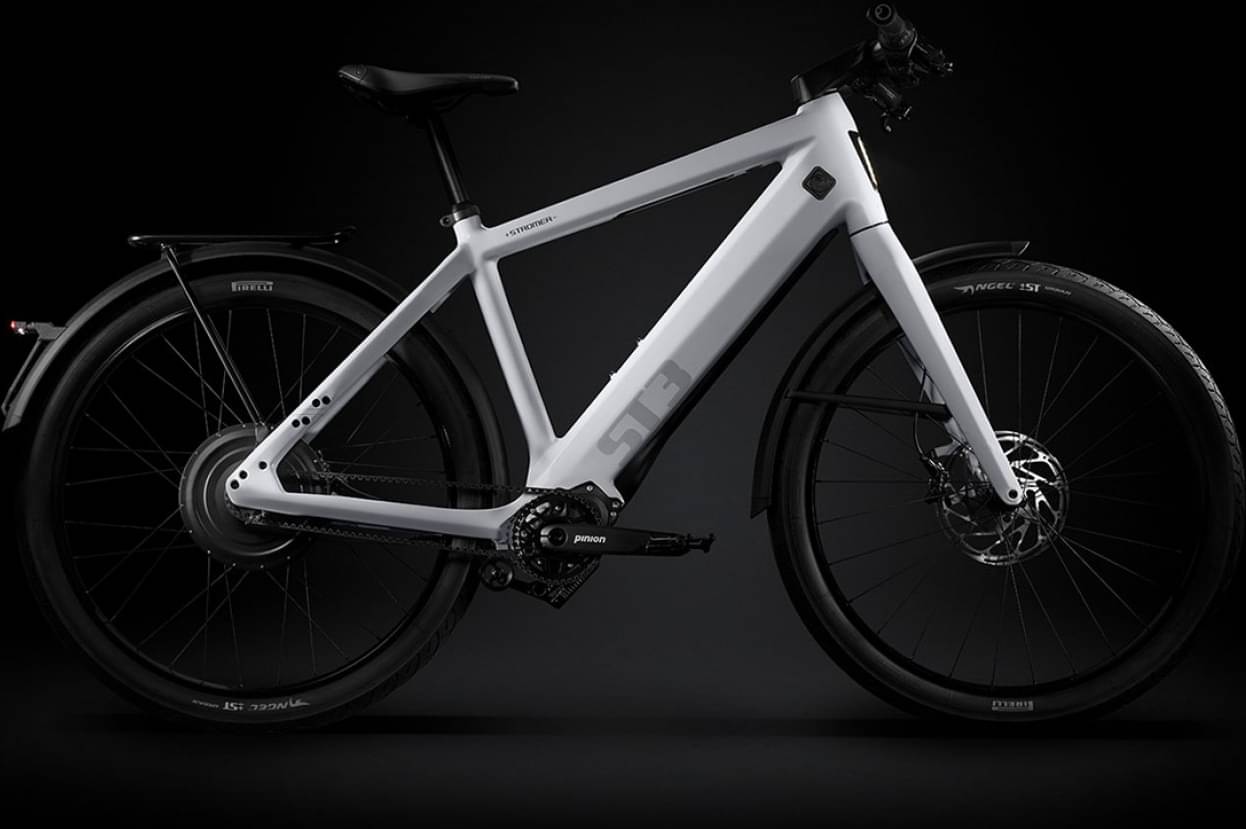

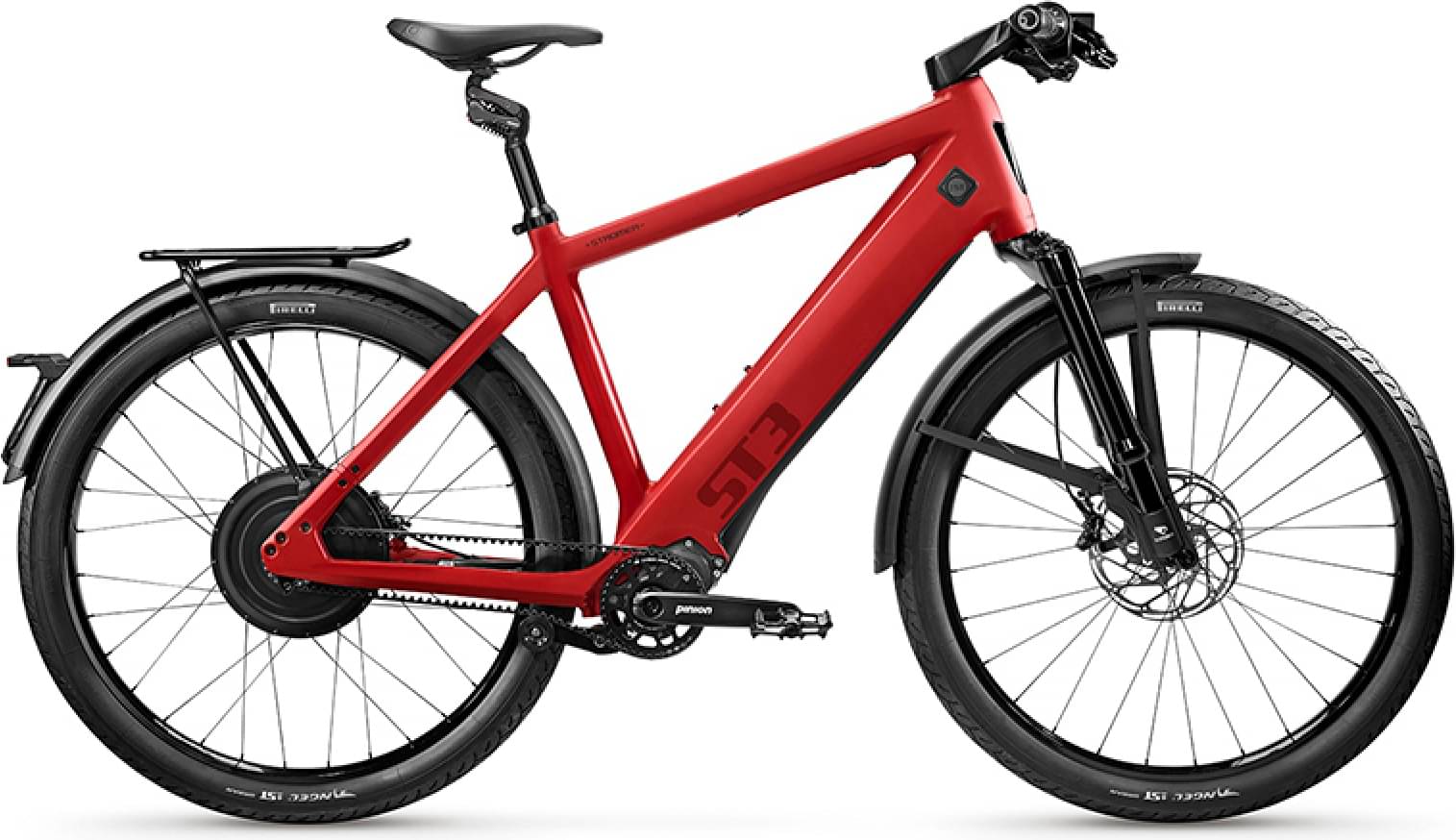

Stromer ST3 (Pinion) 2024
2024 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT XCD -
Suspension Rigid -
Motor hub-drive -
Battery BQ814 | 48 V | 814 Wh | -150 km (US: -90 miles) -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
Sport 175 - 188 cm
175cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Aluminum
Drivetrain
Shift Levers

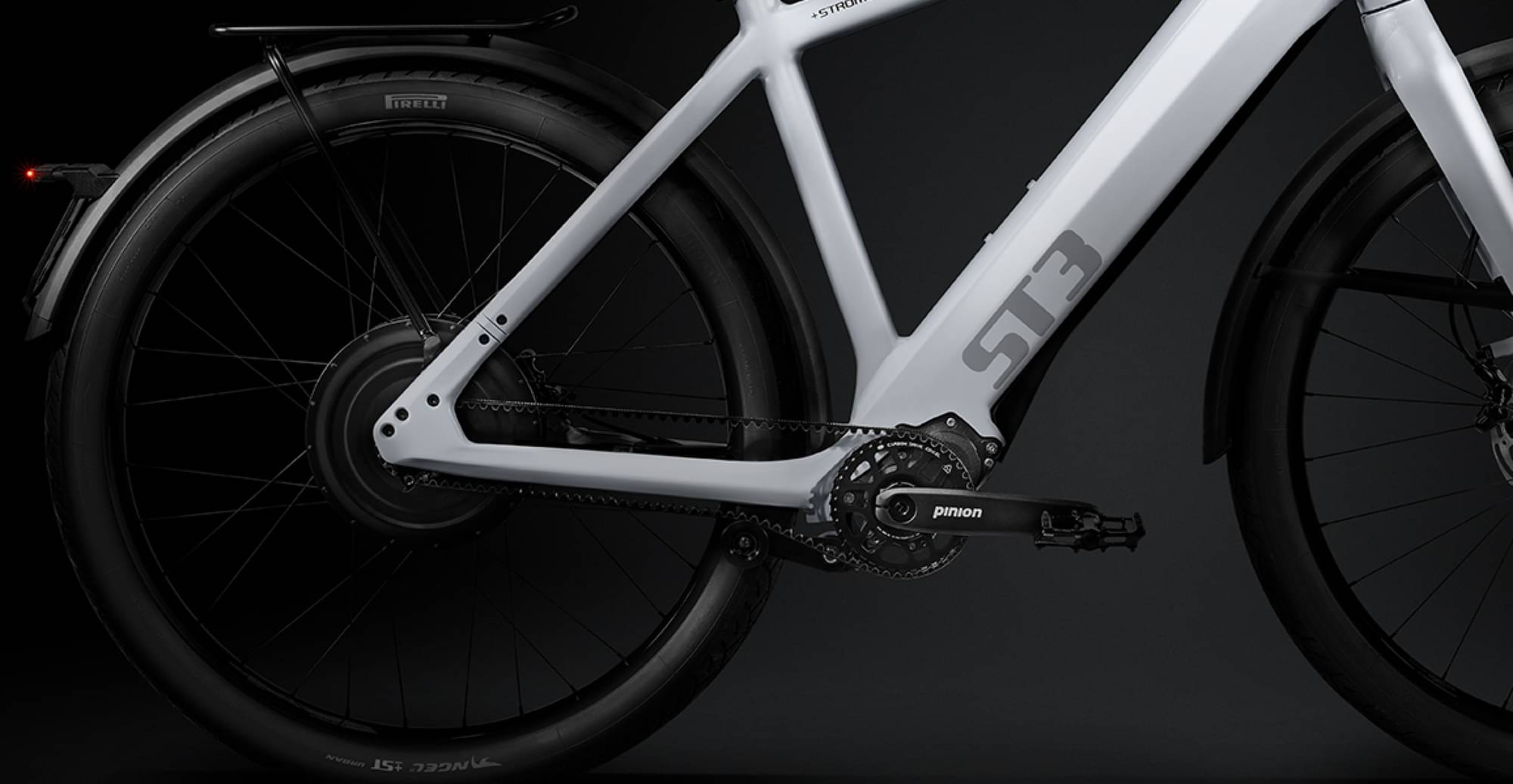

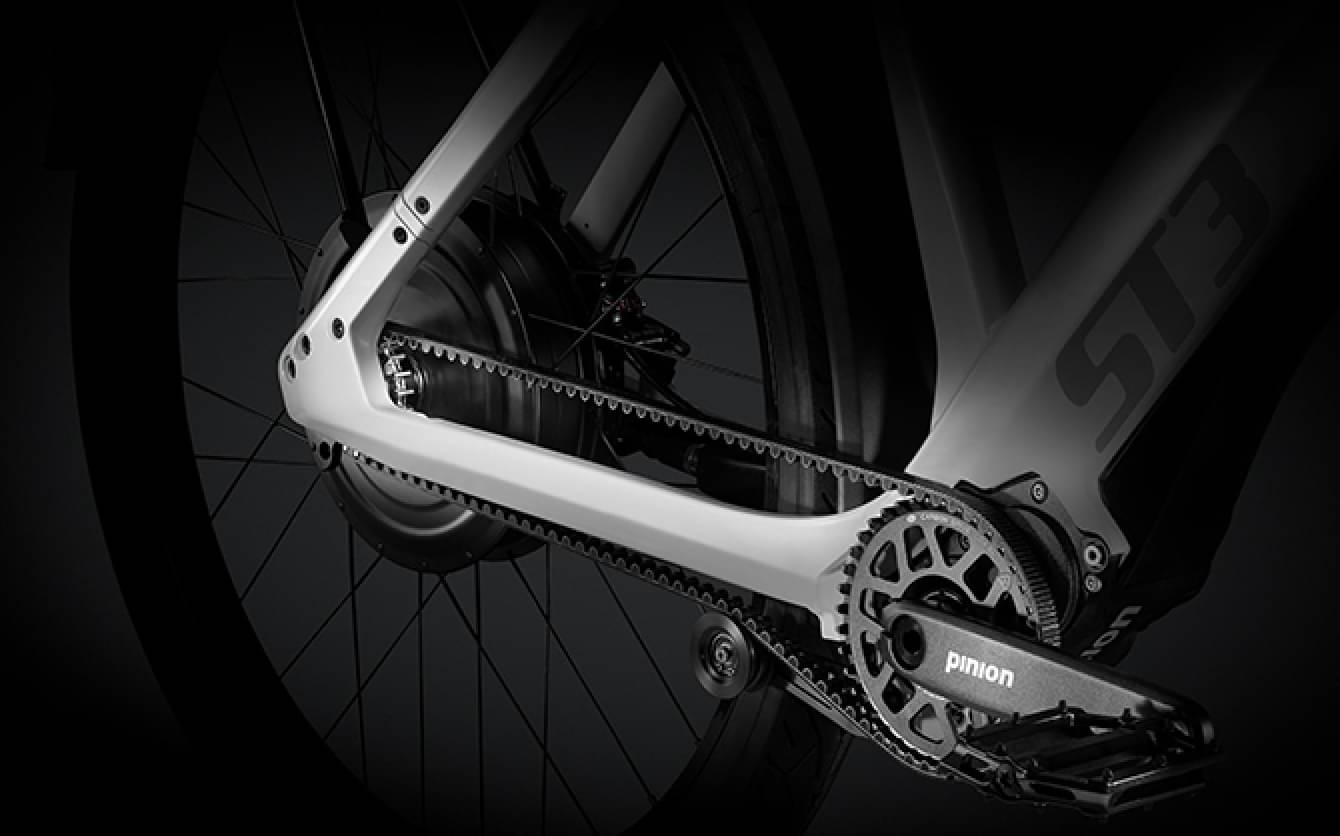

Microshift XCD Rear Derailleur 11 ¦ Pinion C1.9 XR
Crank
FSA Gossamer, 52T
Wheels
Rims
Stromer 27.5 x 35 by Rodi
Tires
Pirelli Cycl-e ST for Stromer | 57-584
Brakes
Brakes
Stromer HD942 by TRP
Cockpit
Stem
Stromer Urban +5° | 105 mm (Comfort: Stromer Comfort +20° | 110 mm)
Handlebar
Sweep Handlebar (rise 0 mm | Back Sweep 15°)
Grips
Stromer by Ergon custom GS1 all black
Seat
Saddle
Ergon SFC 30 Gel (Komfort: L)
Motor & Battery
Motor
SYNO Drive II
Battery
BQ814 | 48 V | 814 Wh | -150 km (US: -90 miles)
Charger
Stromer CR246 | 246 W (US: CR245 | 245 W)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Sport < 178 cm | Comfort < 178 cm | Sport 175 - 188 cm | Sport > 185 cm |
|---|---|---|---|---|
| Top Tube Length | 548 mm | 548 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 73.5 ° | 71.5 ° |
| Seat Tube Length | 432 mm | 432 mm | 507 mm | 559 mm |
| Head Tube Angle | 69.4 ° | 69.4 ° | 69.4 ° | 69.4 ° |
| Chainstay Length | 473 mm | 473 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Max Height | 178 cm | 178 cm | 188 cm | cm |
