Bike details
Overview
Key information split into simple groups.

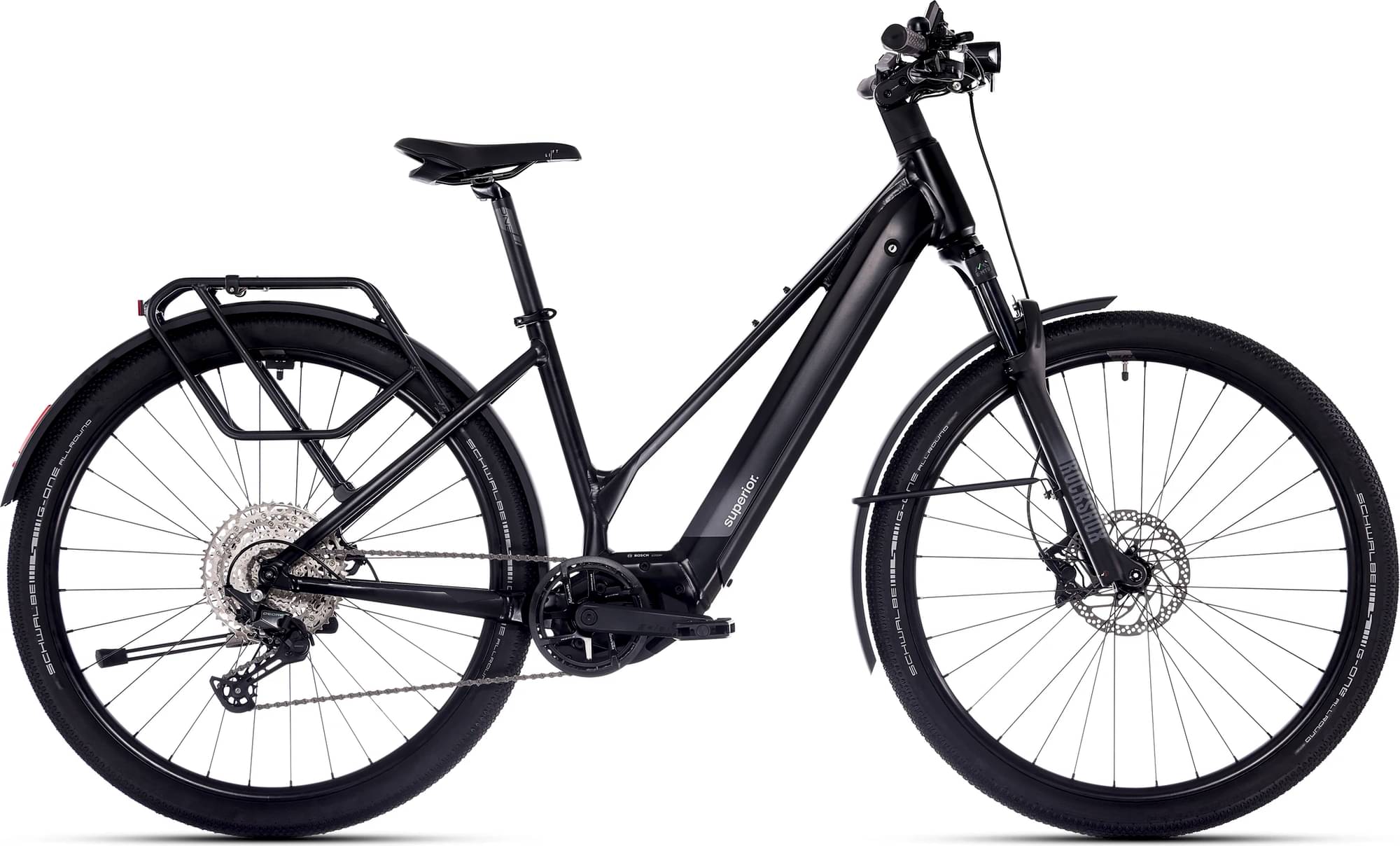

Bike summary
-
-
Frame Aluminum -
Fork RockShox Judy Silver TK -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH PowerTube, 750Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SUE05-CXBES3, Alu 6061 T6, Touring Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
RockShox Judy Silver TK, Tapered, SoloAir, 15x110mm axle, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100, Shadow Plus Design
Shift Levers
SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
ONE Race, Alloy
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO DEORE CN-M6100
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-MT410-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-MT410-B, 32H, CL, 12x148mm, THRU Type AXLE
Rims
STARS J30D, Disc, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe G-One Allround Performance, 29x2.25
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, Adjustable, with Light Holder
Handlebar
ONE Alloy, 30mm rise, 31.8mm
Headset
ACROS AZF-604, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30.9mm
Motor & Battery
Motor
BOSCH Performance Line CX, 85Nm
Battery
BOSCH PowerTube, 750Wh
Charger
BOSCH 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.404 mm |
| Front Center | 765 mm | 773 mm |
| Rake | 35 mm | 35 mm |
| Trail | 111 mm | 111 mm |
| Stack | 635 mm | 653 mm |
| Reach | 465 mm | 465 mm |
| Top Tube Length | 590 mm | 610 mm |
| Seat Tube Angle | 78.9 ° | 77.5 ° |
| Seat Tube Length | 393 mm | 431 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1205 mm | 1213 mm |
| Bottom Bracket Drop | 51 mm | 51 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 185 cm |
