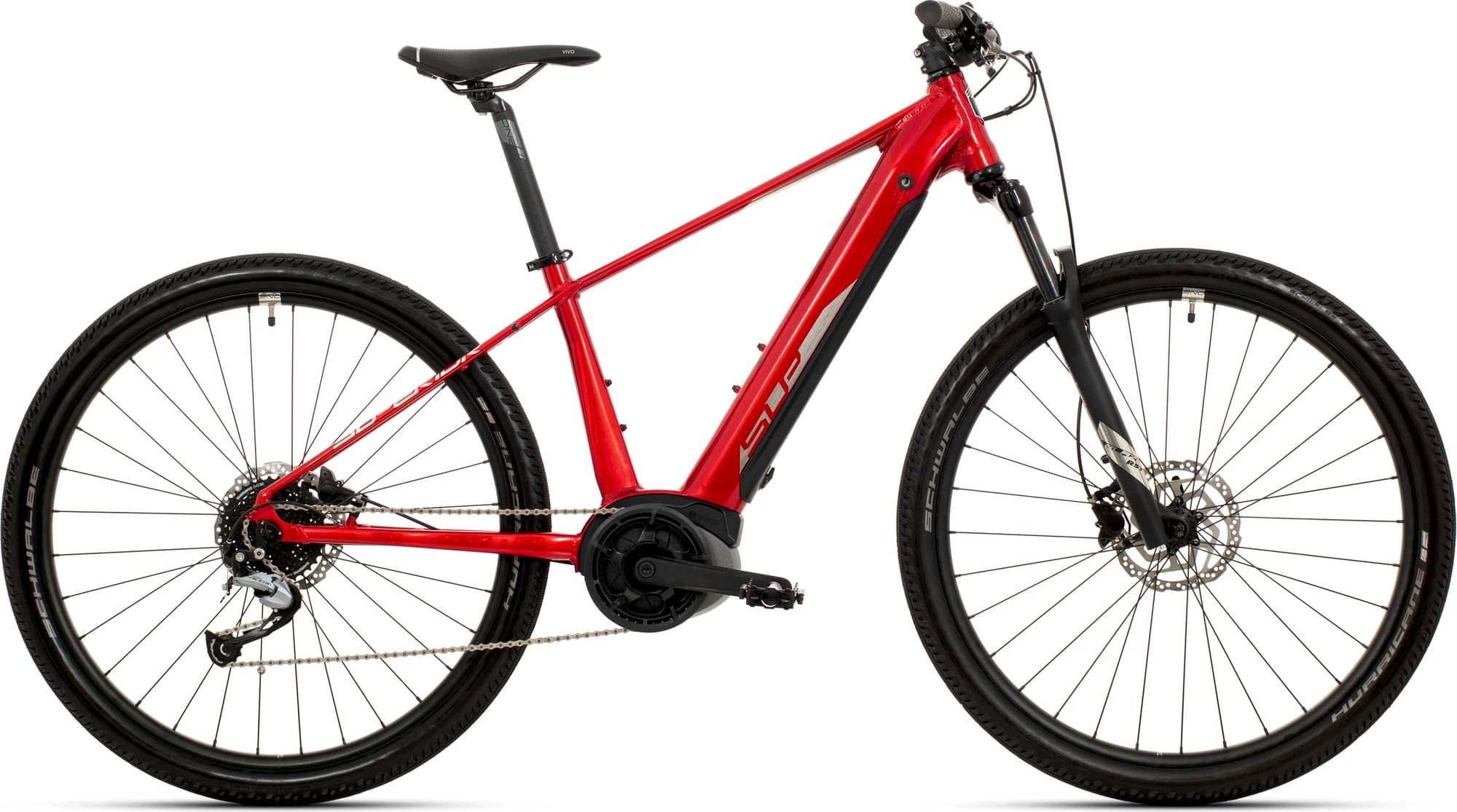

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery BOSCH PowerTube, 625Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 181cm
LG
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Sport eMTB Geometry, Smooth Welding, Bosch system Powertube 625Wh battery ready, Inner Cable Routing
Suspension Fork
RST Blaze, 1-1/8", 100mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Shift Levers
SHIMANO ALIVIO SL-M3100-R, RAPIDFIRE Plus, 9-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-36T
Crank
ONE Sport, Alloy
Bottom Bracket
Bosch, press-fit
Chain
KMC e9S
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J30D, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
Schwalbe Hurricane Performance, 29x2.25, ADDIX
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE Sport, Alloy, 31.8mm, -8°°
Handlebar
ONE Alloy, 25mm rise, 31.8mm
Headset
ACROS AZX-254, ZS44/28.6 - EC49/30; BlockLock
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30.9mm
Motor & Battery
Motor
BOSCH Active Line Plus, 50Nm
Battery
BOSCH PowerTube, 625Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.586 mm | 1.507 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 686 mm | 706 mm |
| Rake | 46 mm | 45 mm |
| Trail | 102 mm | 103 mm |
| Stack | 636 mm | 636 mm |
| Reach | 401 mm | 422 mm |
| Top Tube Length | 590 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm |
| Chainstay Length | 500 mm | 500 mm |
| Wheelbase | 1180 mm | 1200 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 170 cm | 179 cm |
| Rider Max Height | 181 cm | 190 cm |
