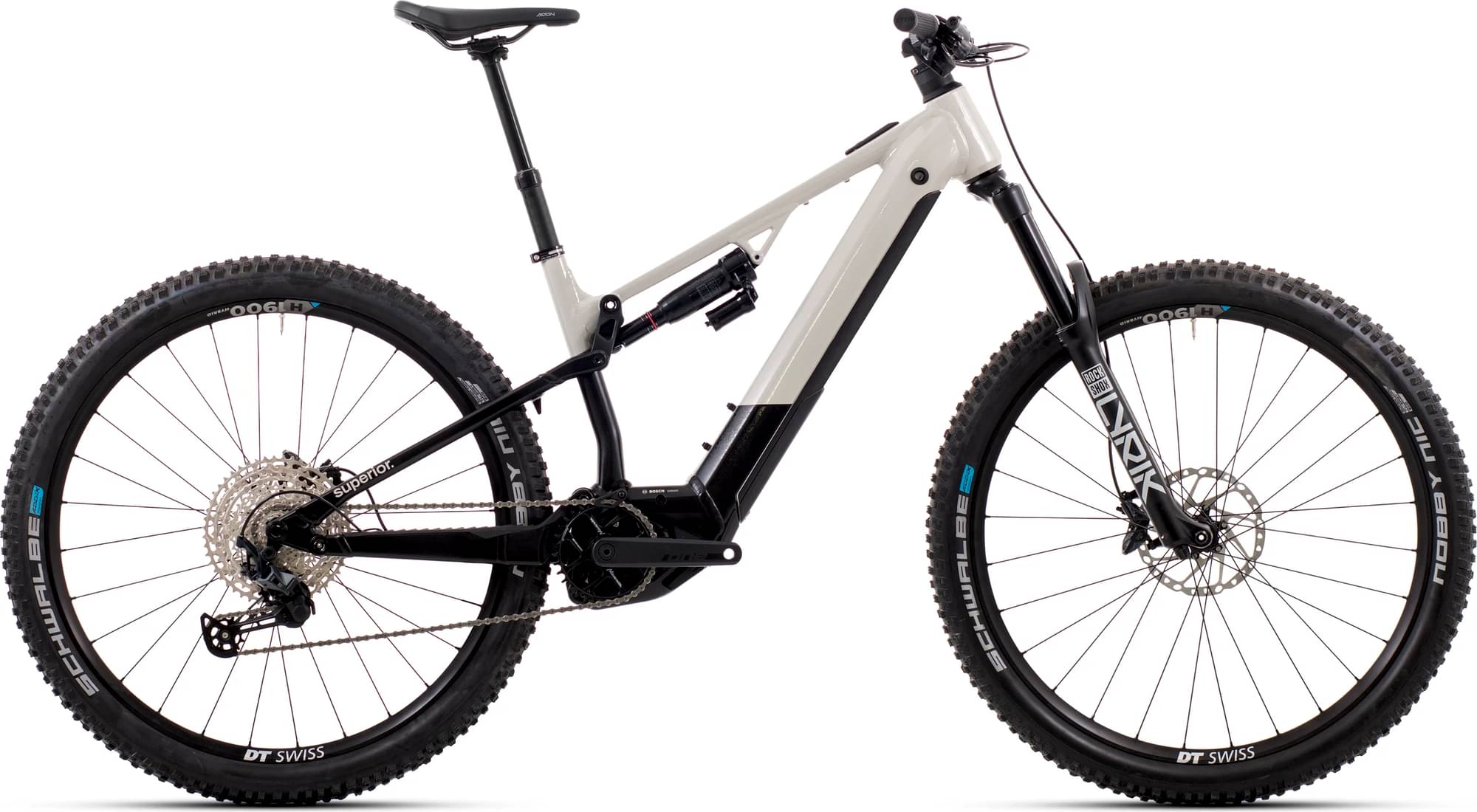

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 140mm -
Fork RockShox Lyrik Select
-
Groupset SLX, Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH PowerTube, 750Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SUE03-CXBES3, Alu X6 Ultralite MTB Trail, Advanced e-MTB Geometry, Travel 160/140 mm, BOSCH CX Performance 5G ready, Integrated battery up to 750Wh, 3D alloy one pice link, Alloy swingarm, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox Lyrik Select RC, Tapered, DebonAir, 15x110mm axle, 160mm travel
Rear Shock
RockShox Super Deluxe Select R, size 230x65mm
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100, Shadow Plus Design
Shift Levers
SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
ONE Race, Alloy
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss H 1900 SPLINE®, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Nobby Nic Evo, SuperTrail, TL-Easy, 29x2.60", ADDIX SpeedGrip
Brakes
Brakes
SHIMANO M6120, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 35mm, 0°
Handlebar
ONE Alloy, 12mm rise, 35mm
Headset
ACROS AZX-1051S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings
Seat
Saddle
Fizi:k Aidon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Motor & Battery
Motor
BOSCH Performance Line CX, 85Nm
Battery
BOSCH PowerTube, 750Wh
Charger
BOSCH 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.344 mm | 1.289 mm | 1.238 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm |
| Front Center | 806 mm | 826 mm | 846 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm |
| Stack | 625 mm | 625 mm | 625 mm |
| Reach | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 420 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1251 mm | 1271 mm | 1291 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 179 cm | 189 cm |
| Rider Max Height | 181 cm | 191 cm | 200 cm |
