Bike details
Overview
Key information split into simple groups.

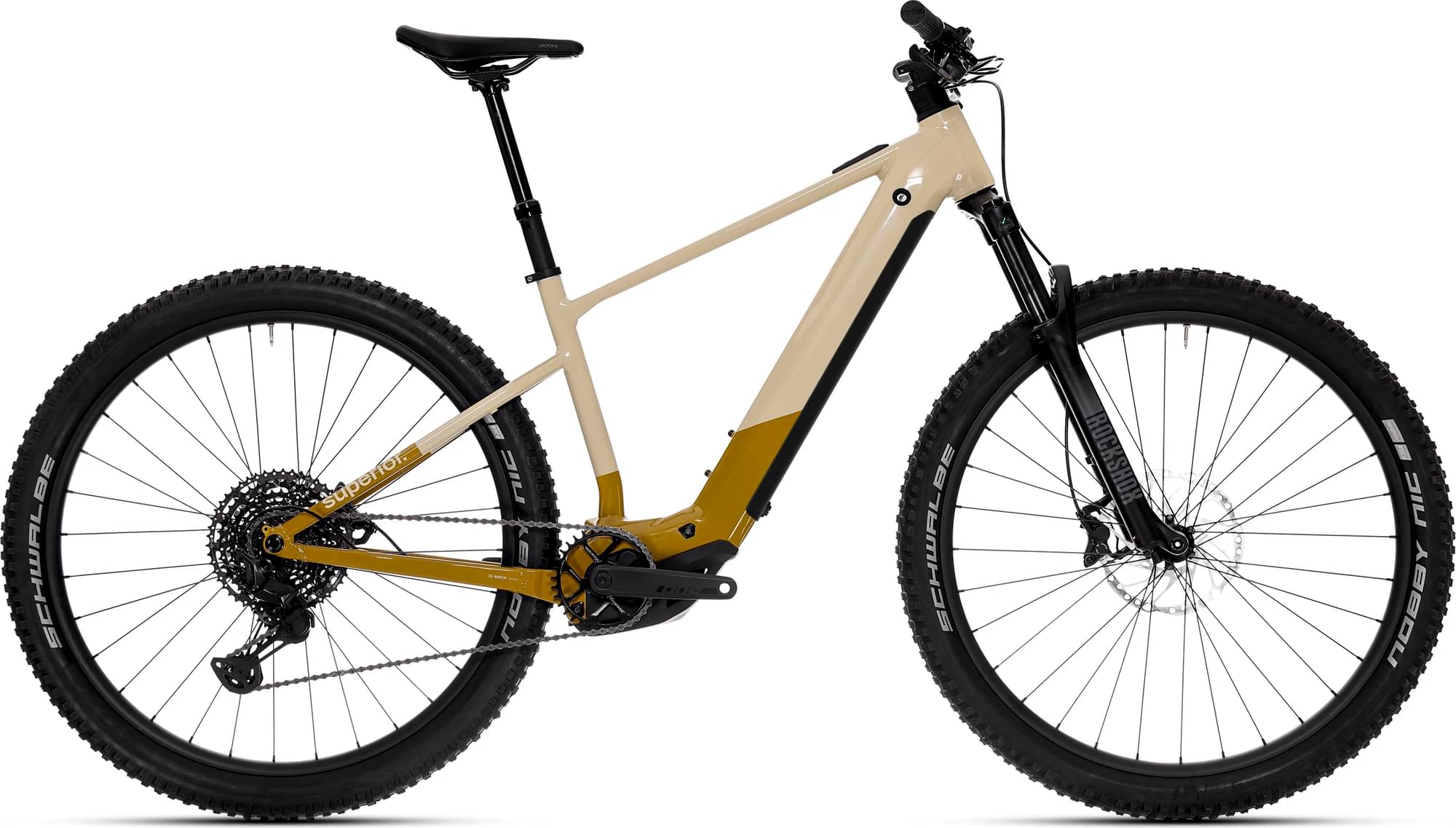

Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, CUES -
Suspension Hardtail -
Motor Bosch 600W 100Nm mid-drive -
Battery BOSCH PowerTube, 800Wh -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-E40-01, Alu X6 Ultralite, Advanced eMTB Geometry, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropper seat post ready
Suspension Fork
RockShox RECON Silver RL, Tapered, SoloAir, 15x110mm axle, 120mm travel
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8130, Shadow Plus Design
Shift Levers
SHIMANO CUES SL-U6000-11R, RAPIDFIRE Plus, 11-speed
Cassette
SHIMANO CUES CS-LG400, 11-speed, 11-50T
Crank
ONE Race, Alloy
Chain
SHIMANO CN-LG500
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-TC500-HM-B, 32H, CL, 12X148mm, THRU Type AXLE
Rims
STARS J30D, Disc, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe Wicked Will Performance, 29x2.40", ADDIX
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 35mm, 0°
Handlebar
ONE Alloy, 20mm rise, 35mm
Headset
ACROS AZX-596R1S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings
Seat
Saddle
Fizi:k Aidon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Motor & Battery
Motor
BOSCH Performance CX, 100Nm
Battery
BOSCH PowerTube, 800Wh
Charger
BOSCH 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.39 mm | 1.332 mm | 1.312 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 779 mm | 779 mm | 799 mm | 827 mm |
| Rake | 52 mm | 53 mm | 53 mm | 53 mm |
| Trail | 110 mm | 109 mm | 109 mm | 109 mm |
| Stack | 638 mm | 638 mm | 638 mm | 656 mm |
| Reach | 460 mm | 459 mm | 479 mm | 500 mm |
| Top Tube Length | 592 mm | 612 mm | 632 mm | 642 mm |
| Seat Tube Angle | 78 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1215 mm | 1215 mm | 1235 mm | 1264 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
