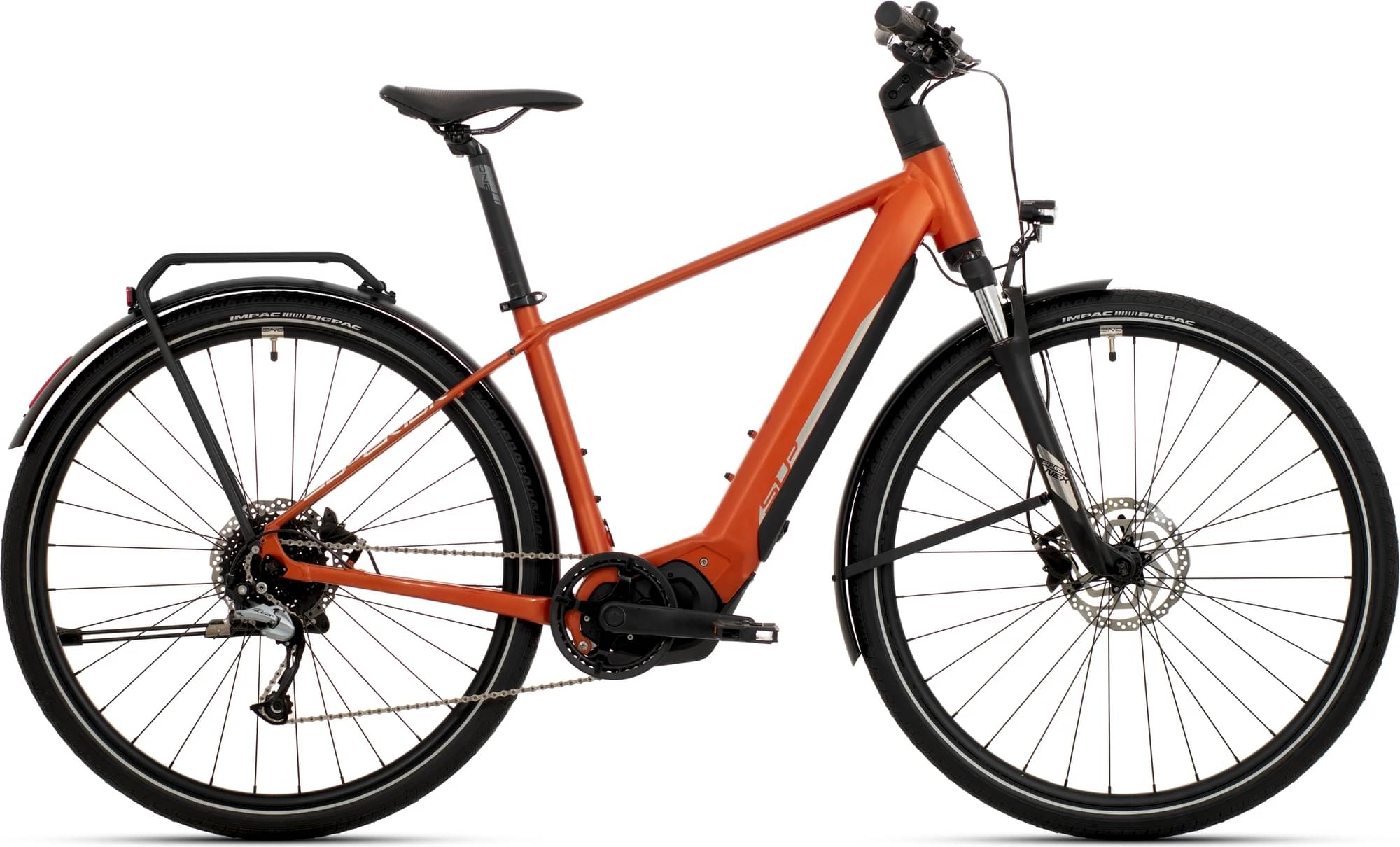

Superior eXR 6030 Touring 2024
2024 E-bike
Estimate price |
3,082$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST VOLANT -
Groupset Alivio -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery DARFON, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Advanced eMTB Geometry, SHIMANO STEPS ready, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RST Volant, Tapered, QR Type, 60mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Shift Levers
SHIMANO ALIVIO SL-M3100-R, RAPIDFIRE Plus, 9-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-36T
Crank
SHMANO FC-E5000
Bottom Bracket
STEPS, press-fit
Chain
KMC e9S
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J26S, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
Schwalbe G-One Bite, RaceGuard, 50-622, Reflective Tape
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, 0°
Handlebar
ONE Alloy, 20mm rise, 31.8mm
Headset
ACROS AZF-604, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 40Nm
Battery
DARFON, 504Wh
Charger
DARFON 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.401 mm | 1.339 mm |
| Front Center | 683 mm | 703 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 604 mm | 604 mm | 604 mm |
| Reach | 411 mm | 431 mm | 451 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1126 mm | 1146 mm | 1166 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 179 cm | 189 cm |
| Rider Max Height | 181 cm | 191 cm | 200 cm |
