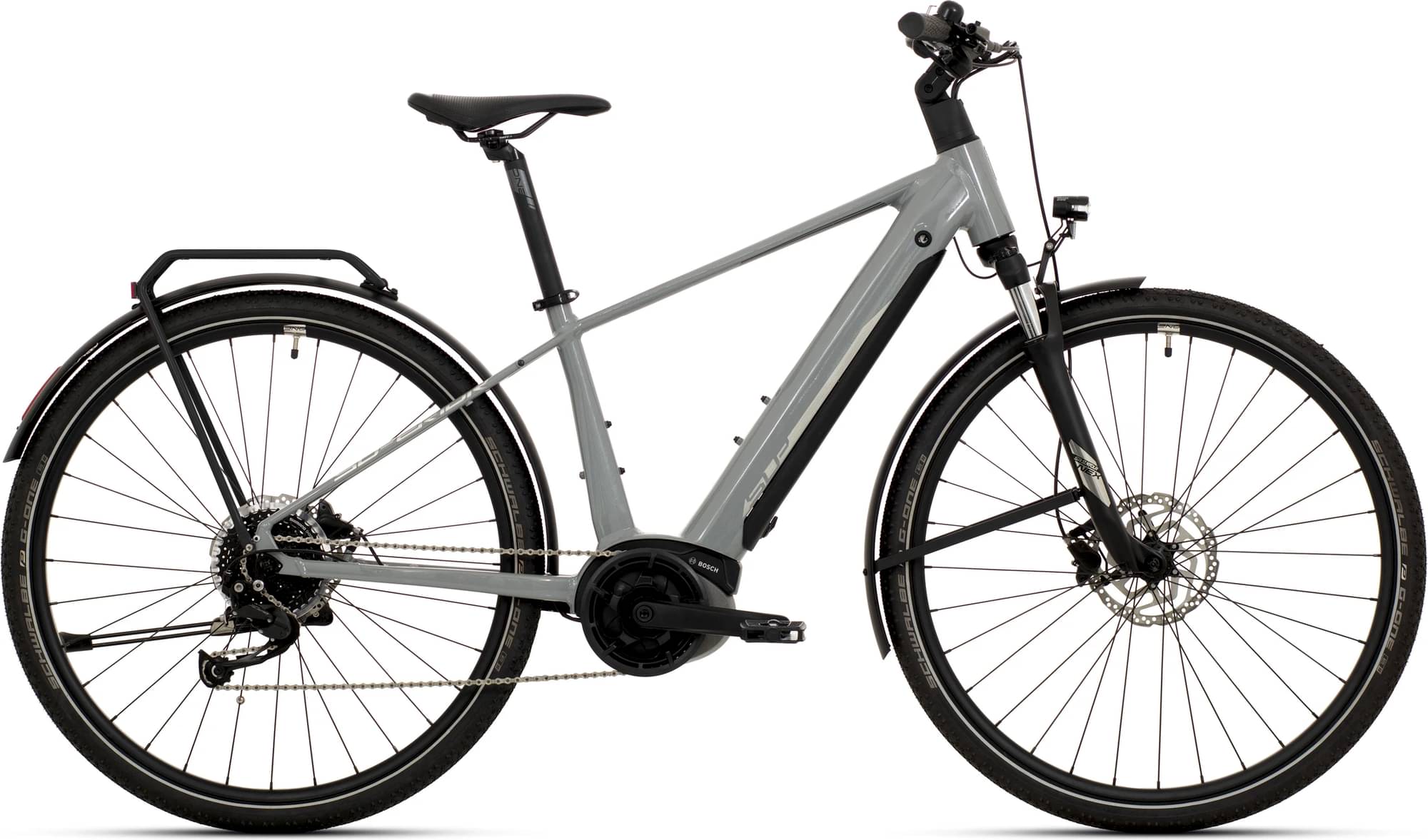

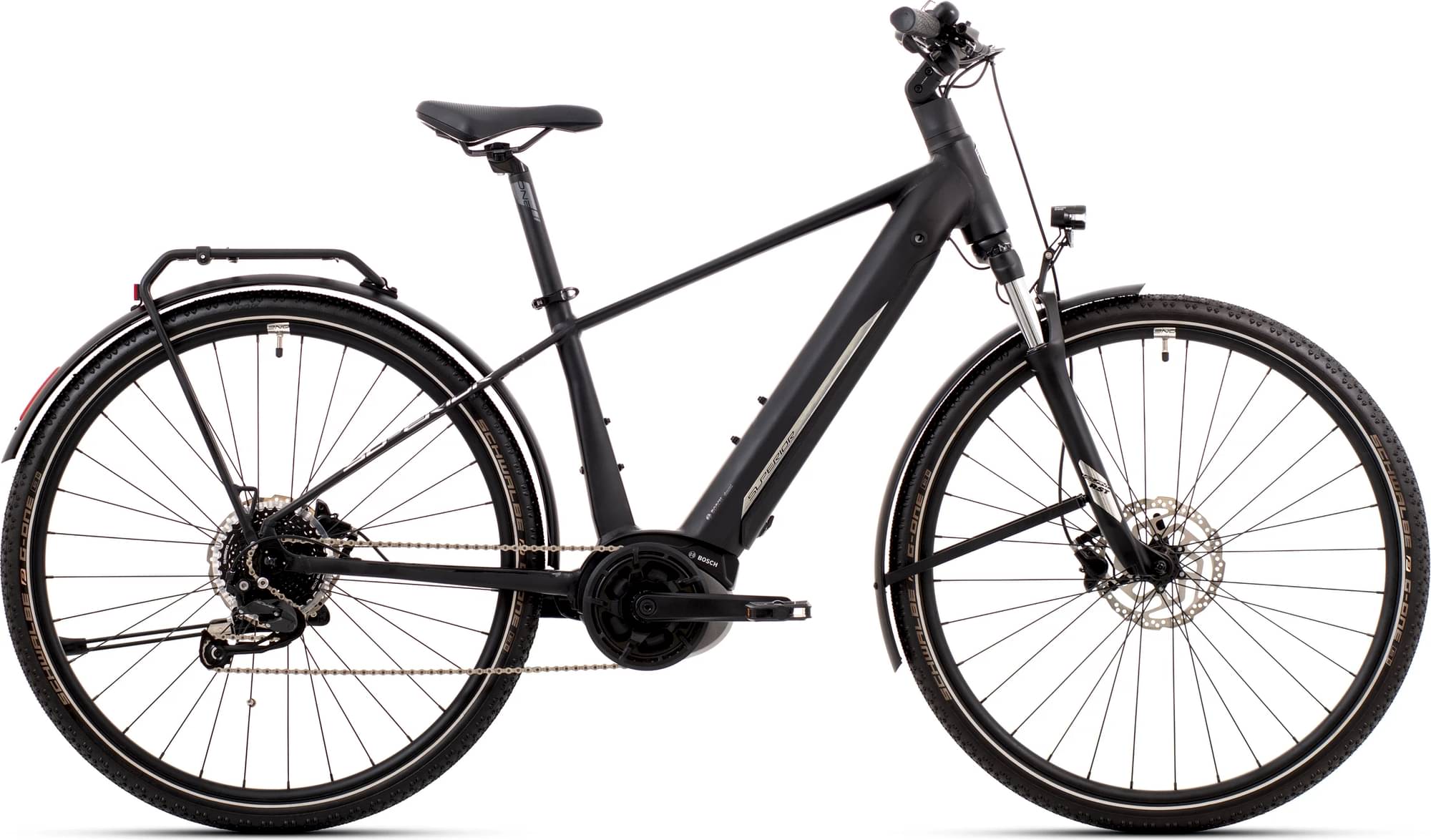

Superior eXR 6050 B Touring 2024
2024 E-bike
Estimate price |
3,373$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST VOLANT -
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery BOSCH PowerTube, 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
RST Volant, Tapered, 15x100mm axle, 80mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Shift Levers
SHIMANO ALIVIO SL-M3100-R, RAPIDFIRE Plus, 9-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-36T
Crank
ONE Sport, Alloy
Bottom Bracket
Bosch, press-fit
Chain
KMC e9S
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J26S, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
Schwalbe G-One Bite, RaceGuard, 50-622, Reflective Tape
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, Adjustable, with Light Holder
Handlebar
ONE Alloy, 20mm rise, 31.8mm
Headset
ACROS AZF-604, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Motor & Battery
Motor
BOSCH Active Line Plus, 50Nm
Battery
BOSCH PowerTube, 500Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.566 mm | 1.51 mm | 1.461 mm |
| Front Center | 691 mm | 718 mm | 739 mm |
| Rake | 46 mm | 48 mm | 45 mm |
| Trail | 93 mm | 90 mm | 94 mm |
| Stack | 625 mm | 634 mm | 643 mm |
| Reach | 399 mm | 420 mm | 440 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73.3 ° | 73.5 ° |
| Seat Tube Length | 457 mm | 510 mm | 559 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1185 mm | 1212 mm | 1233 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 179 cm | 189 cm |
| Rider Max Height | 181 cm | 191 cm | 200 cm |
