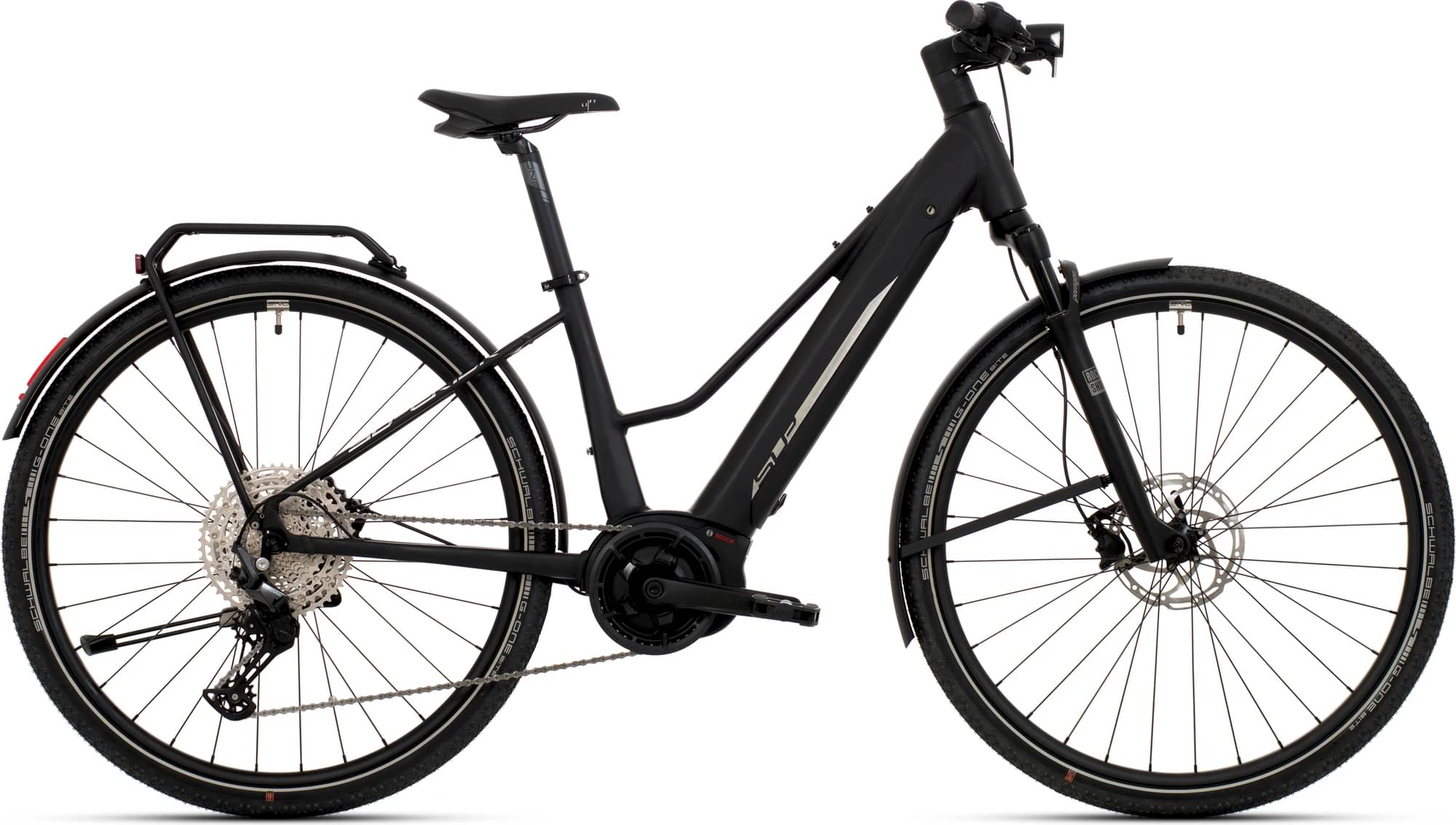

Superior eXR 6090 BL Touring 2024
2024 E-bike
Estimate price |
4,420$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RockShox Paragon Gold RL -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 65Nm mid-drive -
Battery BOSCH PowerTube, 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
RockShox Paragon Gold RL, Tapered, SoloAir, QR Type, 65mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100, Shadow Plus Design
Shift Levers
SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
ONE Sport, Alloy
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO DEORE CN-M6100
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-MT401, 32H, CL, M10x135mm, QR Type
Rims
STARS J26S, Disc, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe G-One Bite, RaceGuard, 50-622, Reflective Tape
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, 0°
Handlebar
ONE Alloy, 20mm rise, 31.8mm
Headset
ACROS AZX-1051, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Motor & Battery
Motor
BOSCH Performance Line, 65Nm
Battery
BOSCH PowerTube, 625Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.554 mm | 1.524 mm |
| Front Center | 675 mm | 702 mm |
| Rake | 47 mm | 46 mm |
| Trail | 92 mm | 93 mm |
| Stack | 606 mm | 625 mm |
| Reach | 390 mm | 410 mm |
| Top Tube Length | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.9 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 140 mm |
| Chainstay Length | 500 mm | 500 mm |
| Wheelbase | 1169 mm | 1196 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
