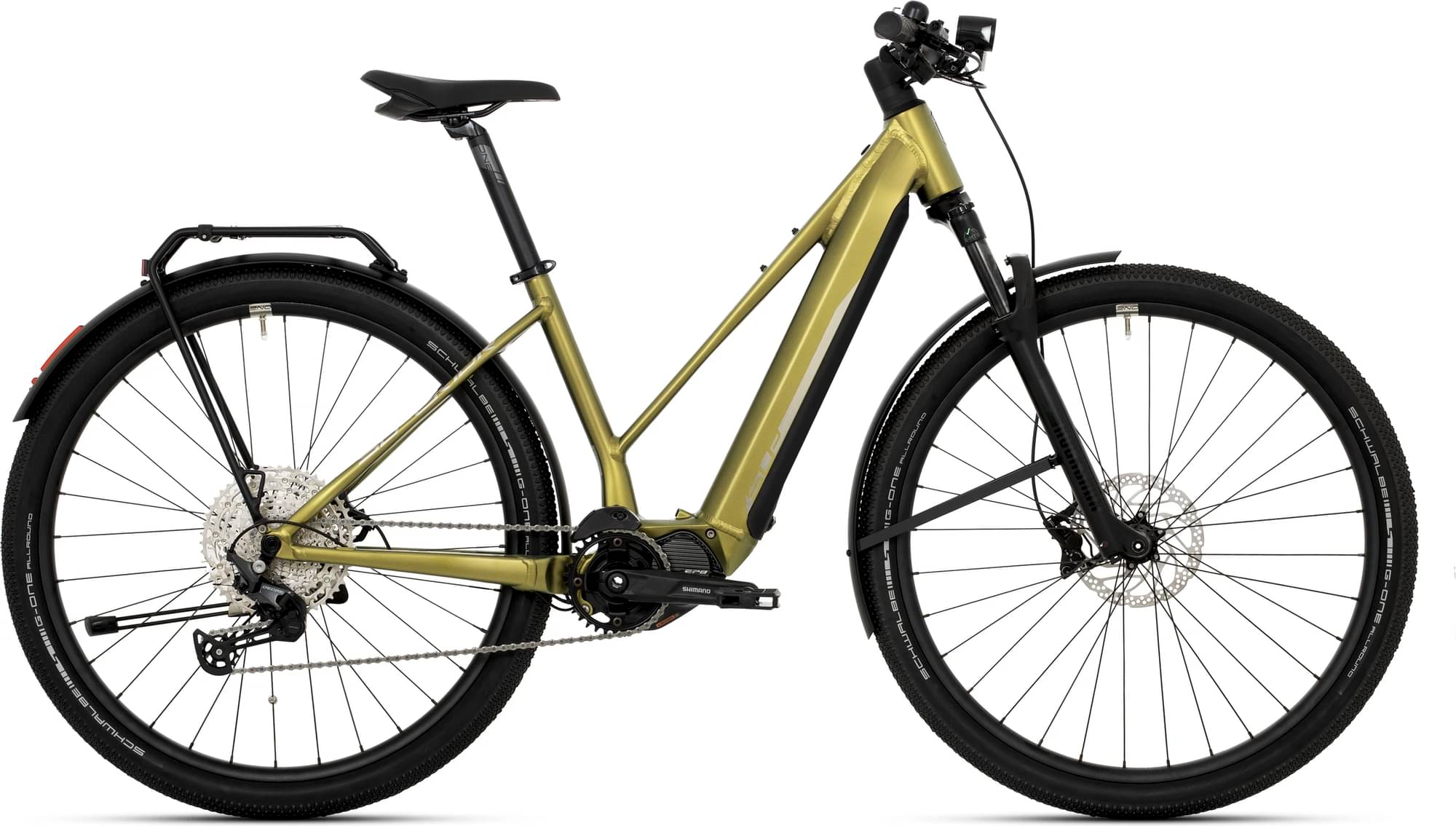

Superior eXR 6090 L Touring 2024
2024 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RockShox Judy Silver TK -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery DARFON, 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu X6 Ultralite, Advanced eMTB Geometry, SHIMANO STEPS ready, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox Judy Silver TK, Tapered, SoloAir, 15x110mm axle, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100, Shadow Plus Design
Shift Levers
SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
SHMANO FC-EM600
Bottom Bracket
STEPS, press-fit
Chain
SHIMANO DEORE CN-M6100
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-MT410-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-MT410-B, 32H, CL, 12x148mm, THRU Type AXLE
Rims
STARS J30D, Disc, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe G-One Allround Performance, 29x2.25
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, 0°
Handlebar
ONE Alloy, 20mm rise, 31.8mm
Headset
ACROS AZX-1051, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30,9mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 85Nm
Battery
DARFON, 504Wh
Charger
DARFON 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.452 mm |
| Front Center | 674 mm | 688 mm |
| Rake | 47 mm | 46 mm |
| Trail | 85 mm | 86 mm |
| Stack | 604 mm | 604 mm |
| Reach | 401 mm | 416 mm |
| Top Tube Length | 580 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 457 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1117 mm | 1131 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm |
| Rider Max Height | 176 cm | 185 cm |
