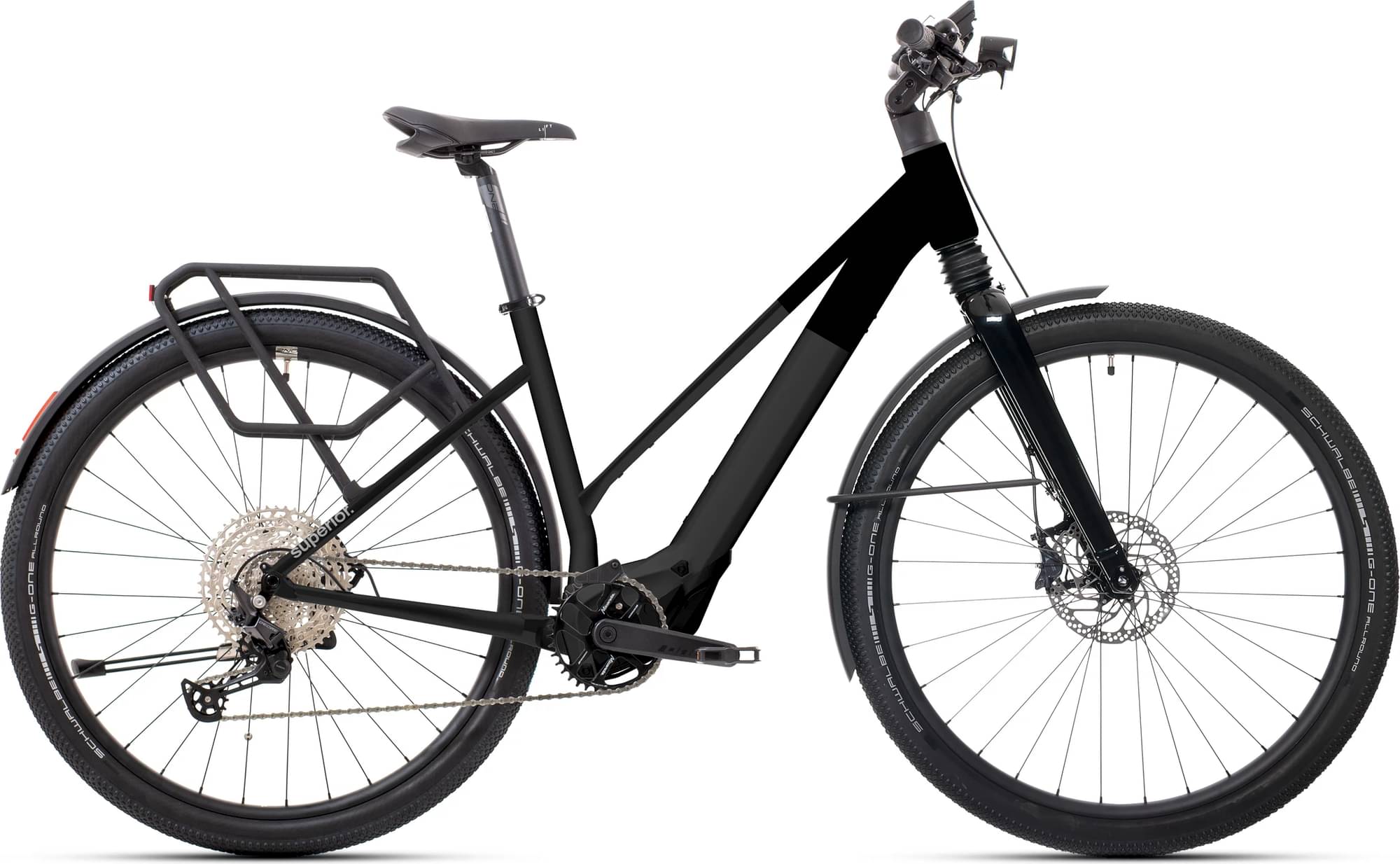

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Bosch 600W 55Nm mid-drive -
Battery BOSCH CompactTube, 400Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-E41-01, Alu 6061 T6, Touring Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing
Suspension Fork
HODAKA Monoshock, 1.5", 15x110mm axle, 45mm travel
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U4000, Shadow Design
Shift Levers
SHIMANO CUES SL-U4000-9R, RAPIDFIRE Plus, 9-speed
Cassette
SHIMANO CUES CS-LG300, 9-speed, 11-46T
Crank
ONE Race, Alloy
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO CN-LG500
Pedals
VP Components VP-836
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-TC500-HM-B, 32H, CL, 12X148mm, THRU Type AXLE
Rims
STARS J30D, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
Schwalbe G-One Allround Performance, 29x2.25
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 31.8mm, Adjustable, with Light Holder
Handlebar
ONE Alloy, 30mm rise, 31.8mm
Headset
ACROS AZF-604, ZS56/28.6 - ZS56/40, BlockLock 120°
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30.9mm
Motor & Battery
Motor
BOSCH Performance SX, 55Nm
Battery
BOSCH CompactTube, 400Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.663 mm | 1.615 mm | 1.568 mm |
| Front Center | 659 mm | 680 mm | 701 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 642 mm | 651 mm | 660 mm |
| Reach | 386 mm | 403 mm | 421 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 457 mm | 496 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1102 mm | 1123 mm | 1144 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 169 cm |
| Rider Max Height | 165 cm | 171 cm | 180 cm |
