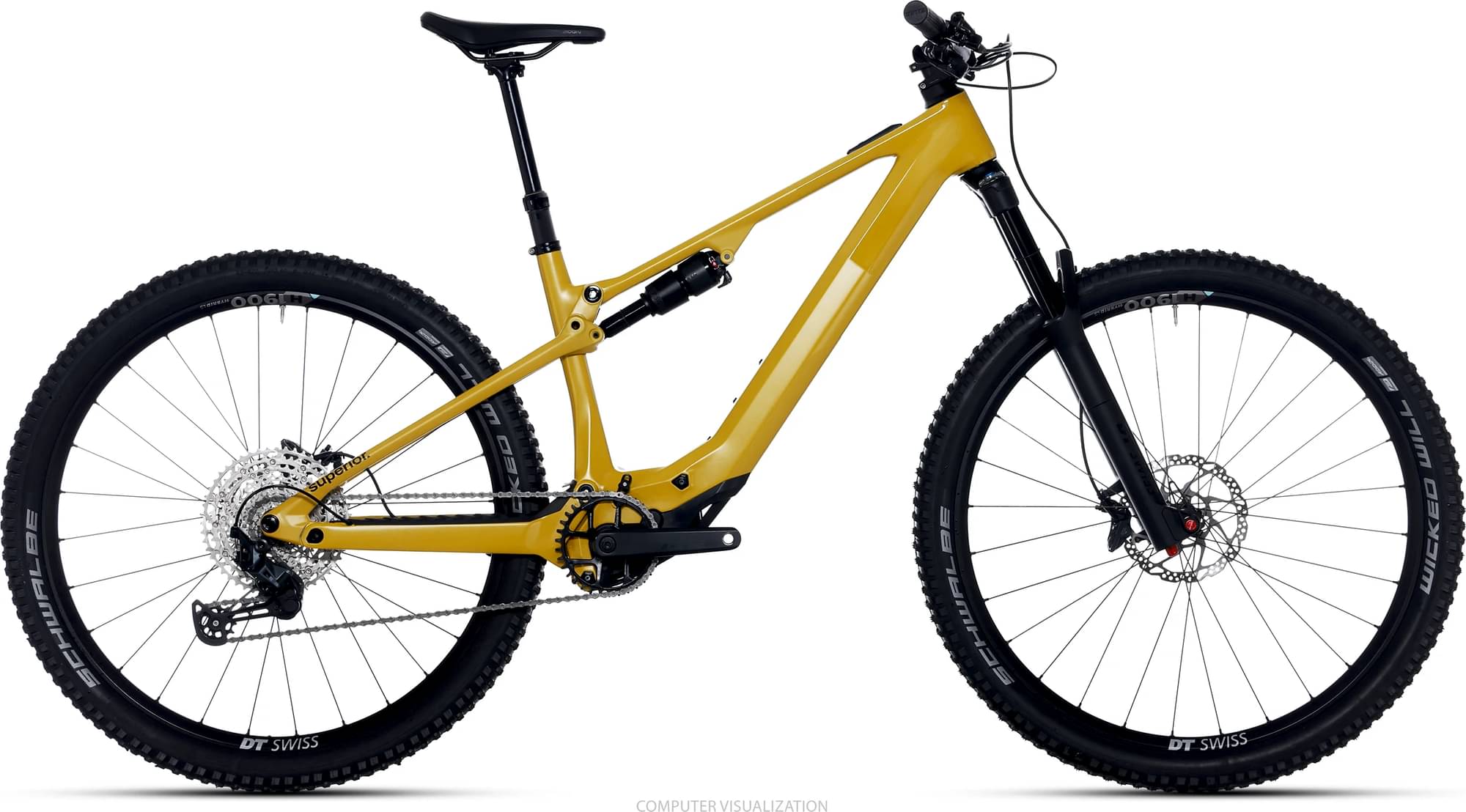

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery BOSCH CompactTube, 400Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-E10-01, Carbon MTB DC; Advanced Down Country Geometry, Travel 140 mm, Integrated Cable routing, BB92, 3D one pice link, Carbon swingarm, UDH dropout, Boost Thru Axle 148x12 mm, Dropped seat post ready
Suspension Fork
RockShox 35 Silver TK, Tapered, SoloAir, 15x110mm axle, 140mm travel
Rear Shock
RockShox Deluxe Select+ RT, size 210x55mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100, Shadow Plus Design
Shift Levers
SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
ONE Race, Alloy
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO DEORE CN-M6100
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-TC500-MS-B, 32H, CL, 12X148mm, THRU Type AXLE
Rims
WTB, KOM LIGHT TEAM i30, Disc, 32H, Tubeless Ready
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe Wicked Will Performance, 29x2.40", ADDIX
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 35mm, 0°
Handlebar
ONE Alloy, 20mm rise, 35mm
Headset
ACROS AZX-596R1S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings
Seat
Saddle
Fizi:k Aidon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Motor & Battery
Motor
BOSCH Performance SX, 55Nm
Battery
BOSCH CompactTube, 400Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.347 mm | 1.301 mm | 1.298 mm | 1.252 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 775 mm | 791 mm | 826 mm | 853 mm |
| Rake | 45 mm | 47 mm | 42 mm | 40 mm |
| Trail | 129 mm | 127 mm | 132 mm | 134 mm |
| Stack | 606 mm | 605 mm | 636 mm | 645 mm |
| Reach | 450 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 574 mm | 590 mm | 625 mm | 652 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 393 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1223 mm | 1239 mm | 1274 mm | 1301 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
