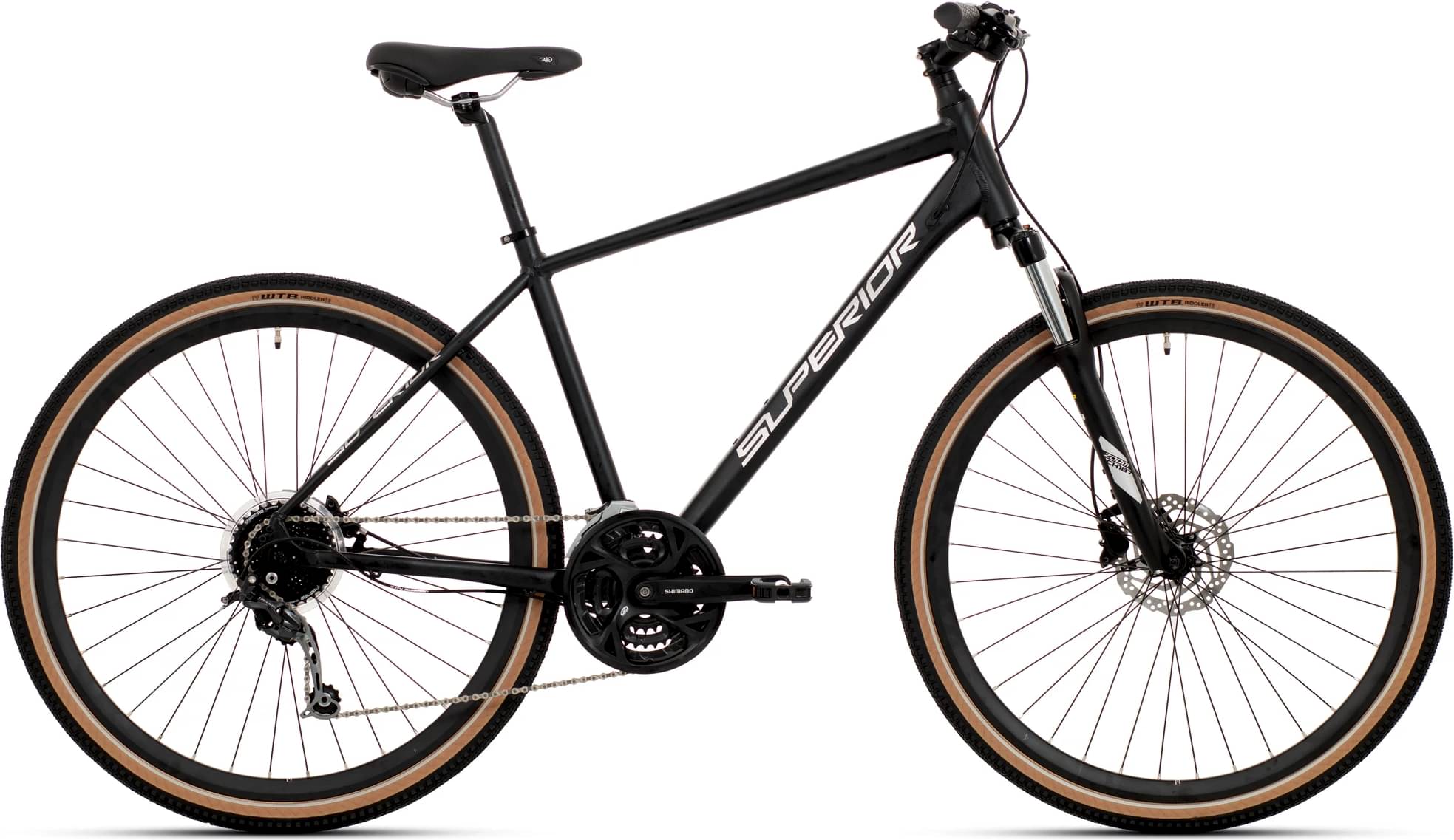

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Zoom
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 171cm
LG
169cm - 181cm
XL
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6 Double Butted, Advanced Touring Geometry, Integrated Cable Routing, BB BSA
Suspension Fork
ZOOM 187D AMS, 1-1/8", Coil, QR Type, 60mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Front Derailleur
SHIMANO ACERA FD-T3000, Top Swing, DUAL Pull
Shift Levers
SHIMANO ALIVIO SL-M3100, RAPIDFIRE Plus, 3-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-34T
Crank
SHIMANO FC-M371, 48-36-26T
Bottom Bracket
SHIMANO BB-UN101, 122.5mm, BSA, shell 73mm
Chain
KMC X9
Pedals
Marwi SP-823
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J19SZ, 32H
Spokes
SAPIM Leader, Stainless Black
Tires
WTB Riddler Comp, 29x1.75", Reflective tape
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, ±15°
Handlebar
ONE Alloy, 12mm rise, 31.8mm
Headset
FSA NO.10P, Semi-Cartrige, 1-1/8
Seat
Saddle
Selle Royal Rio Plus
Seatpost
ONE, Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.443 mm | 1.44 mm |
| Front Center | 665 mm | 678 mm | 682 mm |
| Rake | 54 mm | 54 mm | 65 mm |
| Trail | 70 mm | 70 mm | 51 mm |
| Stack | 600 mm | 606 mm | 609 mm |
| Reach | 410 mm | 420 mm | 423 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1102 mm | 1115 mm | 1119 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm |
| Rider Max Height | 171 cm | 181 cm | 190 cm |
