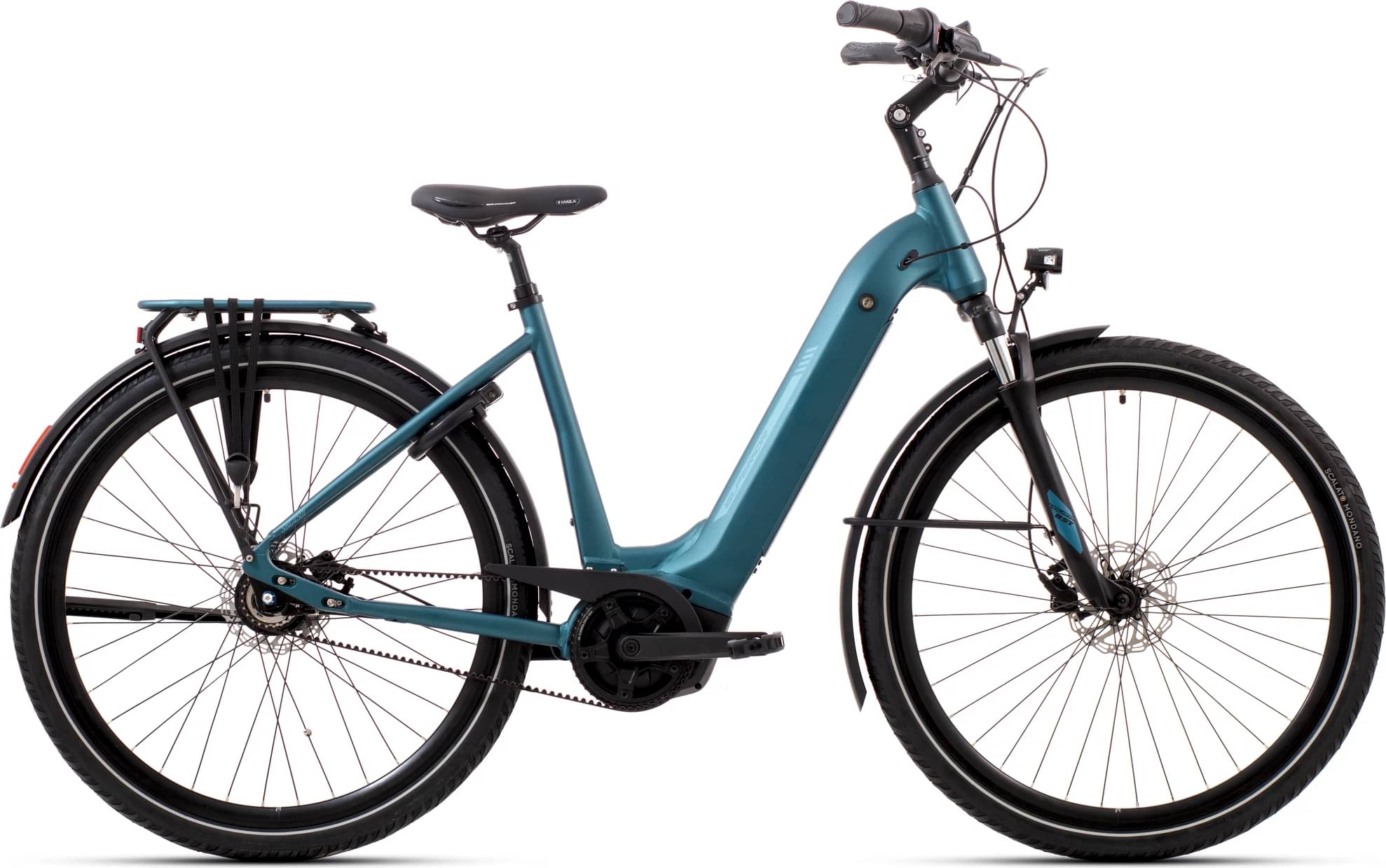

Superior SBC 450i L 2024
2024 E-bike
Estimate price |
4,012$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 50mm -
Fork RST VOLANT
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 65Nm mid-drive -
Battery BOSCH PowerTube, 500Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 161cm
MD
159cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 T6, e-Comfort Geometry, Bosch
Suspension Fork
RST Volant, 1-1/8", QR Type, 50mm travel
Drivetrain
Shift Levers
SHIMANO NEXUS SL-C6000-8, REVOSHIFT, 8-speed
Cassette
Gates CARBON DRIVE CDX, 24T
Crank
ONE Sport, Alloy
Bottom Bracket
Bosch, press-fit
Chain
Gates CARBON DRIVE CDX
Pedals
Marwi SP-823
Wheels
Front Hub
ONE, 36H, CL, M9x100mm, QR Type
Rear Hub
SHIMANO NEXUS SG-C6001-8D, 36H, CL, 135x187mm
Rims
STARS J19DC, Disc, 36H
Spokes
SAPIM Leader, Stainless Black
Tires
SCALATO MONDANO, 50-622, Reflective Tape
Brakes
Brakes
Alhonga HJ-OD07, hydraulic disc brake
Cockpit
Stem
ONE, Alloy, 31.8mm, Adjustable
Handlebar
ONE Alloy, 38mm rise, 31.8mm
Headset
FSA NO.10P, Semi-Cartrige, 1-1/8
Seat
Saddle
Selle Royal Nuvola
Seatpost
ONE, Alloy, Suspension, 30,9mm
Motor & Battery
Motor
BOSCH Performance Line, 65Nm
Battery
BOSCH PowerTube, 500Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.577 mm | 1.608 mm |
| Front Center | 649 mm | 655 mm | 661 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 80 mm | 76 mm |
| Stack | 604 mm | 626 mm | 648 mm |
| Reach | 390 mm | 397 mm | 403 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 72.5 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 440 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69.8 ° | 70.5 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1127 mm | 1133 mm | 1139 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 159 cm | 169 cm |
| Rider Max Height | 161 cm | 171 cm | 180 cm |
