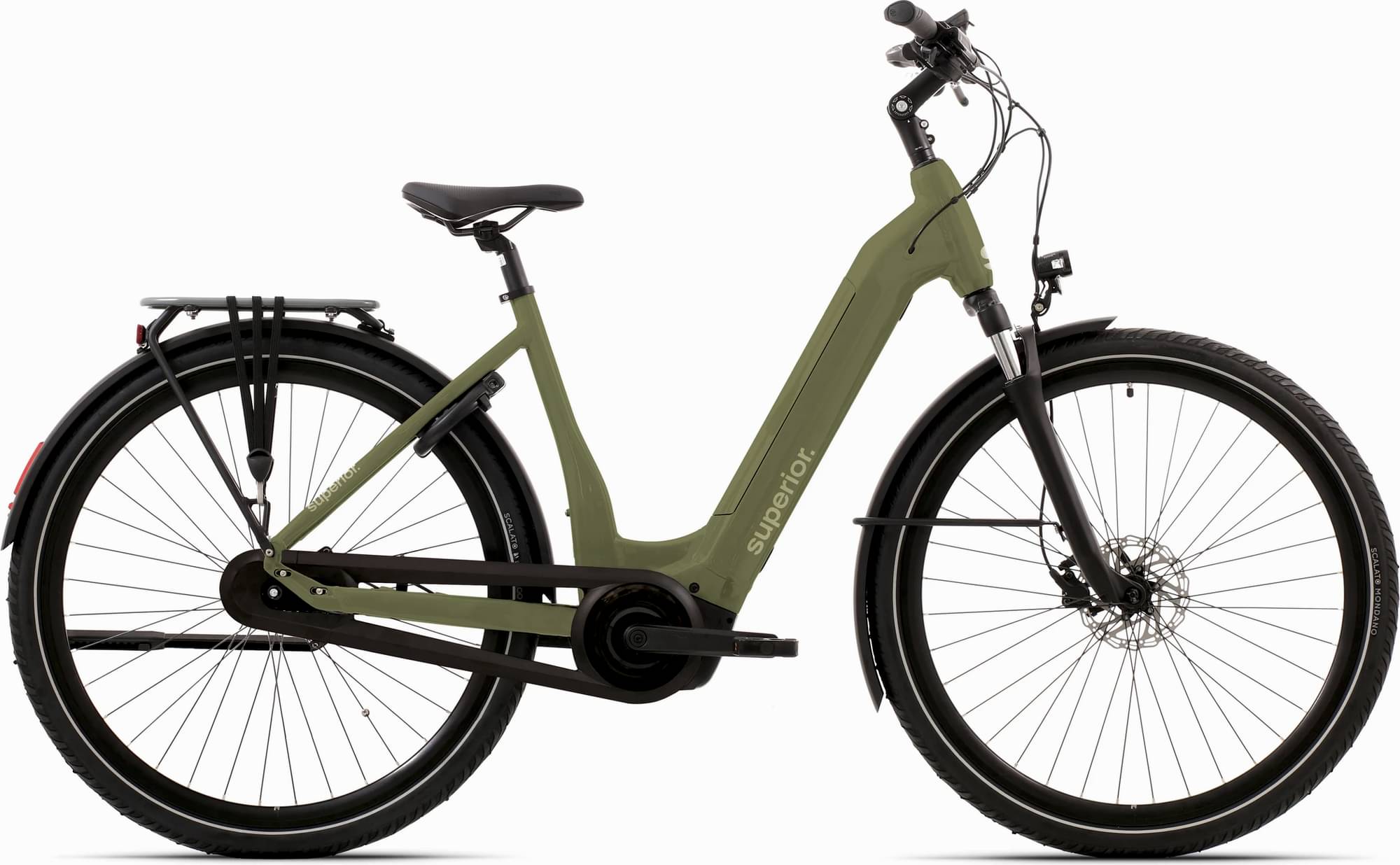

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 50mm -
Fork RST VOLANT
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 65Nm mid-drive -
Battery BOSCH PowerTube, 500Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 161cm
MD
159cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 T6, e-Comfort Geometry, Bosch G3
Suspension Fork
RST Volant, 1-1/8", QR Type, 50mm travel
Drivetrain
Shift Levers
SHIMANO NEXUS SL-C7000-5, REVOSHIFT, 5-speed
Cassette
SHIMANO NEXUS CS-C7000, Single Sprocket, 30T
Crank
ONE Sport, Alloy
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Pedals
Marwi SP-828
Wheels
Front Hub
SHIMANO HB-TX505, 36H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO NEXUS SG-C7000-5D, 36H, CL, 135x187mm
Rims
STARS J19DC, Disc, 36H
Spokes
SAPIM Leader, Stainless Black
Tires
SCALATO MONDANO, 50-622, Reflective Tape
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE, Alloy, 31.8mm, Adjustable
Handlebar
ONE Alloy, 20mm rise, 31.8mm
Headset
FSA NO.11G, Semi-Cartrige, 1-1/8
Seat
Saddle
Selle Royal Explora
Seatpost
ONE, Alloy, 30,9mm
Motor & Battery
Motor
BOSCH Performance Line, 65Nm
Battery
BOSCH PowerTube, 500Wh
Charger
BOSCH 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.612 mm | 1.602 mm | 1.544 mm |
| Front Center | 674 mm | 677 mm | 692 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 644 mm | 644 mm | 644 mm |
| Reach | 399.5 mm | 402 mm | 417 mm |
| Top Tube Length | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 76.3 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 185 mm | 185 mm | 185 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1163 mm | 1166 mm | 1181 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 159 cm | 169 cm |
| Rider Max Height | 161 cm | 171 cm | 180 cm |
