Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork DT Swiss F 232 ONE
-
Groupset XTR, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Mid Modulus, Advanced Race Geometry, Conical Head Tube, BB92, SH dropout, Thru Axle Boost 12x148mm, Inner cable routing
Suspension Fork
DT Swiss F232 ONE, Tapered, 15x110mm axle, 100mm travel
Drivetrain
Rear Derailleur
SHIMANO XTR RD-M9100, Shadow Plus Design
Shift Levers
SHIMANO XTR SL-M9100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO XT CS-M8100, 12-speed, 10-51T
Crank
Race Face NEXT SL, 34T
Bottom Bracket
Race Face BB92, PressFit, shell 41x92mm
Chain
SHIMANO XT CN-M8100
Wheels
Rims
DT Swiss XR 1700 SPLINE®, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Racing Ray Evo, SuperGround, TL-Easy, 29x2.25", ADDIX SpeedGrip
Brakes
Brakes
SHIMANO XTR M9100, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, -7°
Handlebar
ONE Race, Carbon, 760mm, 31.8mm
Headset
ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Terra Argo X5, Alloy
Seatpost
ONE Race, Carbon Ultimate, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.41 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 681 mm | 707 mm | 728 mm | 743 mm |
| Rake | 45 mm | 62 mm | 44 mm | 44 mm |
| Trail | 96 mm | 77 mm | 97 mm | 97 mm |
| Stack | 584 mm | 595 mm | 604 mm | 613 mm |
| Reach | 418 mm | 421 mm | 458 mm | 470 mm |
| Top Tube Length | 588 mm | 613 mm | 633 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1100 mm | 1126 mm | 1147 mm | 1162 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview

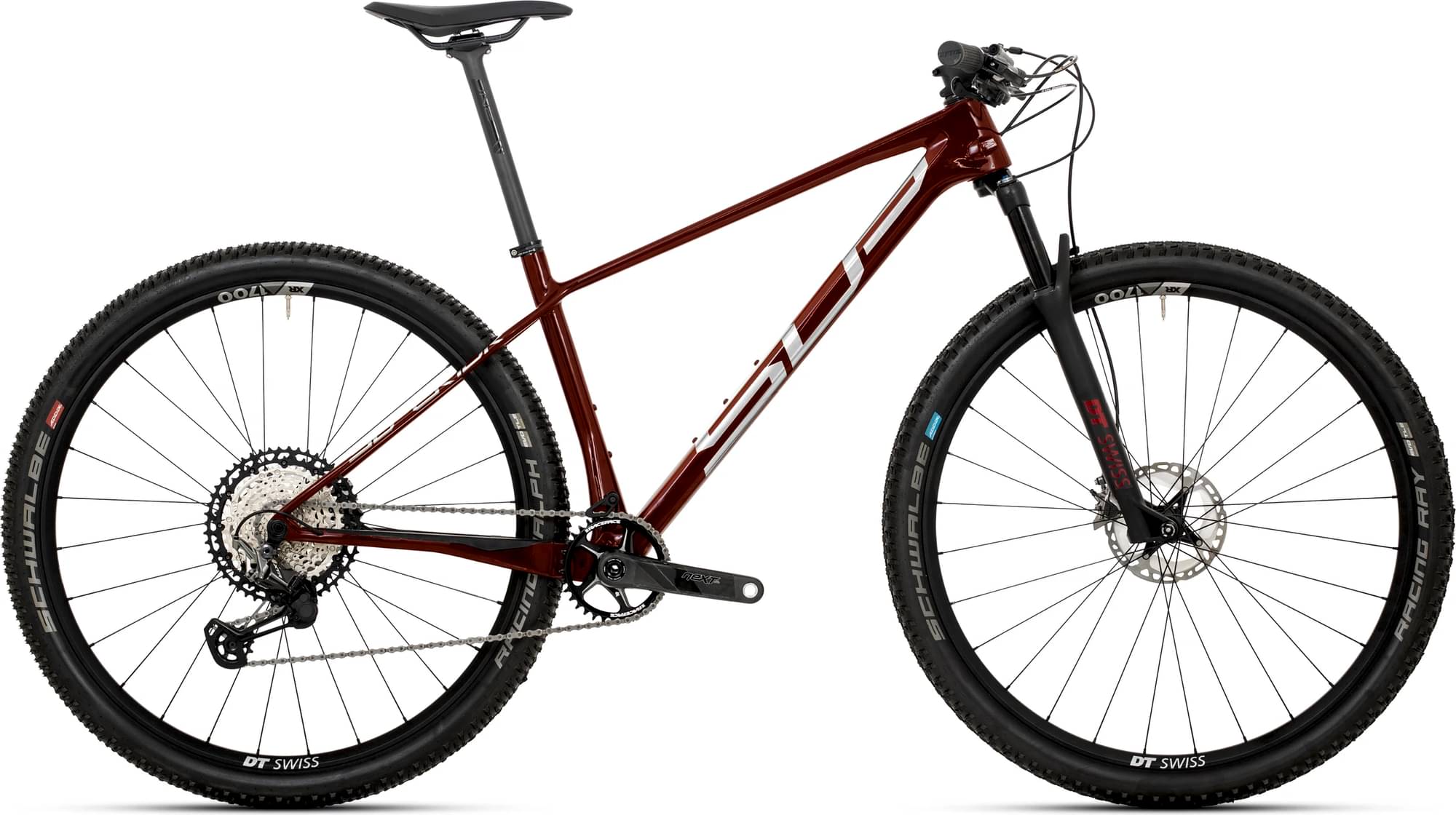

TEAM 29 Issue is part of the Superior Team Issue model. There are 4 bikes that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4976$. Comparing this to the average Crosscountry bike price, we see that the price is 161.21% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
TEAM 29 Issue components
Fork
This bike has the DT Swiss F 232 ONE fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The TEAM 29 Issue 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The TEAM 29 Issue has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
