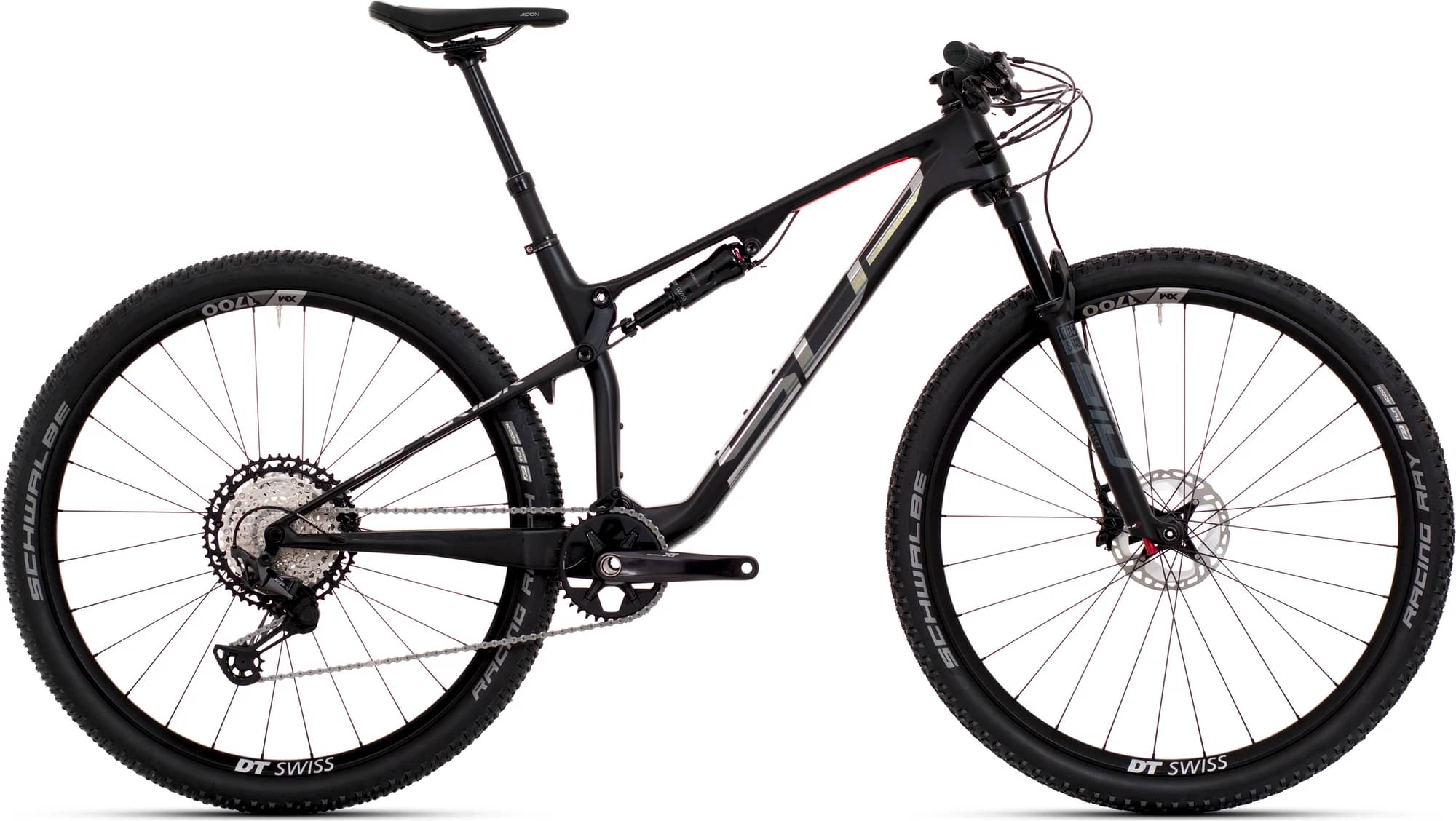

Superior TEAM XF 29 Elite 2024
2024 Mountain
Estimate price |
6,307$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-01, Carbon MTB Race Pro, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox SID RL R, Tapered, DebonAir, 15x110mm axle, 110mm travel
Rear Shock
DT Swiss R232 ONE, size 190x45mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100, Shadow Plus Design
Shift Levers
SHIMANO DEORE XT SL-M8100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO XT CS-M8100, 12-speed, 10-51T
Crank
SHIMANO XT FC-M8120, Hollowtech II, 36T
Bottom Bracket
SHIMANO BB-MT500PA, PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss XM 1700 SPLINE®, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Racing Ray Performance, TL-Ready, 29x2.25", ADDIX SpeedGrip
Brakes
Brakes
SHIMANO XT M8100, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, -7°
Handlebar
ONE Race, Alloy, 5mm rise, 31.8mm
Headset
ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Terra Aidon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.312 mm | 1.284 mm | 1.259 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 699 mm | 724 mm | 744 mm | 764 mm |
| Rake | 49 mm | 48 mm | 49 mm | 48 mm |
| Trail | 98 mm | 100 mm | 98 mm | 100 mm |
| Stack | 579 mm | 589 mm | 597 mm | 607 mm |
| Reach | 427 mm | 449 mm | 465 mm | 482 mm |
| Top Tube Length | 584 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 74.9 ° | 74.7 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1124 mm | 1149 mm | 1169 mm | 1189 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
