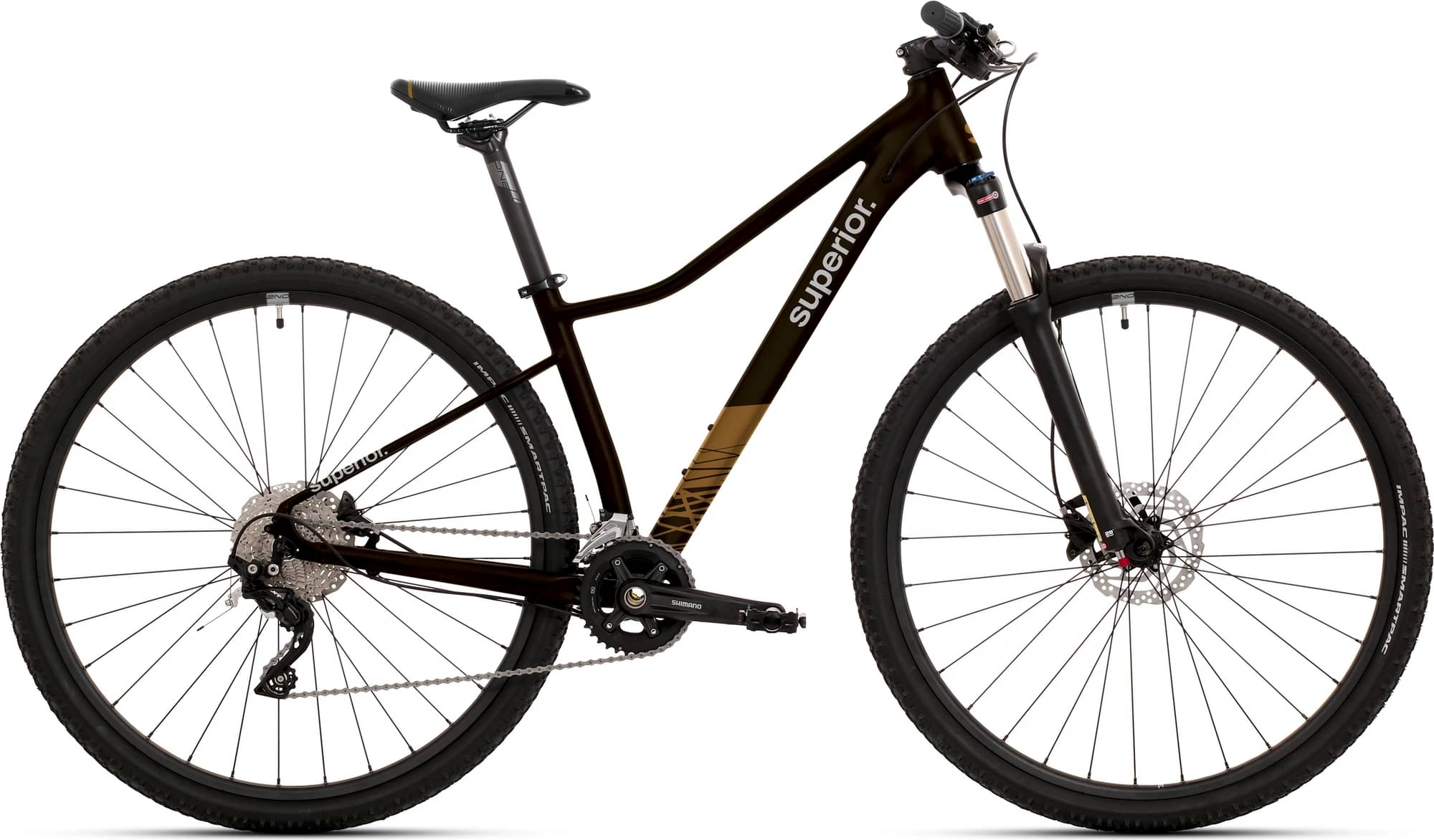

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 T6 Double Butted, Smooth Welding, Sport Geometry, Geometry, Integrated Cable Routing, BB BSA 73 mm, IDK dropout,
Suspension Fork
RST Blaze, 1-1/8", 100mm travel
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-M3100, Shadow Design
Front Derailleur
SHIMANO ALIVIO FD-M3120-M, Side Swing, Front Pull
Shift Levers
SHIMANO ALIVIO SL-M3100, RAPIDFIRE Plus, 2-speed
Cassette
SHIMANO CS-HG200, 9-speed, 11-36T
Crank
SHIMANO FC-MT101, 36-22T
Bottom Bracket
SHIMANO BB-UN101, 122.5mm, BSA, shell 73mm
Chain
KMC X9
Pedals
Marwi SP-610
Wheels
Front Hub
SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub
SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims
STARS J25D, Disc, 32H
Spokes
SAPIM Galvanized Black
Tires
CST Jack Rabbit, 29x2.25"
Brakes
Brakes
SHIMANO MT200, hydraulic disc brake
Cockpit
Stem
ONE Sport, Alloy, 31.8mm, -8°°
Handlebar
ONE Alloy, 12mm rise, 31.8mm
Headset
ONE CHH1505, 1-1/8“, ZS44/28.6 - ZS56/30
Seat
Saddle
Selle Royal Vivo
Seatpost
ONE Sport, Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.387 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 710 mm | 728 mm |
| Rake | 47 mm | 40 mm |
| Trail | 108 mm | 116 mm |
| Stack | 608 mm | 617 mm |
| Reach | 423 mm | 445 mm |
| Top Tube Length | 580 mm | 605 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm |
| Chainstay Length | 440 mm | 440 mm |
| Wheelbase | 1143 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
