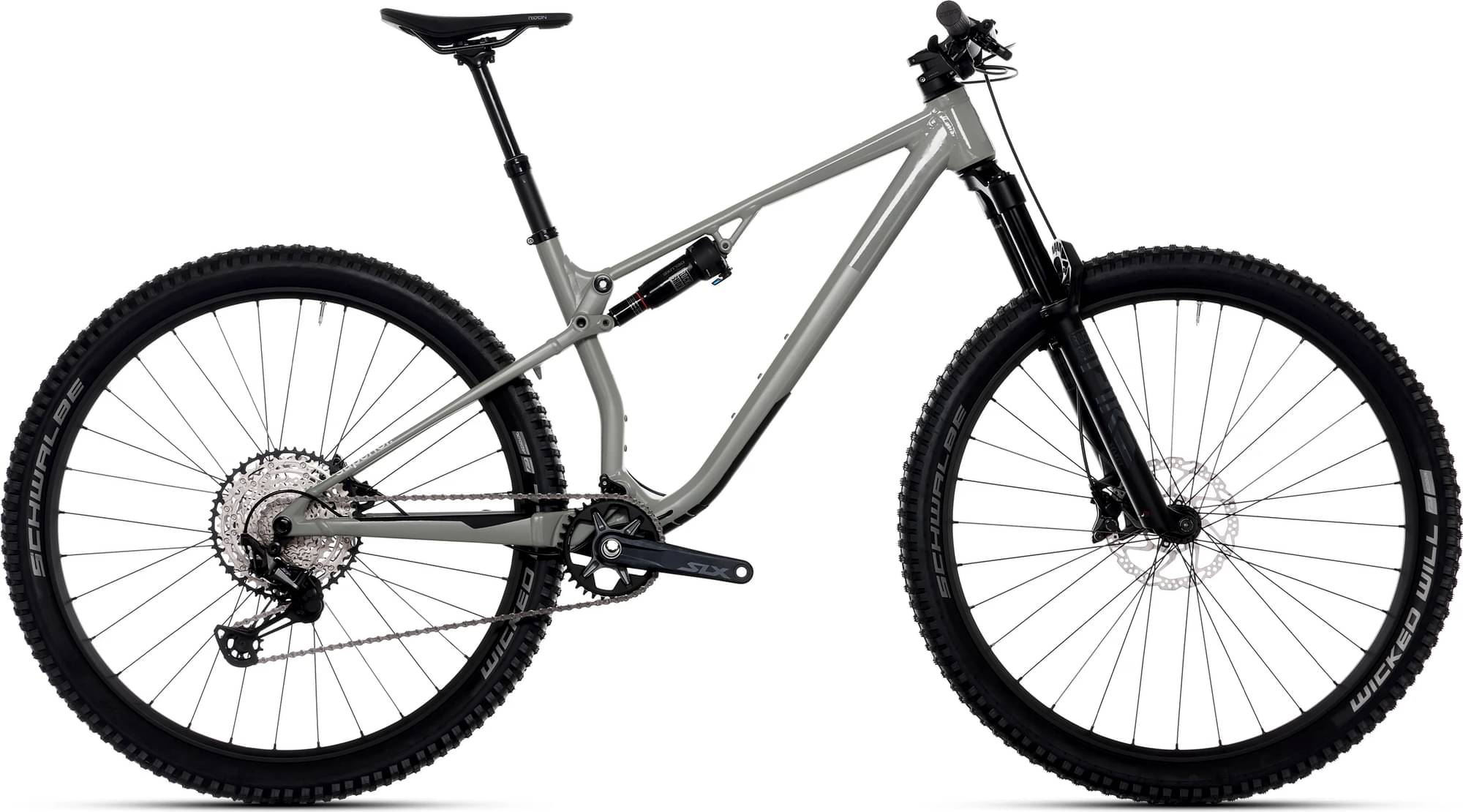

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-02-02, Alu X6 Ultimate MTB Trail SU-02.2, Advanced Geometry Travel 130 mm, Integrated Cable Routing, BB92, 3D alloy one pice link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready.
Suspension Fork
RockShox PIKE Select Charger RC, Tapered, DebonAir+, 15x110mm axle, 130mm travel
Rear Shock
RockShox Deluxe Select+ RT, size 190x45mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100, Shadow Plus Design
Shift Levers
SHIMANO SLX SL-M7100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO SLX CS-M7101, 12-speed, 10-51T
Crank
SHIMANO SLX FC-M7120, Hollowtech II, 34T
Bottom Bracket
SHIMANO BB-MT500PA, PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32H, CL, 15x110mm, THRU Type AXLE
Rear Hub
SHIMANO FH-TC500-MS-B, 32H, CL, 12X148mm, THRU Type AXLE
Rims
WTB, KOM LIGHT TEAM i30, Disc, 32H, Tubeless Ready
Spokes
SAPIM Leader, Stainless Black
Tires
Schwalbe Wicked Will Performance, 29x2.40", ADDIX
Brakes
Brakes
SHIMANO MT420, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE ICR, Alloy, 35mm, 0°
Handlebar
ONE Alloy, 12mm rise, 35mm
Headset
ACROS AZX-1052, ICR, ZS56/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Ridon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.33 mm | 1.299 mm | 1.269 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 732 mm | 759 mm | 781 mm | 802 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm |
| Trail | 118 mm | 118 mm | 119 mm | 119 mm |
| Stack | 590 mm | 600 mm | 609 mm | 618 mm |
| Reach | 428 mm | 451 mm | 469 mm | 487 mm |
| Top Tube Length | 583 mm | 609 mm | 629 mm | 649 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 368 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1160 mm | 1187 mm | 1209 mm | 1230 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
